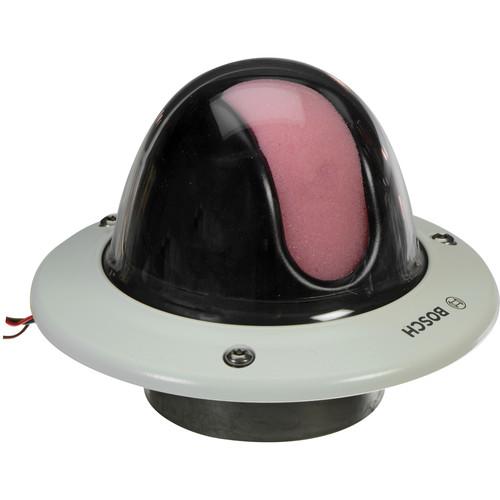

User Manual for Bosch FLEXIDOME AN 5000 VDN-5085-V321 720 TVL Outdoor Dome Camera with 2.8-10.5mm Lens & Heater Click to enlarge the picture
Contents of the user manual for the Bosch FLEXIDOME AN 5000 VDN-5085-V321 720
- Product category: Wired Analog & HD Cameras Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Wired Analog & HD Cameras
|
User manual for the Bosch FLEXIDOME AN 5000 VDN-5085-V321 720 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The white FLEXIDOME AN 5000 VDN-5085-V321 720 TVL Outdoor Dome Camera from Bosch uses a 960H 1/3" DS CCD image sensor to transmit 720 TVL resolution video. An IR cut filter enables day and night functionality. The image sensor, an HDR engine, and advanced image processing technology combine to produce detailed images with accurate color reproduction under harsh lighting conditions. The camera's 2.8-10.5mm varifocal lens delivers a 101.8 to 27.4° horizontal field of view.
This camera is equipped with a built-in heater. It is housed in an IP66-, NEMA 4X-, and IK10-rated aluminum enclosure that is suitable for outdoor use in areas at risk of vandalism. - Suitable for foyer, lobby, warehouse, loading docks, correctional facilities, airport, and stadium applications
- True day and night functionality thanks to IR cut filter
- Lens wizard ensures that a proper back focus is maintained at all times
- Camera pivots 360° horizontally and 90° vertically
- Peak white invert reduces glare from highlight areas
- Bilinx coaxial control interface
- Six preset programmable modes
- Video motion detection for up to four areas
- Alarm output (VMD or Bilinx)
- Privacy masking for up to fifteen areas
- Cable compensation for up to 3000'
- Polycarbonate dome with UV blocking anti-scratch coating
- Mounting options include surface, 4S, wall, corner, and suspended ceiling
- EMC, UL, and FCC certified
UPC: 800549716000 In the Box Bosch FLEXIDOME AN 5000 VDN-5085-V321 720 TVL Outdoor Dome Camera with 2.8-10.5mm Lens & Heater (NTSC) Plastic Bag with Mounting Hardware 2 x Black Rubber Grommets for Surface Mount Box Lens Adjustment Cap Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch FLEXIDOME AN 5000 VDN-5085-V321 720 TVL Outdoor Dome Camera with 2.8-10.5mm Lens & Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch 960H Specs | Image Sensor | 960H, 1/3" DS CCD, WDR Dual Shutter | | Resolution | 720 TVL | | System | NTSC | | Total Pixels (H x V) | 1020 x 508 | | Effective Pixels (H x V) | 976 x 494 | | Focal Length | 2.8-10.5mm | | Varifocal | Manual Zoom and Focus Adjustment | | Iris Control | Automatic Iris Control | | Field of View | Horizontal: 101.8 to 27.4°
Vertical: 73.7 to 20.6° | | Angle Adjustments | Horizontal: 360°
Vertical: 90°
Rotation: ±90° | | Sensitivity | At 3200K: Scene Reflectivity 89%, Transmission 68%, f/1.2 | | Color | Color:
Full Video (100 IRE): 0.7 Lux (0.0651 fc)
Usable Picture (50 IRE): 0.13 Lux (0.0121 fc)
Usable Picture (30 IRE): 0.06 Lux (0.00558 fc)
Color + SensUp 10x:
Full Video (100 IRE): 0.07 lux (0.00651 fc)
Usable Picture (50 IRE): 0.013 Lux (0.00121 fc)
Usable Picture (30 IRE): 0.006 Lux (0.000558 fc) | | Monochrome | Monochrome:
Full Video (100 IRE): 0.3 Lux (0.0279 fc)
Usable Picture (50 IRE): 0.06 Lux (0.00558 fc)
Usable Picture (30 IRE): 0.03 Lux (0.00279 fc)
Monochrome SensUp 10x:
Full Video (100 IRE): 0.03 Lux (0.00279 fc)
Usable Picture (50 IRE): 0.006 Lux (0.00558 fc)
Usable Picture (30 IRE): 0.003 Lux (0.000279 fc) | | S/N Ratio | >54 dB | | Video Output | Composite Video: 1 V p-p, 75 Ohms | | Synchronization | Internal, Line Lock | | Shutter | Auto (1/100,000 to 1/60) Selectable, Fixed, Flickerless, Default | | Sensitivity Up | Adjustable from Off up to 10x | | Day/Night | Color, Mono, Auto | | Dynamic Engine | XF-Dynamic, HDR, Smart BLC | | Dynamic Range | 94 dB (WDR) | | DNR | 2D-DNR, 3D-DNR | | Automatic Gain Control | AGC On/Off (0 to 40 dB) Selectable | | BLC | Smart BLC: On/Off | | Peak White Invert | On/Off | | White Balance | ATW Indoor, ATW Outdoor, ATW Hold and Manual | | Contrast Enhancement | Low, Medium, High | | Sharpness | Sharpness Enhancement Level Selectable | | Alarm Output | VMD or Bilinx | | Cable Compensation | Up to 3000' / 1000 m Coax without External Amplifiers (Automatic Setup in Combination with Bilinx Coaxial Communication) | | Camera ID | 17-Character Editable String, Position Selectable | | Test Pattern Generator | Color Bar, Raster, Impulse, Cross Impulse, Cross Hatch | | Modes | 6 Preset Programmable Modes | | Remote Control | Bilinx Coaxial Bidirectional Communication | | Video Motion Detection | Up to 4 Areas, Fully Programmable | | Privacy Masking | Up to 15 Independent Areas, Fully Programmable | | Zoom | E-Zoom: Up to 16x
Optical: 3.75x | | Digital Image Stabilizer | On/Off | | Controls | OSD with Soft Key Operation | | OSD Languages | English, French, German, Spanish, Portuguese, Simplified Chinese, and Russian | | Rated Voltage | 12 VDC / 24 VAC | | Rated Frequency | 60 Hz | | Power Consumption | 12 VDC: 360 mA, 700 mA with Heater
24 VAC: 330 mA, 650 mA with Heater | | Operating Temperature | With Heater Off: -22 to 131°F / -30 to 55°C
With Heater On: -58 to 131°F / -50 to 55°C | | Operating Humidity | 5 to 93% RH | | Storage Temperature | -67 to 158°F / -55 to 70°C | | Storage Humidity | Up to 98% RH | | IP Rating | IP66 | | NEMA Rating | NEMA 4X | | IK Rating | IK10 | | Mounting | Flush on Hollow Surface with 3 Screws in a 4S Electrical Box | | Dome | Clear Polycarbonate with UV Blocking Anti-Scratch Coating | | Trim Ring | Aluminum | | Dimensions | 6.22 x 3.35" / 158 x 85 mm | | Weight | 1.65 lb / 750 g | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 9.1 x 8.6 x 7.7" |
