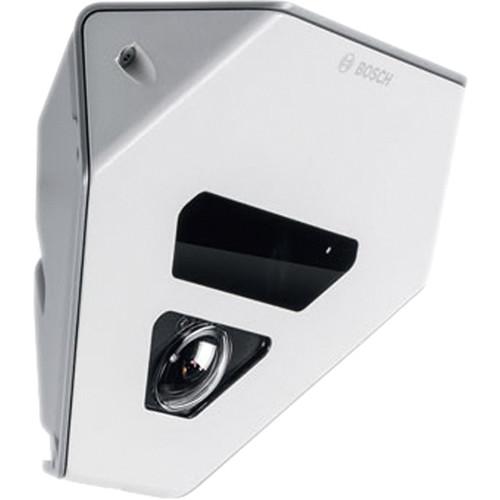

Product description The FLEXIDOME corner 9000 VCN-9095-F121 720 TVL Corner-Mount Camera from Bosch uses a 960H 1/3" CCD image sensor to transmit 720 TVL resolution video. Three IR LEDs provide up to 30' of night vision. The image sensor, IR LEDs, and advanced image processing technology combine to enable round-the-clock surveillance under variable lighting conditions. The camera's 2mm fixed lens delivers a 139° horizontal field of view. A built-in OSD control panel enables adjustment of camera settings.
This camera features a corner-mount, no-grip design that makes it impossible for individuals to hang from. It is housed in an IP65- and IK10-rated enclosure for protection from water and vandalism. - Suitable for waiting rooms, hospital recovery rooms, elevators, psychiatric care rooms, and areas at risk of vandalism
- Corner-mount, no-grip design
- True day and night functionality thanks to IR cut filter
- Provides complete coverage of a 15 x 15' room
- 45° angle hides all wiring for a neat installation
- Peak white invert reduces glare from highlight areas
- Multi-language OSD control panel enables adjustment of camera settings
- Bilinx coaxial bidirectional communication
- Six preset programmable modes
- Video motion detection for up to four areas
- Privacy masking for up to fifteen areas
- CE, FCC, UL, cUL, C-tick, CB, and VCCI certified
UPC: 800549704199 In the Box Bosch FLEXIDOME corner 9000 VCN-9095-F121 720 TVL Corner-Mount Camera (NTSC) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch FLEXIDOME corner 9000 VCN-9095-F121 720 TVL Corner-Mount Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch VCN-9095-F121 Specs | Image Sensor | 960H, 1/3" DS CCD, WDR Dual Shutter | | Resolution | 720 TVL | | System | NTSC | | Total Pixels (H x V) | 1028 x 508 | | Effective Pixels (H x V) | 976 x 494 | | Lens | 2mm Fixed | | Lens Mount | Board Mounted | | Aperture | f/2.0 | | Field of View | Horizontal: 139°
Vertical: 104° | | Sensitivity | At 3200K: Scene Reflectivity 89%, f/1.2
Full Video (100 IRE)
Color: 0.5 Lux (0.0465 fc)
Color + SensUp 10x: 0.05 Lux (0.00465 fc)
Monochrome: 0.2 Lux (0.0186 fc)
Monochrome SensUp 10x: 0.02 Lux (0.00186 fc)
Monochrome + IR On: 0 Lux
Usable Picture (50 IRE)
Color: 0.09 Lux (0.0837 fc)
Color + SensUp 10x: 0.009 Lux (0.000837 fc)
Monochrome: 0.04 Lux (0.00372 fc)
Monochrome SensUp 10x: 0.004 Lux (0.000372 fc)
Monochrome + IR On: 0 Lux
Usable Picture (30 IRE)
Color: 0.04 Lux (0.00372 fc)
Color + SensUp 10x: 0.004 Lux (0.000372 fc)
Monochrome: 0.02 Lux (0.00186 fc)
Monochrome SensUp 10x: 0.002 Lux (0.000186 fc)
Monochrome + IR On: 0 Lux | | IR Range | 30' / 9 m | | Number of IR LEDs | 3 | | IR Wavelength | 940 nm | | S/N Ratio | >50 dB | | Video Output | Composite Video: 1 V p-p, 75 Ohms | | Synchronization | Internal, Line Lock | | Shutter | Auto (1/100,000 to 1/60 [1/50]) Selectable, Fixed, Flickerless, Default | | Sensitivity Up | Adjustable from Off up to 10x | | True Day/Night | Color, Mono, Auto | | Dynamic Engine | XF-Dynamic, HDR, Smart BLC | | Dynamic Range | 94 dB (WDR) | | DNR | 2D-DNR, 3D-DNR | | Automatic Gain Control | AGC On/Off (0 to 40 dB) Selectable | | BLC | Smart BLC: On/Off | | Peak White Invert | On/Off | | White Balance | ATW Indoor, ATW Outdoor, ATW Hold and Manual | | Contrast Enhancement | Low, Medium, High | | Sharpness | Sharpness Enhancement Level Selectable | | Camera ID | 17 Character Editable String, Position Selectable | | Test Pattern Generator | Color Bar, Raster, Impulse, Cross Impulse, Cross Hatch | | Modes | 6 Preset Programmable Modes | | Remote Control | Bilinx Coaxial Bidirectional Communication | | Zoom | E-Zoom up to 16x | | Digital Image Stabilizer | On/Off | | OSD Languages | English, French, German, Spanish, Portuguese, Simplified Chinese, and Russian | | Analog Video Output | BNC Connector (1 V p-p 75 Ohms CVBS) | | Alarm Input | 0 to 3.3 VDC, Low Active or High Active | | Alarm Output | 60 VDC or 60 VAC Maximum
Load Current: 1 A Maximum | | Input Voltage | 12 VDC / 24 VAC | | Power Consumption | 12 VDC: 6.48 W Maximum
24 VAC: 12.24 VA Maximum | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Humidity | 20 to 90% RH (Non-Condensing) | | IP Rating | IP65 | | IK Rating | IK10 | | Dimensions | 9.45 x 5.75 x 6.65" / 240 x 146 x 169 mm | | Weight | 4.06 lb / 1.84 kg | | | | Package Weight | 5.6 lb | | Box Dimensions (LxWxH) | 13.0 x 10.5 x 8.5" |
