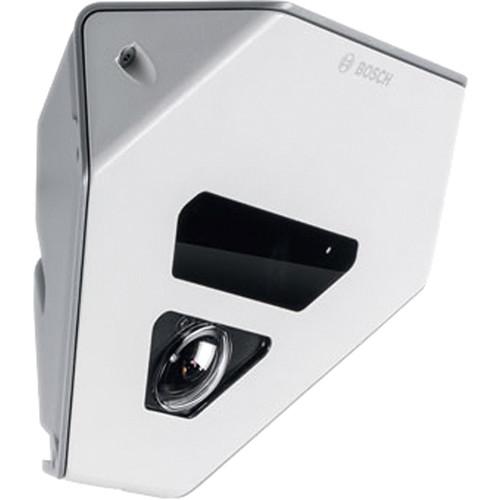

Product description The FLEXIDOME IP Corner 9000 NCN-90022-F1 1.5MP PoE Day/Night IR Camera with 2mm Fixed Lens from Bosch is a vandal-resistant, corner-mount camera with a no-grip, anchor-free design. The high-resolution 1440 x 1080p images at 30 ips and integrated three IR LEDs allow 24/7 effective networked surveillance in high-risk, vandal-prone applications under varied ambient lighting conditions. The 2mm wide-angle lens with 1/2.7” sensor allows you to monitor a small 15 x 15’ room, including the floor beneath the camera.This true day/night camera incorporates mechanical filter technology for capturing color images during daytime and B/W images at night, while maintaining sharp focus under virtually all lighting conditions. The camera also offers a good spectral response in the near infrared field for remarkable active-infrared night vision. With the intensity adjustable infrared LEDs, it eliminates foreground hotspots and underexposed backgrounds.The camera uses intelligent Dynamic Noise Reduction (iDNR) that actively analyzes the contents of a scene and reduces noise artifacts accordingly. The low-noise image and H.264 compression technology offer reduced-bandwidth streams that retain a high image quality and smooth motion. With area-based encoding, it cleverly optimizes the detail-to-bandwidth ratio. Compression parameters for up to eight user-definable regions can be set. This allows uninteresting regions to be highly compressed, leaving more bandwidth for important parts of the scene.The multi-streaming feature delivers various H.264 streams together with an M-JPEG stream for bandwidth-efficient viewing and recording as well as integration with third-party video management systems. The remote E-PTZ (Electronic Pan, Tilt, and Zoom) controls allow you to select specific areas of the parent image. These regions produce separate streams for remote viewing and recording that allows the operator to separately monitor specific areas while still retaining situational awareness.The camera can be flush mounted into any corner of a room and hides all wiring for a neat installation. It is IK10 rated for protection against vandalism. The sharp 45° angled design ensures there are no anchor points, making it difficult to grip or hang from the camera enabling use in environments with at-risk individuals. - Corner-Mount, Vandal-Resistant Design
-
- Flush-mountable into the corner of a room for protection against attempts to destroy, detach, or disable the camera
- IK10-rated body
- Sharp 45° angle hides all wiring and delivers complete coverage of a 15 x 15’ room, including the view below the camera itself
- No anchor points for safety in environments with at-risk individuals
- IP65 rated for water resistance
- True Day/Night Switching
-
- Mechanical filter technology for capturing vivid daytime color and night-time B&W images
- Remarkable spectral response in the near infrared field for active-infrared night vision
- IR Illumination
-
- Features three 940nm LED illuminators for covert night vision up to 30’ (9m)
- Intensity-adjustable LEDs eliminate foreground hotspots and underexposed backgrounds
- iDNR Technology
-
- Actively analyzes the contents of a scene and reduces noise artifacts accordingly
- Low-noise image and H.264compression technology provide clear images while reducing bandwidth and storage requirements
- Reduced bandwidth streams that retain a high image quality and smooth motion
- Optimizes the detail-to-bandwidth ratio with area-based encoding
- Compression parameters for up to eight user-definable regions can be set
- Allows uninteresting regions to be highly compressed, leaving more bandwidth for important parts of the scene
- 1440 x 1080p Resolution with Multiple Streams
-
- Captures 1440 x 1080p resolution images at 30 images per second (ips)
- Multi streaming delivers various H.264 streams together with an M-JPEG stream
- These streams facilitate bandwidth-efficient viewing and recording as well as simple integration with third-party video management systems
- Regions of Interest and e-PTZ
-
- Two Regions of Interest (ROI) can be user defined
- Remote electronic pan, tilt, and zoom (e-PTZ) controls allow you to select specific areas of the parent image
- Each region of interest produces separate streams for remote viewing and recording
- These streams allow the operator to separately monitor the most interesting part of a scene while still retaining situational awareness
- Easy Installation
-
- No focus or pan/tilt adjustments are required as the camera, with its 2mm wide angle fixed lens provides complete coverage of a 15 x 15’ (4.5 x 4.5m) room
- Power for the camera can be supplied via a Power over Ethernet (IEEE 802.3af) compliant network cable connection
- A single cable connection is required to view, power, and control the camera
- PoE makes installation easier and more cost-effective, as the camera does not require a local power source
- The camera can be simultaneously connected to both PoE and +12VDC/24VAC supplies (not included
- Uninterruptible power supplies (UPS) can also be used for continuous operation, even during a power failure
- For trouble-free network cabling, the camera supports Auto-MDIX
- Two-Way Audio Support and Audio Alarm
-
- Two-way audio support allows the operator to communicate via an external audio line input and output
- Audio detection can be used to generate an alarm if needed
- Tamper and Motion Detection
-
- Supports a wide range of configuration options for alarms signaling camera tampering
- Built-in algorithm for detecting movement in the video can also be used for alarm signaling
- Edge Recording
-
- Supports edge recording with a microSDXC card slot that supports storage up 2TB
- A microSD card (not included) can be used for local alarm recording
- Pre-alarm recording in RAM reduces recording bandwidth on the network, or, if microSD card recording is used, extends the effective life of the storage medium
- Cloud-Based Services
-
- Supports time-based or alarm-based JPEG posting to four different accounts
- These accounts can address FTP servers or cloud-based storage facilities (for example, Dropbox)
- Video clips or JPEG images can also be exported to these accounts
- Alarms can be set up to trigger an e-mail or SMS notification so you are always aware of abnormal events
- Access Security
-
- Supports password protection with three levels and 802.1x authentication
- Secure Web browser access via HTTPS with the SSL certificate stored in the camera
- Video and audio communication channels can be independently AES encrypted with 128-bit keys by installing the optional encryption site license
- Complete Viewing Software
-
- There are many ways to access the camera features: using a Web browser, with supplied Bosch Video Client, or with the iPad App
- The Bosch Video Client PC surveillance software offers a user-friendly interface to support easy installation and configuration
- Provides easy live viewing of multiple cameras, playback, forensic search, and export
- Video Security App
-
- iPad app developed to fully utilize Bosch’s dynamic transcoding features
- Enables anywhere access to HD surveillance images even over low-bandwidth connections
- With the separately available Bosch transcoder, this app is configured to give you complete control of your camera
- System Integration
-
- Works seamlessly with a wide range of security software and recording solutions from Bosch and other industry providers
- Through ONVIF conformance, the open availability of Bosch video software development kits and a team dedicated to special integration and support projects, it is easy to manage Bosch video products within your system design
- Applications
-
- Waiting rooms
- Hospital recovery rooms
- Psychiatric care rooms
- Vandal-prone areas
UPC: 800549704175 In the Box Bosch FLEXIDOME IP Corner 9000 NCN-90022-F1 1.5MP PoE Day/Night IR Vandal-Resistant Camera with 2mm Fixed Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch FLEXIDOME IP Corner 9000 NCN-90022-F1 1.5MP PoE Day Night IR Vandal-Resistant Camera with 2mm Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch NCN-90022-F1 Specs | | | Sensor Type | 1/2.7" CMOS | | Pixels | 1440 x 1080 | | Sensitivity | 3200 K, reflectivity 89%, 30 IRE, F2.0: 0.61 lux (color), 0.01 lux (IR) | | Dynamic Range | 69 dB | | True Day/Night Control | Auto, Color, Monochrome | | Shutter Speed | Automatic Electronic Shutter (AES)
Fixed (1/30 [1/25] to 1/15,000) | | Video Resolution | SD: VGA, QVGA | | Video Compression | H.264 MP (Main Profile); M-JPEG | | Frame Rate | 30 ips (M-JPEG frame rate can vary depending on system loading) | | Video Setting | Video watermarking, Alarm mode stamping, Image mirror, Image flip, Contrast, Saturation, Brightness, White balance, Sharpness level, Contrast enhancement, Backlight Compensation, Privacy Mask, Motion detection, Tamper alarm, Upright mode, Pixel counter | | | | IR LED | 3 x high efficiency LEDs, 940 nm | | IR Distance | 30' (9 m) | | | | Lens Type | Fixed 2.0 mm, F2.0 | | Lens Mount | Board mounted | | Field of View | Horizontal: 121°
Vertical: 91° | | | | Analog Video Output | 2.5 mm jack connector (1 Vpp CVBS, NTSC) for installation only | | Alarm Input | 0 to 3.3 VDC, low active | | Alarm Output | 60 VDC or 60 VAC (maximum), load current: 1 A (maximum) | | | | Audio Input | Line in 3.5 mm mono connector 0.707 Vrms, impedance 20 kΩ (typical) | | Audio Output | Line out 3.5 mm mono connector 0.707 Vrms, impedance 10 kΩ (typical) | | Audio Communication | Two-way, full duplex | | Audio Compression Format | AAC, G.711, L16 (live and recording) | | | | Local Storage | Internal RAM: 10 sec pre-alarm recording | | Memory Card Slot | Supports up to 32 GB microSDHC / 2 TB microSDXC card (SD card of Class 6 or higher is recommended for HD recording) | | Recording | Continuous recording, ring recording, alarm/events/schedule recording | | | | Unit Configuration | Via Web browser or PC surveillance software | | | | Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, SNTP, SNMP (V1, MIB‑II), 802.1x, DNS, DNSv6, DDNS, SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, Digest Authentication | | Encryption | TLS 1.0, SSL, DES, 3DES, AES (optional) | | Ethernet | 10/100 Base-T, auto-sensing, half/full duplex | | Ethernet Connector | RJ45 | | Connectivity | ONVIF Profile S, Auto-MDIX | | | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Storage Temperature | -22 to 140°F (-30 to 60°C) | | Humidity | 20 to 90% relative humidity (non-condensing) | | Input Voltage | 12 VDC / 24 VAC or Power-over-Ethernet (48 VDC nominal) | | Power Consumption | 8.4 W maximum (12 VDC, PoE)
10.8 VA maximum (24 VAC) | | PoE | IEEE 802.3af (802.3at Type 1)
Power Level: Class 3 | | | | Standards | IEC 62471, EN 60950-1, UL 60950-1, CAN/CSA-C22.2 NO. 60950-1, EN 50130-4, EN 50130-5, FCC Part15 Subpart B, Class B, EMC directive 2004/108/EC, EN 55022/24 class B, VCCI J55022 V2 / V3, AS/NZS CISPR 22 (equal to CISPR 22), ICES-003 class B, EN 50121-4, EN 50132-5-2; IEC 62676-2-3 | | Certification | Product: CE, FCC, UL, cUL, C-tick, CB, VCCI
Region: Europe (CE), USA (UL) | | Ingress Protection Rating | IP65 | | Impact Protection | IK10 | | | | Dimensions (W x H x D) | 9.45 x 5.75 x 6.65" (24.0 x 14.6 x 16.9 cm) | | Weight | 4.06 lb (1.84 kg) approximately | | | | Package Weight | 5.75 lb | | Box Dimensions (LxWxH) | 13.1 x 10.6 x 8.0" |
