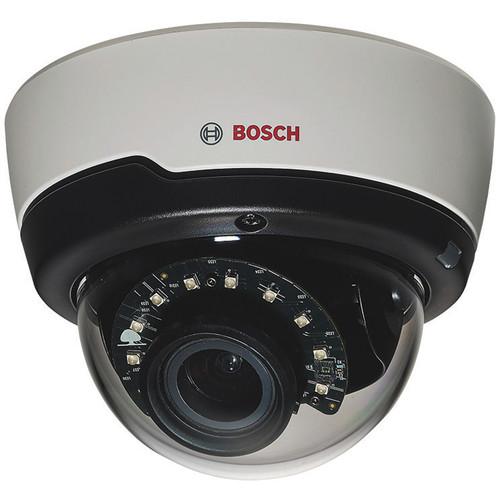

User Manual for Bosch FLEXIDOME IP indoor 5000 HD PoE IP Dome Camera with Varifocal 3 to 10mm Lens Click to enlarge the picture
Contents of the user manual for the Bosch FLEXIDOME IP indoor 5000 HD
- Product category: Wired IP Cameras Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Wired IP Cameras
|
User manual for the Bosch FLEXIDOME IP indoor 5000 HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The FLEXIDOME IP indoor 5000 HD D/N PoE IP Dome Camera from Bosch features a 1/2.7” CMOS sensor that allows it to capture images up to 1952 x 1092. The 2MP HD indoor dome camera features a 3 to 10mm lens With true day/night capability, this camera is capable of capturing color images in illumination as low as 0.24 lux and in b/w up to 0.05 lux.The varifocal lens allows you to choose the coverage area to best suit your application. Using the proprietary pan/tilt/rotation mechanism, installers can select the exact field of view. The automatic zoom/focus lens wizard makes it easy for an installer to accurately zoom and focus the camera for both day and night operation. The wizard is activated from the PC or from the on-board camera push button making it easy to choose the workflow that suits best. - Intelligent Dynamic Noise Reduction
- The camera uses Intelligent Dynamic Noise Reduction which actively analyzes the contents of a scene and reduces noise artifacts accordingly. The low-noise image and the efficient H.264 compression technology provide clear images while reducing bandwidth and storage. This results in reduced-bandwidth streams that still retain a high image quality and smooth motion. The camera provides the most usable image possible by cleverly optimizing the detail-to-bandwidth ratio.
- Area-Based Encoding
- Area-based encoding also reduces bandwidth usage. Compression parameters for up to eight user-definable regions can be set. This allows uninteresting regions to be highly compressed, leaving more bandwidth for important parts of the scene.
- Multiple Streams
- The multi-streaming feature delivers various H.264 streams together with an M‑JPEG stream. These streams facilitate bandwidth-efficient viewing and recording as well as integration with third-party video management systems. Depending on the resolution and frame rate selected for the first stream, the second stream provides a copy of the first stream or a lower resolution stream. The third stream uses the I-frames of the first stream for recording; the fourth stream shows a JPEG image at a maximum of 10 Mb/s.
- Regions of Interest and E-PTZ
- Regions of Interest (ROI) can be user defined. The remote E-PTZ (Electronic Pan, Tilt and Zoom) controls allow you to select specific areas of the parent image. These regions produce separate streams for remote viewing and recording. These streams, together with the main stream, allow the operator to separately monitor the most interesting part of a scene while still retaining situational awareness.
- Built-in Microphone, Two-Way Audio and Audio Alarm
- The camera has a built-in microphone to allow operators to listen in on the monitored area. Two-way audio allows the operator to communicate with visitors or intruders via an external audio line input and output. Audio detection can be used to generate an alarm if needed. If required by local laws, the microphone can be permanently blocked via a secure license key. 1
Please Note: A speaker is required for two-way audio communication (sold separately). close - Tamper and Motion Detection
- A wide range of configuration options is available for alarms signaling camera tampering. A built-in algorithm for detecting movement in the video can also be used for alarm signaling. Alarms can be set up to trigger an e-mail or SMS notification so you are always aware of abnormal events.
- Storage Management
- Recording management can be controlled by the Bosch Video Recording Manager (VRM) or the camera can use iSCSI targets directly without any recording software.
- Edge Recording
- The microSD card slot supports up to 2TB of storage capacity. A microSD card can be used for local alarm recording. Pre-alarm recording in RAM reduces recording bandwidth on the network, or - if microSD card recording is used - extends the effective life of the storage medium. 2
Please Note: Memory card sold separately. close - Cloud-Based Services
- The camera supports time-based or alarm-based JPEG posting to four different accounts. These accounts can address FTP servers or cloud-based storage facilities. Video clips or JPEG images can also be exported to these accounts.
- Easy Installation
- Power for the camera can be supplied via a Power-over-Ethernet compliant network cable connection. With this configuration, only a single cable connection is required to view, power, and control the camera. Using PoE makes installation easier and more cost effective, as cameras do not require a local power source. The camera can also be supplied with power from +12 VDC power supplies. The camera also supports Auto-MDIX that allows the use of straight or crossover cables.
- True Day/Night Switching
- The camera incorporates mechanical filter technology for vivid daytime color and exceptional night-time imaging while maintaining sharp focus under all lighting conditions.
- Hybrid Mode
- An analog video output enables the camera to operate in hybrid mode. This mode provides simultaneous high resolution HD video streaming and an analog video output via an SMB connector. The hybrid functionality offers an easy migration path from legacy CCTV to a modern IP-based system.
- Access Security
- Password protection with three levels and 802.1x authentication is supported. To secure Web browser access, use HTTPS with a SSL certificate stored in the camera. The video and audio communication channels can be independently AES encrypted with 128-bit keys by installing the optional encryption site license.
- Complete Viewing Software
- The camera's features are accessible via a web browser, with the Bosch Video Management System, with the free-of-charge Bosch Video Client or Video Security Client, with the video security mobile app, or via third-party software.
- Video Security App
- The Bosch video security mobile App allows access to HD surveillance images allowing you to view live images from any location. The app is designed to offer control over the camera, from panning and tilting to zoom and focus functions. This app, together with the separately available Bosch transcoder, will allow you to fully utilize the dynamic transcoding features so you can play back images even over low-bandwidth connections.
- System Integration
- The camera conforms to the ONVIF Profile S specification. Compliance with this standard guarantees interoperability between network video products regardless of manufacturer. Third-party integrators can easily access the internal feature set of the camera for integration into large projects.
UPC: 800549749893 In the Box Bosch FLEXIDOME IP indoor 5000 HD PoE IP Dome Camera with Varifocal 3 to 10mm Lens Screw Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch FLEXIDOME IP indoor 5000 HD PoE IP Dome Camera with Varifocal 3 to 10mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch NIN-51022-V3 Specs | | | Sensor Type | 1/2.7" CMOS | | Total Pixels | 1952 x 1092 (2 MP) | | Sensitivity | At 3200K, reflectivity 89%, F1.3, 30IRE
Color: 0.24 lux
Mono: 0.05 lux | | Dynamic Range | 76 dB | | Video Resolution | 1080p HD: 1920 X 1080
720p HD: 1280 x 720
D1 4:3 (cropped): 704 x 480
SD Upright (cropped): 400 x 720
480p SD Encoding: 704 x 480
Displayed: 854 x 480
432p SD: 768 x 432
288p SD: 512 x 288
240p SD Encoding: 352 x 240
Displayed: 432 x 240
144p SD: 256 x 144 | | | | Day/Night | Color, Monochrome, Auto | | Adjustable | Contrast, Saturation, Brightness | | White Balance | 4 automatic modes, manual mode and measure | | Shutter | Automatic Electronic Shutter (AES); Fixed (1/12 to 1/15000) selectable; Default shutter | | Backlight Compensation | On/off | | Noise Reduction | Intelligent Dynamic Noise Reduction with separate temporal and spatial adjustments | | Contrast Enhancement | On/off | | Sharpness | Sharpness enhancement level selectable | | Defog | Intelligent Defog automatically adjusts parameters for best picture in foggy or misty scenes (switchable) | | Privacy Masking | Eight independent areas, fully programmable | | Video Motion Analysis | MOTION+ | | Other Functions | Image mirror, Image flip, Pixel counter, Video watermarking, Display stamping, Scene modes, Location | | | | Lens Type | Varifocal 3 to 10 mm, DC Iris F1.5 - 360, IR corrected | | Lens Mount | Board mounted | | Adjustment | Manual zoom/focus | | Iris Control | Automatic iris control | | Day/Night | Switched mechanical IR filter | | Field of view (FOV) | Horizontal: 36 to 117°
Vertical: 20 to 61° | | | | Analog Video Out | SMB connector, CVBS (PAL/NTSC), 1 Vpp, 75 Ω | | Audio Line In | 0.707 VRMS max, 10 kΩ typical, jack connector | | Audio Line Out | 0.707 VRMS at 16 Ω typical, jack connector | | Audio Input | Built-in microphone (can be permanently disabled) | | Alarm Input | 1 input | | Activation | Short or 5 VDC activation | | Alarm Output | 1 output | | Alarm Output | 30 VDC, maximum load 0.5 A | | Ethernet | RJ-45 | | | | Audio Streaming | Standard: G.711, 8 kHz sampling rate
L16, 16 kHz sampling rate
AAC-LC, 48 kb/s at 16 kHz sampling rate
AAC-LC, 80 kb/s at 16 kHz sampling rate | | Signal-to-Noise Ratio | >50 dB | | Streaming Method | Full-duplex / half duplex | | Video Streaming | Video compression: H.264 (MP); MJPEG | | Streaming | Multiple configurable streams in H.264 and MJPEG, configurable frame rate and bandwidth, Regions of Interest (ROI) | | Overall IP Delay | Minimum 120 ms, Maximum 340 ms | | GOP Structure | IP, IBP, IBBP | | Interval | 1 to 25 (30) ips | | Region | Eight independent areas for setting encoder quality to optimize bit-rate | | | | RAM | 10 sec pre-alarm recording | | Memory Card Slot | Supports up to 32 GB microSDHC / 2 TB microSDXC card. (An SD card of Class 6 or higher is recommended for HD recording) | | Recording | Continuous recording, ring recording, alarm/ events/schedule recording | | | | Software Features | Unit discovery: IP Helper
Unit configuration: Via web browser or Configuration Manager
Firmware update: Remotely programmable
Software viewing: Web browser; Video Security Client; Video Security App; Bosch Video Management System; Bosch Video Client; or third party software | | | | Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIBII), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication | | Encryption | TLS 1.0, SSL, DES, 3DES | | Ethernet | 10/100 Base-T, auto-sensing, half/full duplex | | Connectivity | Auto-MDIX | | Interoperability | ONVIF Profile S; GB/T 28181 | | | | Input Voltage | +12 VDC or Power-over-Ethernet (48 VDC nominal) | | Power Consumption | 3.8 W maximum | | PoE | IEEE 802.3af (802.3at Type 1)
Power level: Class 2 | | | | HD | Complies with the SMPTE 274M-2008 Standard in
Resolution: 1920 x 1080
Scan: Progressive
Color representation: complies with ITU-R BT.709
Aspect ratio: 16:9
Frame rate: 25 and 30 frames/s
Complies with the SMPTE 296M-2001 Standard in
Resolution: 1280 x 720
Scan: Progressive
Color representation: complies with ITU-R BT.709
Aspect ratio: 16:9
Frame rate: 25 and 30 fps | | Standards | EN 60950-1, UL 60950-1, CAN/CSA-C22.2 NO. 60950-1-03, EN 50130-4, EN 50130-5, Class II (indoor in general, fixed equipment), FCC Part15 Subpart B, Class B, EMC directive 2004/108/EC, EN 55022 class B, EN 55024, AS/NZS CISPR 22 (equal to CISPR 22), ICES-003 Class B, VCCI J55022 V2/V3, EN 50121-4 | | ONVIF | EN 50132-5-2; IEC 62676-2-3 | | Certifications | CE, FCC, UL, cUL, RCM, CB, VCCI | | | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Humidity | 20 to 90% relative humidity (non-condensing) | | | | 3-Axis Adjustment | Pan/Tilt/Rotation: 350/130/330° | | Color | RAL 9004, RAL 9010 | | Dimensions (Ø x H) | 5.3 x 4.0" (13.5 x 10.2 cm) | | Weight | Approximately 0.9 lb (0.5 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 8.3 x 7.0 x 5.5" |
