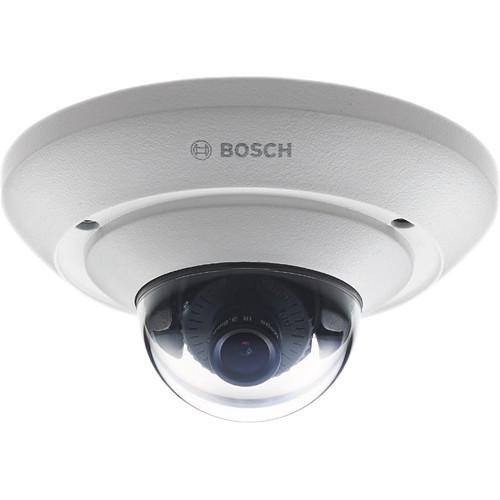

User Manual for Bosch FLEXIDOME IP micro 5000 HD NUC-51051-F2 5MP Vandal-Resistant Day Night Outdoor Dome Camera with 2.5mm Fixed Lens Click to enlarge the picture
Contents of the user manual for the Bosch FLEXIDOME IP micro 5000 HD
- Product category: Wired IP Cameras Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Wired IP Cameras
|
User manual for the Bosch FLEXIDOME IP micro 5000 HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The Bosch FLEXIDOME IP micro 5000 HD NUC-51051-F2 5MP Vandal-Resistant Day/Night Outdoor Dome Camera with 2.5mm Fixed Lens is a professional surveillance camera that provides high-quality 5MP images for demanding security and surveillance network requirements. The cast-aluminum housing, polycarbonate window, and hardened inner-liner can withstand the equivalent of 120 lb of force (IK08).The camera utilizes intelligent Dynamic Noise Reduction (iDNR) which actively analyzes the contents of a scene and reduces noise artifacts accordingly. The low-noise image and the efficient H.264 compression technology provide clear images while reducing bandwidth and storage requirements. The camera is protected against water and dust to IP66 standards. - iDNR Technology
- The camera uses intelligent Dynamic Noise Reduction (iDNR) which actively analyzes the contents of a scene and reduces noise artifacts. The low-noise image and efficient H.264 compression technology provide clear images while reducing bandwidth and storage requirements and retaining a high image quality and smooth motion. The camera provides the most usable image possible by cleverly optimizing the detail-to-bandwidth ratio. Area-based encoding is another feature which reduces bandwidth. Compression parameters for up to eight user-definable regions can be set. This allows uninteresting regions to be highly compressed, leaving more bandwidth for important parts of the scene.
- Compact and Stylish, Vandal-Resistant Design
- Developed for indoor or outdoor use, the compact aesthetic design is suitable for installations where housing size and appearance are important. The cast-aluminum housing, polycarbonate window, and hardened inner-liner can withstand the equivalent of 120 lb of force (IK08). The camera is protected against water and dust to IP66 (NEMA Type 4X) standards. Mounting options are numerous, including surface, wall, and suspended-ceiling mounting (mounting accessories not included).
- Multiple Streams
- The camera records in 5MP resolution at 12 images per second (ips). The multi-streaming feature delivers various H.264 streams together with an M-JPEG stream. These streams facilitate bandwidth-efficient viewing and recording as well as integration with 3rd-party video-management systems.
- Regions of Interest and E-PTZ
- Regions of Interest (ROI) can be user defined. The remote E-PTZ (Electronic Pan, Tilt, and Zoom) controls allow you to select specific areas of the parent image. These regions produce separate streams for remote viewing and recording. These streams, together with the main stream, allow the operator to separately monitor the most interesting part of a scene while still retaining situational awareness.
- Tamper and Motion Detection
- A wide range of configuration options are available for alarms signaling camera tampering. A built-in algorithm for detecting movement in the video can also be used for alarm signaling.
- Edge Recording
- The microSD card slot supports up to 2TB of storage capacity. A microSD card (not included) can be used for local alarm recording. Pre-alarm recording in RAM reduces recording bandwidth on the network; however, if microSD card recording is used, it extends the effective life of the storage medium.
- Cloud-Based Services
- The camera supports time-based or alarm-based JPEG posting to 4 different accounts. These accounts can address FTP servers or cloud-based storage facilities (for example, Dropbox). Video clips or JPEG images can also be exported to these accounts. Alarms can be set up to trigger an e-mail or SMS notification so you are always aware of abnormal events.
- Easy Installation
- Power for the camera can be supplied via a Power over Ethernet compliant network cable connection. With this configuration, only a single cable connection is required to view, power, and control the camera. Using PoE makes installation easier and more cost-effective, as cameras do not require a local power source. The camera can also be supplied with power from +12VDC power supplies. To increase system reliability, the camera can be simultaneously connected to both PoE and +12VDC supplies. Additionally, uninterruptible power supplies (UPS) can be used, which will allow continuous operation, even during a power failure. For trouble free network cabling, the cameras support Auto-MDIX.
- Area-Based Encoding
- Area-based encoding is another feature which reduces bandwidth. Compression parameters for up to eight user-definable regions can be set. This allows uninteresting regions to be highly compressed, leaving more bandwidth for important parts of the scene.
- 3-Axis Adjustment
- The 3-axis adjustment allows easy installation on a wall or a ceiling with a precise field of view.
- Access Security
- Password protection with three levels and 802.1x authentication is supported. To secure Web browser access, use HTTPS with the SSL certificate stored in the camera. The video and audio communication channels can be independently AES encrypted with 128-bit keys by installing the optional encryption site license (not included).
- Complete Viewing Software
- There are many ways to access the camera's video features: using a Web browser, with the supplied Bosch Video Client, or with the video security mobile App. The Bosch Video Client PC surveillance software (included) offers a user-friendly interface to support easy installation and configuration. It provides easy live viewing of multiple cameras, playback, forensic search, and export.
- Video Security App
- The Bosch video security mobile App enables anywhere access to HD surveillance images, allowing you to view live images from virtually any location. The App is designed to give you complete control of all your cameras, from panning and tilting to zoom and focus functions. This App, together with the separately available Bosch transcoder, will allow you to fully utilize Bosch's dynamic transcoding features so you can play back images even over low-bandwidth connections.
- System Integration
- The camera conforms to the ONVIF (Open Network Video Interface Forum) Profile S specification. This guarantees interoperability between network video products regardless of manufacturer. For trouble-free network cabling, the camera supports Auto-MDIX which allows the use of straight or cross-over cables. Third-party integrators can easily access the internal feature set of the camera for integration into large projects.
UPC: 800549731034 In the Box Bosch FLEXIDOME IP micro 5000 HD NUC-51051-F2 5MP Vandal-Resistant Day/Night Outdoor Dome Camera with 2.5mm Fixed Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch FLEXIDOME IP micro 5000 HD NUC-51051-F2 5MP Vandal-Resistant Day Night Outdoor Dome Camera with 2.5mm Fixed Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch 5000 HD Specs | | | Sensor Type | 1/3.2" CMOS | | Pixels | 2592 x 1944 | | Sensitivity | 3200 K, reflectivity 89%, 30IRE, 0.8 lux | | Dynamic Range | 65 dB | | True Day/Night Control | Auto, Color, Monochrome | | Shutter Speed | Automatic Electronic Shutter (AES)
Fixed (1/12 to 1/15000 sec) | | Video Resolution | 5 MP, 480p | | Aspect Ratio | 4:3 | | Video Compression | H.264 MP (Main Profile); M-JPEG | | Frame Rate | 12 ips (M-JPEG frame rate can vary depending on system loading) | | Video Setting | Video watermarking, Alarm mode stamping, Image mirror, Image flip, Contrast, Saturation, Brightness, White balance, Sharpness level, Contrast enhancement, Backlight compensation, Privacy mask, Motion detection, Tamper alarm, Upright mode, Pixel counter | | | | Lens Type | 2.5 mm fixed, F2.8 | | Lens Mount | Board mounted | | Viewing Angle (H/V) | 105 x 79° | | | | Analog Video Output | 2.5 mm jack for installation only (NTSC) | | | | Local Storage | 10 sec pre-alarm recording | | Memory Card Slot | Supports up to 32 GB microSDHC / 2 TB microSDXC card (SD card of Class 6 or higher is recommended for HD recording) | | Recording | Continuous recording, ring recording, alarm/events/schedule recording | | | | Unit Configuration | Via Web browser or Configuration Manager | | Firmware Updates | Remotely programmable | | | | Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/ RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, SNTP, SNMP (V1, MIB‑II), 802.1x, DNS, DNSv6, DDNS, SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, Digest Authentication | | Encryption | TLS 1.0, SSL, DES, 3DES, AES (optional) | | Ethernet | 10/100 Base-T, auto-sensing, half/full duplex | | Ethernet Connector | RJ45 | | PoE | IEEE 802.3af (802.3at Type 1)
Power level: Class 1 | | Connectivity | ONVIF Profile S, Auto-MDIX | | | | Operating Temperature | -22 to +122°F (-30 to +50°C) | | Storage Temperature | -22 to +158°F (-30 to +70°C) | | Humidity | 0 to 95% relative humidity (non-condensing) | | | | Input Voltage | +12 VDC, +24 VAC, or Power-over-Ethernet (48 VDC nominal) | | Power Consumption | 3.84 W maximum | | | | Standards | EN 60950-1, UL 60950-1, CAN/CSA-C22.2 NO. 60950-1-07, UL 60950-22 Outdoor UL, EN 50130-4; EN 50130-5, FCC Part15 Subpart B, Class B, EMC directive 2004/108/EC, EN 55022 class B EN 55024, VCCI J55022 V2/V3, AS/NZS CISPR 22 (equal to CISPR 22), ICES-003 Class B, EN 50121-4, EN 50121-3-2, CE: Automotive environment, EN 55025, EN 50155, ISO16750-3, EN 50132-5-2; IEC 62676-2-3 | | Certifications | CE, FCC, UL, cUL, C-tick, CB, VCCI | | Ingress Protection Rating | IP66 | | Impact Protection | IK08 | | | | Color | RAL 9017, RAL 9003 | | Pan/Tilt | 3-axis adjustment
±175º/±70º/±180º | | Dimensions (Ø x H) | 4.33 x 2.17" (110.00 x 55.00 mm) | | Weight | Approximately 11.28 oz (320.00 g) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 6.6 x 5.7 x 4.3" |
