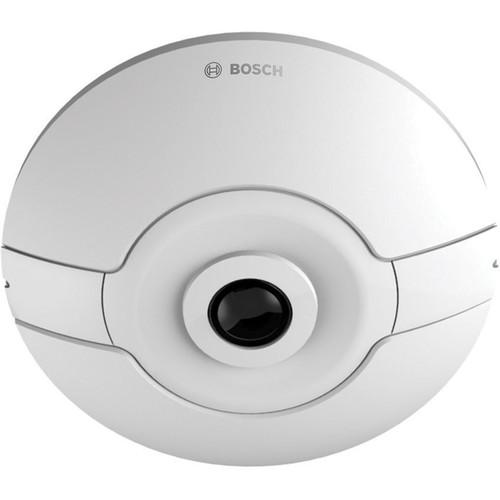

User Manual for Bosch Flexidome IP Panoramic 7000 12MP Day Night Low Profile Camera with 360° Lens Click to enlarge the picture
Contents of the user manual for the Bosch Flexidome IP Panoramic 7000 12MP
- Product category: Wired IP Cameras Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Wired IP Cameras
|
User manual for the Bosch Flexidome IP Panoramic 7000 12MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description Small and discreet, the Flexidome IP Panoramic 7000 12MP Day/Night Low Profile Camera from Bosch can be used to unobtrusively record video and audio in an indoor area. Featuring a 12MP image sensor and a 1.6mm lens, the camera provides full situational coverage by offering a panoramic view of the area. Video footage can be viewed in up to 30 fps and stored to an installed SD card. The camera records footage in circular format, but dewarping settings can be enabled for viewing distortion-free images in a horizontal rectangular setting. The camera features video settings such as backlight compensation and adjustable balance for ensuring you have the clearest imaging possible. The camera can be set for motion sensitivity and allows for 8 privacy masked areas. The camera naturally works to preserve bitrate and bandwidth and will adjust according to areas of high noise for performance optimization. ONVIF compliant, the camera can be used with various viewing systems and is designed for easy and quick installation. - Panoramic Surveillance
-
- Covers full area for complete situational awareness
- Offers intelligent movement tracking for following a suspect throughout the area without having to jump to different cameras
- Use predefined alarms for motion and/or audio detection for triggering operators and security officers
- Dewarping
-
- Images are captured in circular format and dewarped into distortion-free rectangular formats for easier viewing
- 3-channel recording at 12.5 fps in various views
- Electronic PTZ and Regions of Interest
-
- Electronic PTZ allows camera to discreetly adjust and follow suspects
- Set sensitive areas as Regions of Interest and set alarm triggers whenever movement or audio is detected
- Focused Recording for Performance Optimization
-
- Motion+ analyzes motion patterns for avoiding false motion triggers and offers improved image quality for footage with motion detection
- Intelligent dynamic noise reduction identifies noise levels in areas of high movement and lowers the bitrate in quieter areas for bitrate optimization
- Area based encoding compresses bandwidth in quieter areas and preserved bandwidth for areas of interest
- Built-In Microphone and Audio Capability
-
- Built-in microphone allows operators to listen to the monitored area
- Audio detection can be set to trigger an alarm for the operator
- Microphone can be permanently disabled, if desired
- Storage Management
-
- Footage can be controlled via the Bosch Video Recording Manager or using iSCSI targets
- A memory card can be installed to the camera for recording pre-alarm triggers
- Alarms can be saved to address FTP servers or cloud-based servers
- Viewing Software
-
- Standard web browser
- Bosch Video Management System
- Bosch Video Client
- Bosch Video Security Client
- Third-party software
- Security
-
- Pre-designed alarm triggers can notify operator via email or SMS
- Password protected access security
UPC: 800549746885 In the Box Bosch Flexidome IP Panoramic 7000 12MP Day/Night Low Profile Camera with 360° Lens - Identification Labels
- Mounting Ring
- Installation and Mounting Hardware
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch Flexidome IP Panoramic 7000 12MP Day Night Low Profile Camera with 360° Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch NIN-70122-F0 Specs | | | Image Sensor | 1/2.3" CMOS, 12 MP | | Effective Pixels (H x V) | 2640 x 2640 (7 MP) | | Frame Rate | 30 fps | | Lens | 1.6mm fixed-focus lens, F2.8 | | Lens Mount | Board | | Iris Control | Fixed | | Illumination | Color: 0.55 lux
B&W: 0.18 lux | | Field of View | 180° x 180° at a distance of 0.3' / 0.1 m (minimum) | | S/N Ratio | >50 dB | | Shutter Speed | Automatic electronic shutter, fixed selectable | | | | Compression | MJPEG, H.264 | | Encoding Rate | 1 to 25 intervals per second | | Overall IP Delay | 120 ms to 340 ms | | | | Wide Dynamic Range | 92 dB | | Day/Night | Auto, color, monochrome | | Backlight Compensation | Off, on, intelligent auto exposure | | White Balance | 2500 to 10,000 K,4 automatic modes, manual mode, hold mode | | Noise Reduction | Intelligent dynamic noise reduction | | Privacy Masking | Up to 8 zones | | De-Fog | Yes | | | | Microphone | Integrated (can be permanently disabled) | | Audio Streaming | G.711, 8 kHz sampling rate
L16, 16 kHz sampling rate
AAC-LC, 48 kbps at 16 kHz sampling rate
AAC-LC, 80 kbps at 16 kHz sampling rate | | | | Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/ RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, NTP (SNTP), SNMP (V1, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, noip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication | | Encryption | TLS 1.0, SSL, DES, 3DES, AES (optional) | | Network Connectivity | Auto-MDIX | | Ethernet | 10/100 Base-T, auto-sensing, half/full duplex | | | | Storage Slots | Class 6 or higher 32 GB SDHC, 2 TB SDXC card | | Port | 1 x RJ45 for supporting PoE via IEEE 802.3af. 802.3at Type 1 | | Power Input | 48 VDC, PoE | | Consumption | 140 mA | | Operating Temperature & Humidity | -4 to 104°F / -20 to 40°C, 20 to 93% RH | | Storage Temperature & Humidity | -4 to 140°F / -20 to 60°C, less than 98% RH | | Dimensions | 6.2 x 1.3" / 15.8 x 3.3 cm | | Weight | 0.98 lb / 0.44 kg | | | | Package Weight | 2.015 lb | | Box Dimensions (LxWxH) | 8.0 x 7.9 x 4.0" |
