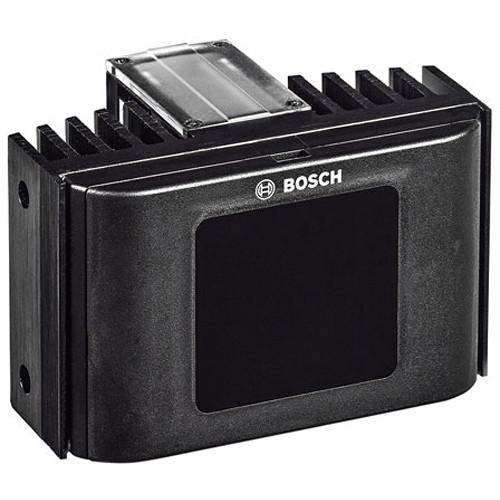

Product description The IR Illuminator 5000 SR from Bosch has 850nm IR LEDs to provide near-invisible light for security cameras, allowing IR cameras to capture clear images in complete darkness. A set of interchangeable diffuser lenses is included and allows you to select beam patterns with a specified field of view to fit your needs. The self-cleaning lens coating helps keep the illuminator functioning properly with minimal maintenance. The illuminator is housed in an IP66-rated enclosure, making it suitable for outdoor use. It can be powered directly from a 12-32 VDC or 24 VAC power supply (available separately). - Thermal management with pressure equalization valve prevents thermal expansion and pressure cycling
- Integrated adjustable photocell sensitivity (20 to 70 lux)
- Adjustable IR intensity (10 to 100%)
- Interchangeable beam pattern diffusers match field of view to camera
- Telemetry input and photocell output for external switching
- Self-cleaning lens coating technology
UPC: 800549815413 In the Box Bosch IR Illuminator 5000 SR (850nm) Interchangeable Diffuser Lens Set Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch IR Illuminator 5000 SR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch IIR-50850-SR Specs | | | Wavelength | 850nm | | IR Control | Adjustable IR intensity (10 to 100%) | | Day/Night Switching | Photocell, sensitivity adjustable (20 to 70 lux) | | Field of View | 10, 20, 30, 60, 80, and 95° | | Operating Distance | 510' (156 m) at 10°
348' (106 m) at 20°
255' (78 m) at 30°
162' (49 m) at 60°
116' (35 m) at 80°
81' (25 m) at 95°
Actual illumination distance achieved is dependent on camera and lens used (both available separately) | | Maximum HFOV | 89' (27 m) at 10°
123' (37 m) at 20°
137' (42 m) at 30°
187' (57 m) at 60°
195' (59 m) at 80°
177' (54 m) at 95° | | | | Standards | CE-EMC:
EN 61547 (Lighting-Immunity)
EN 55015 (Lighting-Emission)
EN 62493( Lighting EMF)
EN 50130-4 (Alarm EMC)
Safety:
CE-LVD
EN-60598-1 (Luminaires-General)
EN-60598-2-1 (Luminaires)
LED:
EN 62471 Risk group 2 (LED safety)
Environmental:
IEC / EN 60529 IP66
IEC / EN 62262 IK09
EN50130-5 Class IV (Alarm-environmental)
EN 50581 RoHS
USA cULus:
UL 2108 Low Voltage Lighting Systems
UL 8750 Light Emitting Diode (LED) equipment for use in lighting systems
CSA C22.2 No. 250.0-08 Luminaires
FCC, Class B
AUS:
RCM AS / NZS CISPR 22 Class B | | Region | Europe: CE
USA: UL | | | | Operating Temperature | -58 to 122°F (-50 to 50°C) | | IP Rating | IP66 | | | | Supply | 12-32 VDC or 24 VAC ±10% | | Consumption | 13 W | | | | Housing | Robust anodized aluminum extrusion | | Front Window | Polycarbonate high transmittance (vandal-resistant) with self-cleaning technology | | Mount | Black powder coated stainless steel U-bracket (adjustable with M6 socket-head wrench) | | Cable Length | 9' (3 m) | | Dimensions | 4.33 x 2.76 x 2.99" (11 x 7 x 7.6 cm)
Bracket: 4.33 x 4.92 x 1.38" (11 x 12.5 x 3.5 cm) | | Weight | 1.6 lb (0.75 kg)
Bracket: 0.44 lb (0.2 kg) | | | | Package Weight | 3.745 lb | | Box Dimensions (LxWxH) | 8.95 x 8.3 x 6.65" |
