Product description Featuring built-in PIR and microwave detection sensors and advanced signal processing, the ISC-BDL2-WP6G Blue Line Gen2 Pet-Friendly TriTech Motion Detector from Bosch provides accurate motion detection within its wide, 94° field of view. It covers a 20 x 20' area and features a pet immunity function, which allows it to distinguish between humans' and pets' motion. It can negate signals caused by one or two pets, up to 100 lb each.
First Step Processing (FSP) technology analyzes motion, limiting false alarms. For increased reliability, the detector's sensitivity is automatically adjusted based on signal amplitude, polarity, slope, and timing. The detector also adjusts its sensitivity to compensate for weather, ensuring accurate operation in varying weather conditions. Installation is quick with its self-locking enclosure and built-in bubble level. - PIR motion sensor with microwave detection technologies

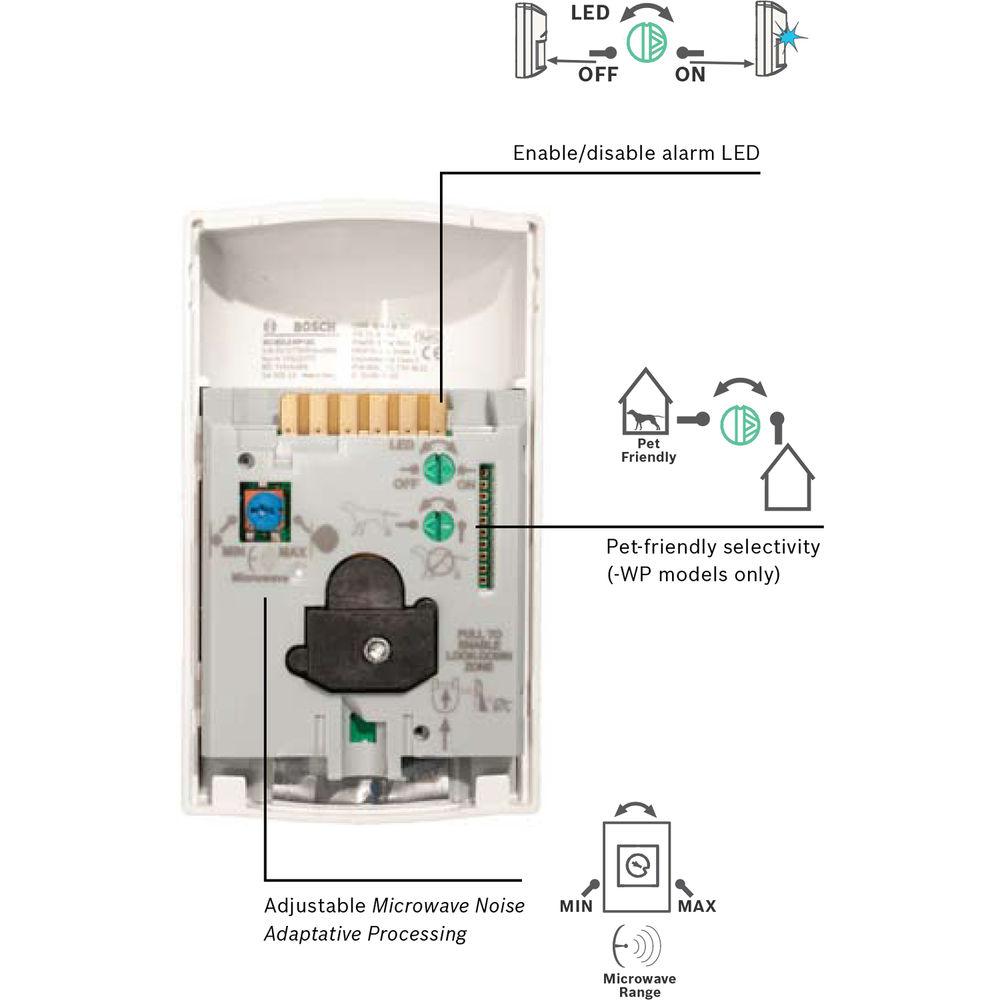

- Microwave noise adaptive processing adjusts to background disturbances to help reduce false alarms
- 94° field of view covers a 20 x 20' area
- Pet-friendly selectivity to negate one or two pets for accurate motion detection
- First Step Processing technology reduces false alarms
- Dynamic temperature compensation adjusts sensitivity for use in varying weather conditions
- Sealed optics and electronics to prevent drafts and insects from entering and affecting the detector

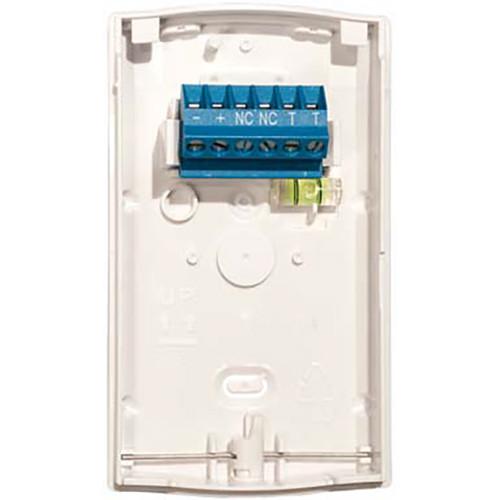

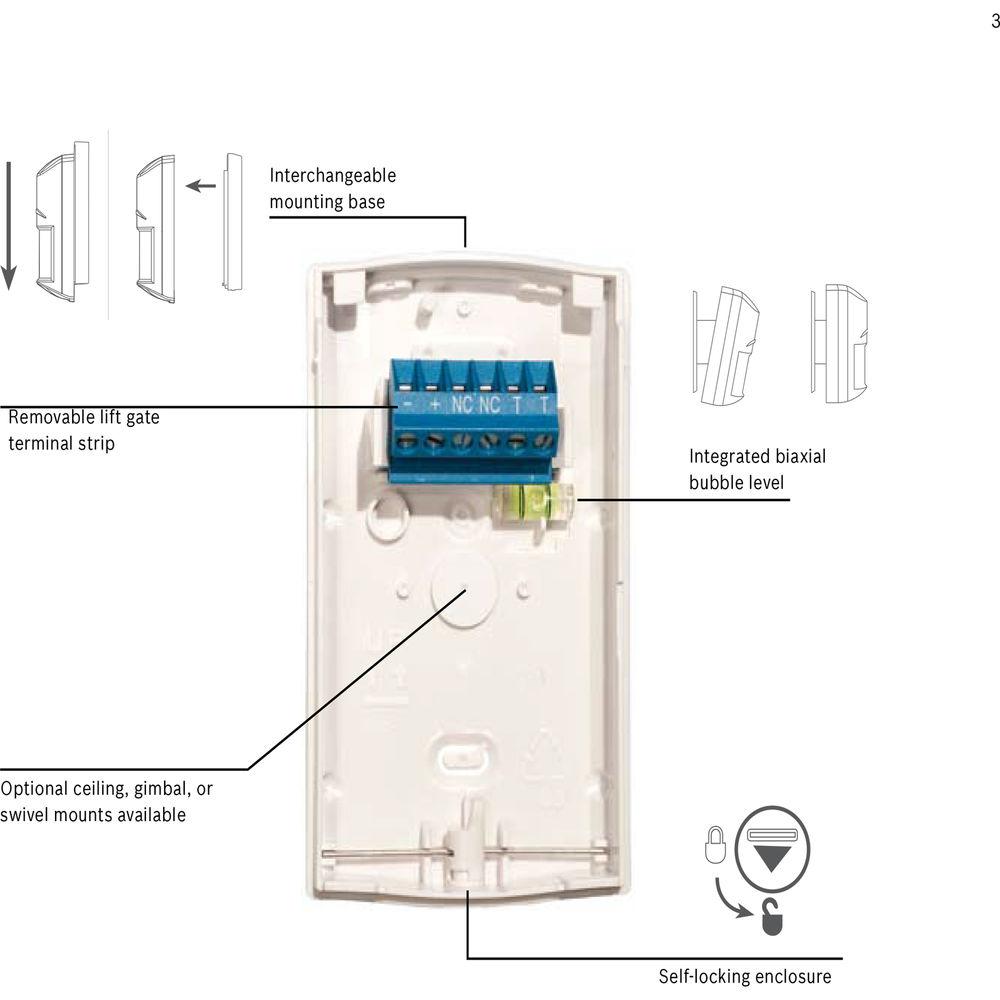

- Self-locking enclosure with built-in bubble level
UPC: 800549283809 In the Box Bosch ISC-BDL2-WP6G Blue Line Gen2 Pet-Friendly TriTech Motion Detector Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch ISC-BDL2-WP6G Blue Line Gen2 Pet-Friendly TriTech Motion Detector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch ISC-BDL2-WP6G Specs | Current | Alarm/Standby: 10 mA at 12 VDC | | Operating Voltage | 9-15 VDC | | Environment | EN50130-5 Class II | | Relative Humidity | 0 to 95%, non-condensing
0 to 85%, non-condensing (for UL-listed installation) | | Operating Temperature | -20 to 130°F (-30 to 55°C)
32 to 120°F (0 to 49°C) (for UL-listed installation) | | Relay Output | Solid state, supervised, Form A normally-closed (NC) contacts rated for ≤100 mA, 25 VDC, 2.5 W, <20 Ohms closed | | Tamper Output | Normally-closed (NC) contacts (with cover on) rated for ≤100 mA, 25 VDC, 2.5 W
Connect tamper circuit to 24-hour protection circuit | | Coverage | 20 x 20' (6 x 6 m) | | Frequency | 10.525 GHz
No alarm or setup on critical frequencies in the range from 150 kHz to 2 GHz at field strengths less than 30 V/m | | Mounting Height | Recommended: 7.5 to 9' (2.2 to 2.8 m) | | Material | High-impact ABS plastic | | Selectivity | Pet-friendly (on, off) for up to two pets up to 100 lb (45 kg) | | Certifications & Approvals | USA: UL 639, FCC
Europe: EN50131-2-4 Grade 2, EN50130-5 Class II, EN60529, EN50102 (IP30, IK04), 2002/95/EC, CE EN50131
Norway: FG
Belgium: INCERTd
France: AFNOR
Sweden: INTYG
Netherlands: NCP
Bulgaria: GD FSPP GODKJENNELSESBEVIS
Canada: CAN/ULC S306-03, IC
Brazil: ANATEL
China: CCC GB10408.1, GB10408.9 | | Dimensions | 4.2 x 2.4 x 1.7" (10.5 x 6.1 x 4.4 cm) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 4.5 x 2.5 x 1.8" |
