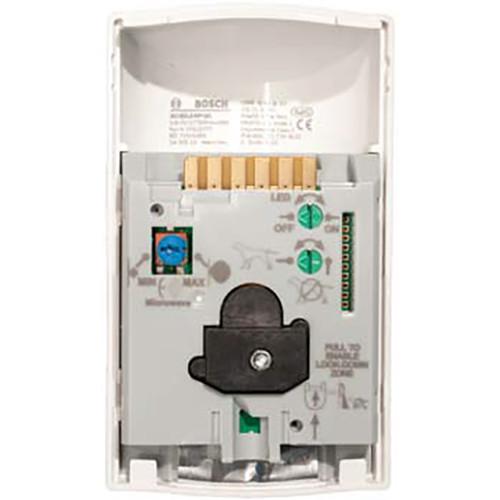

Product description Featuring two Fresnel lenses, the ISC-BPR2-WP12 Blue Line Gen2 Pet-Friendly PIR Motion Detector from Bosch provides accurate motion detection within its wide, 94° field of view. It covers a large 40 x 40' area with its 77-zone, 7-layer pattern lookdown lens and features up to three selectable lookdown zones. This detector features a pet immunity function, which allows it to distinguish between humans' and pets' motion. It can negate signals caused by one or two pets, up to 45 lb each.
First Step Processing (FSP) technology analyzes motion, limiting false alarms. For increased reliability, the detector's sensitivity is automatically adjusted based on signal amplitude, polarity, slope, and timing. The detector also adjusts its sensitivity to compensate for weather, ensuring accurate operation in varying weather conditions. Installation is quick with its self-locking enclosure and built-in bubble level. - PIR motion sensor with two Fresnel lenses
- 94° field of view covers a 40 x 40' area

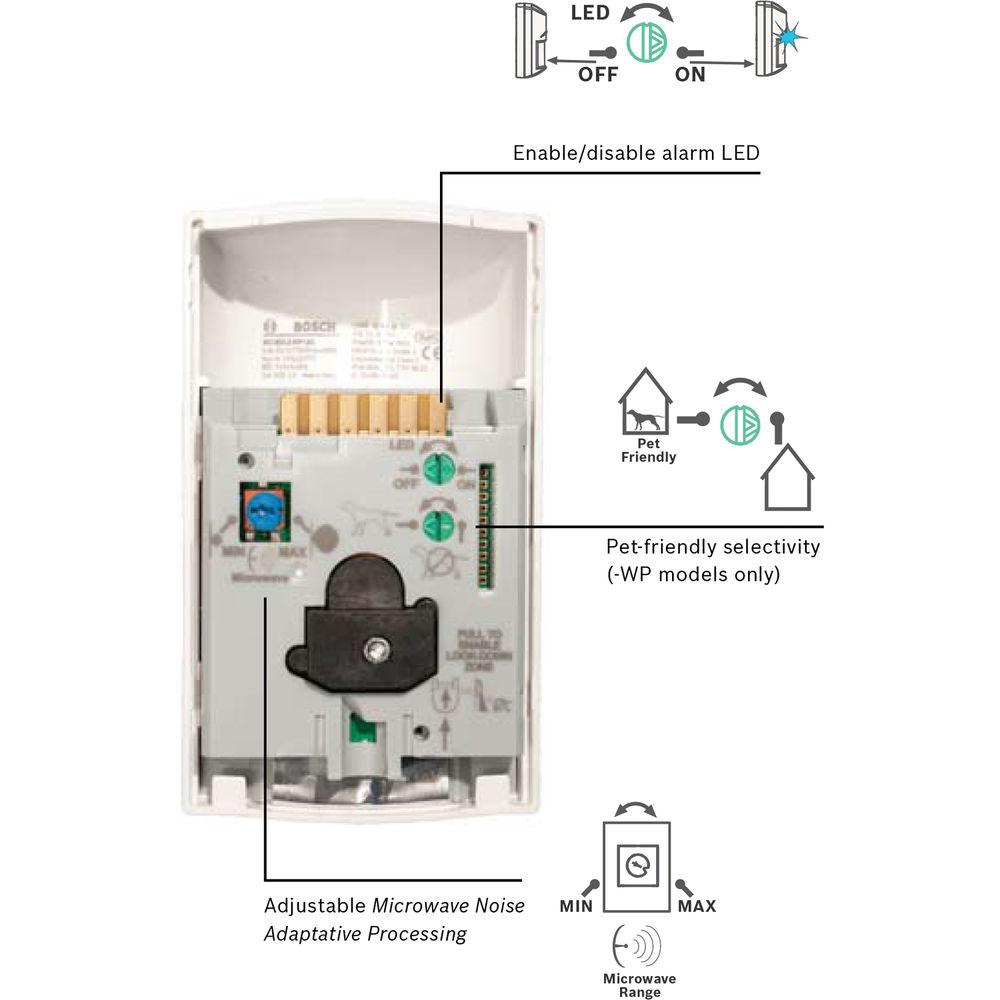

- Pet-friendly selectivity to negate one or two pets for accurate motion detection
- First Step Processing technology reduces false alarms
- Dynamic temperature compensation adjusts sensitivity for use in varying weather conditions

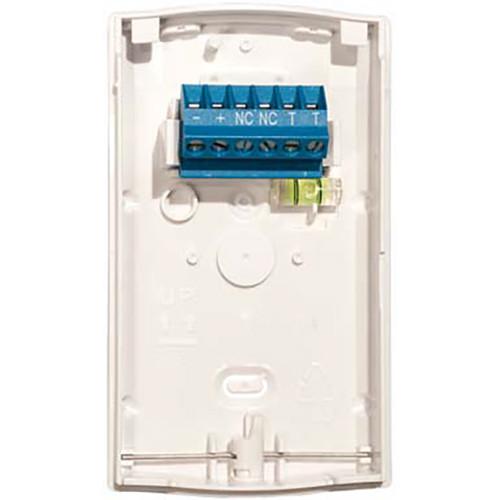

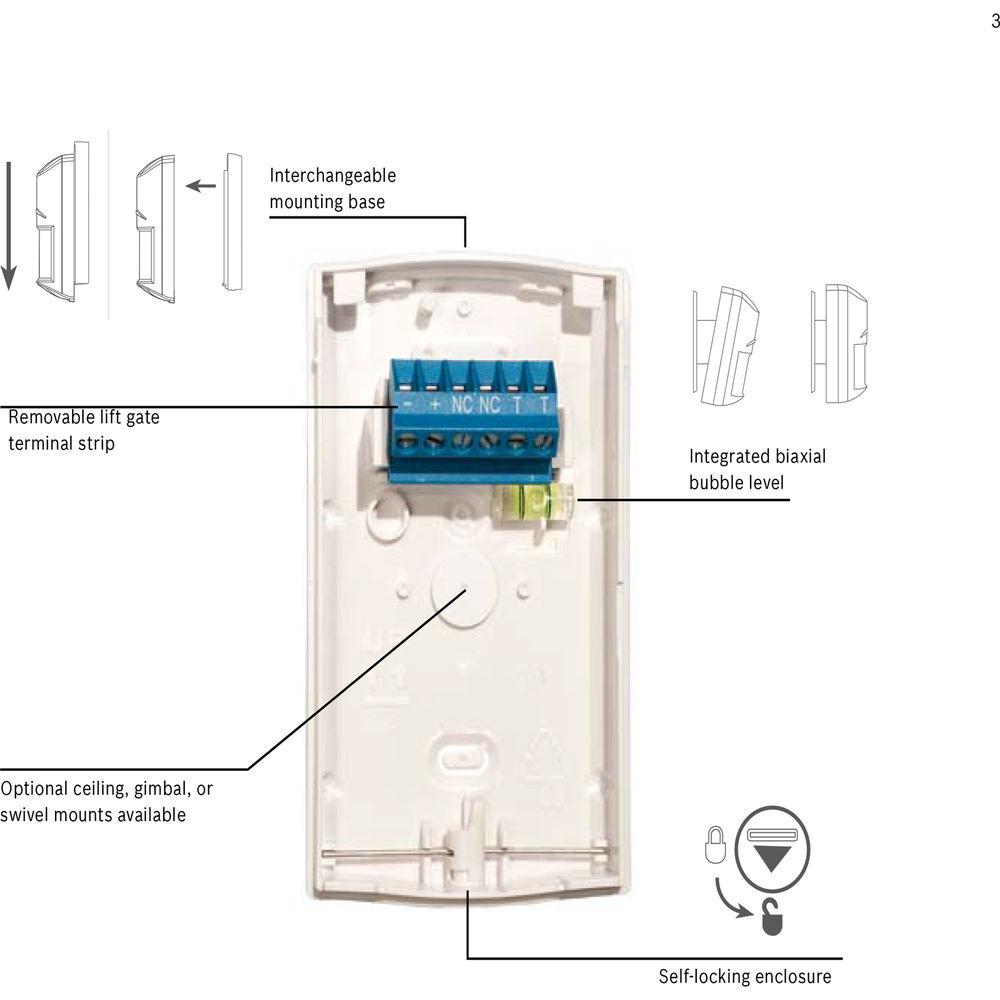

- Self-locking enclosure with built-in bubble level
UPC: 800549283892 In the Box Bosch ISC-BPR2-WP12 Blue Line Gen2 Pet-Friendly PIR Motion Detector Mounting Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch ISC-BPR2-WP12 Blue Line Gen2 Pet-Friendly PIR Motion Detector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch ISC-BPR2-WP12 Specs | Current | Alarm/Standby: 10 mA at 12 VDC | | Operating Voltage | 9-15 VDC | | Environment | EN50130-5 Class II | | Relative Humidity | 0 to 95%, non-condensing
0 to 85%, non-condensing (for UL-listed installation) | | Operating Temperature | -20 to 130°F (-30 to 55°C)
32 to 120°F (0 to 49°C) (for UL-listed installation) | | Relay Output | Solid state, supervised, Form A normally-closed (NC) contacts rated for ≤100 mA, 25 VDC, 2.5 W, <20 Ohms closed | | Tamper Output | Normally-closed (NC) contacts (with cover on) rated for ≤100 mA, 25 VDC, 2.5 W
Connect tamper circuit to 24-hour protection circuit | | Pattern | 7-layer, 77 zones | | Coverage | 40 x 40' (12 x 12 m) | | Mounting Height | Recommended: 7.5 to 9' (2.2 to 2.8 m) | | Material | High-impact ABS plastic | | Selectivity | Pet-friendly (on, off) for up to two pets up to 45 lb (20 kg) | | Certifications & Approvals | USA: UL 639, ULC-S306
Europe: EN50131-2-2 Grade 2, EN50130-5 Class II, EN60529, EN50102 (IP30, IK04), 2002/95/EC, CE (EMC, LVD), EN50131-2-2
Belgium: INCERT B-509-0051/d
France: AFNOR 2620200001B0
Sweden: INTYG 11-268
Netherlands: NCP
Bulgaria: GD FSPP GODKJENNELSESBEVIS | | Dimensions | 4.2 x 2.4 x 1.7" (10.5 x 6.1 x 4.4 cm) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 4.4 x 2.5 x 1.9" |
