User Manual for Bosch ISC-PDL1-W18G Professional Series TriTech Motion Detector Click to enlarge the picture
Contents of the user manual for the Bosch ISC-PDL1-W18G Professional Series TriTech Motion
- Product category: Motion Detectors Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Motion Detectors
 |
User manual for the Bosch ISC-PDL1-W18G Professional Series TriTech Motion contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|

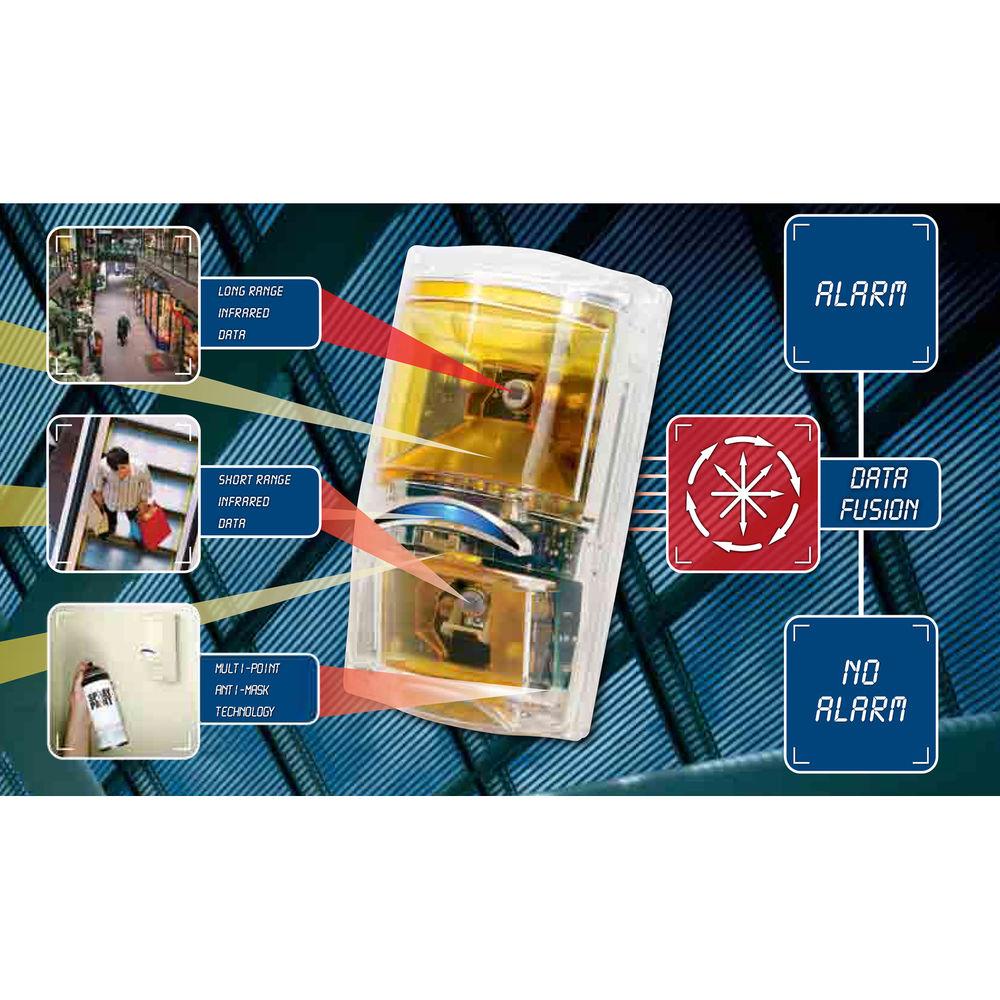

Product description Featuring built-in PIR and microwave detection sensors and tri-focus optics technology, the ISC-PDL1-W18G Professional Series TriTech+ Motion Detector from Bosch uses optics with three focal lengths for long-, medium-, and short-range coverage. Its 90° field of view covers a 60 x 80' area, or a narrowed 25 x 33' area. Sensor Data Fusion technology analyzes signals from all five sensors including two pyroelectric sensors, a range adaptive finder, a room temperature sensor, and a white light level sensor to provide accurate detection.
The detector adjusts its sensitivity to compensate for weather, ensuring accurate operation in varying weather conditions, and features self-adjusting LED brightness to automatically adjust to surrounding light levels. There is a blue LED that indicates an alarm condition and activates during a remote walk test. The detector is immune to drafts, insects, and small animals under 10 lb, helping to reduce false alarms. Installation is quick with its self-locking enclosure and built-in bubble level. - PIR motion sensor with microwave detection technologies
- Microwave noise adaptive processing adjusts to background disturbances to help reduce false alarms
- Range adaptive radar lets the microwave transceiver automatically adjust its detection thresholds based on input from the PIR sensor to reduce false alarms from Doppler radar
- Microwave anti-mask function allows the detector to send a supervision-trouble signal if microwave reflective material is placed within 1' of the detector
- 90° field of view covers a 60 x 80' or 25 x 33'
- Tri-focus optics with three specific optic focal lengths (long-, medium-, short-range) for accurate detection
- Active white light suppression measures light intensity and eliminates false alarms
- Dynamic temperature compensation adjusts sensitivity for use in varying weather conditions
- Self-adjusting LED with remote walk test function via DIP switch
- Alarm memory flashes the alarm LED to indicate stored alarms across multiple units (available separately)
- Solid state relays send silent alarm output signals for discreet operation
- Draft, insect, and small animal immunity reduces false alarms
- Remote self test and trouble memory
- Input power supervision activates the trouble relay when power is below 8 V
- Cover and wall tamper switch detects and sends an alert if the detector cover is tampered with or removed, or if the detector is removed from the wall
- Self-locking enclosure with built-in bubble level
UPC: 800549081658 In the Box Bosch ISC-PDL1-W18G Professional Series TriTech+ Motion Detector Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch ISC-PDL1-W18G Professional Series TriTech Motion Detector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch ISC-PDL1-W18G Specs | Operating Voltage | 9-15 VDC | | Maximum Current | <25 mA | | Standby Current | 13 mA | | Relay Output | Solid state relay, normally-closed (NC) contacts, power supervised, 3 W, 125 mA, 25 VDC, <10 Ohms resistance | | Tamper Output | Normally-closed (NC) contacts (with cover on) rated 25 VDC, 125 mA maximum
Connect tamper circuit to 24-hour protection circuit | | Trouble Output | Solid state relay normally-closed (NC) contacts | | Relative Humidity | 0 to 95%, non-condensing | | Operating Temperature | -20 to 130°F (-29 to 55°C)
32 to 120°F (0 to 49°C) (for UL-certificated installation) | | LED Indicators | TriTech Alarm: Blue
Microwave Detection: Yellow
PIR Detection: Red | | Pattern | 11-layer, 86 zones | | Coverage | 60 x 80' (18 x 25 m) or 25 x 33' (8 x 10 m) | | Frequency | 10.525 GHz
No alarm or setup on critical frequencies in the range from 26 MHz to 1 GHz at 50 V/m | | Mounting Height | Recommended: 7 to 10' (2 to 3 m) | | Wire | Recommended: 26 to 16 AWG | | Material | High-impact ABS plastic | | Environment | EN 50130-5 | | IP Rating | IP41 (EN 60529) | | IK Rating | IK04 (EN 50102) | | Certifications & Approvals | USA: UL639, cULus, FCC
Italy: IMQ
Canada: IC
Europe: CE EMC, LVD, R&TTE, RoHS, EN50131
France: AFNOR
China: CCC 2009031901000559
Sweden: INTYG
Brazil: ANATEL
Netherlands: REQ
Australia: C-Tick, SCEC | | Dimensions | 5.3 x 2.8 x 2.3" (136 x 69 x 58 mm) | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 5.7 x 3.0 x 2.6" |
