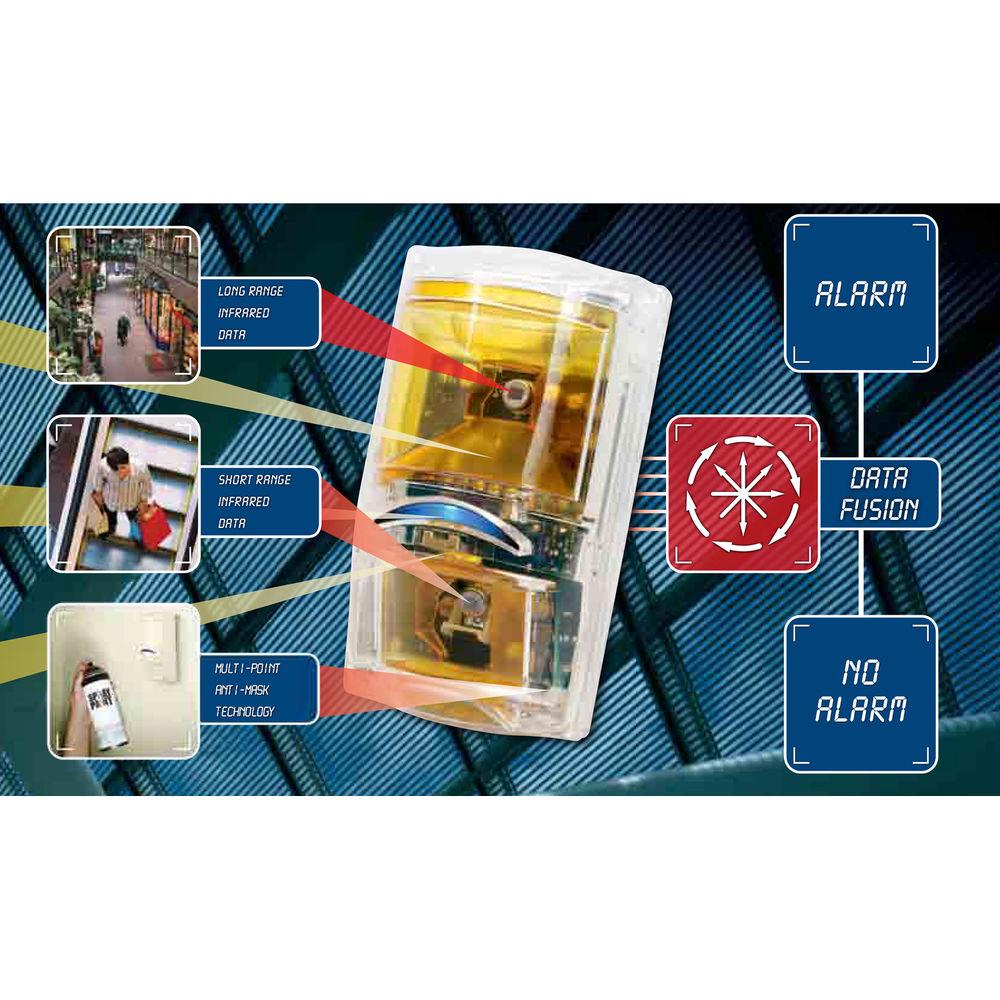

Product description Featuring tri-focus optics technology, the ISC-PPR1-W16 Professional Series PIR Motion Detector from Bosch uses optics with three focal lengths for long-, medium-, and short-range coverage. Its 90° field of view covers up to an 50 x 70' area, or a narrower 25 x 33' area. Sensor Data Fusion technology analyzes signals from four sensors, including two pyroelectric sensors, a room temperature sensor, and a white light level sensor to provide accurate detection.
The detector adjusts its sensitivity to compensate for weather, ensuring accurate operation in varying weather conditions, and features self-adjusting LED brightness to automatically adjust to the surrounding light level. There is a blue LED that indicates an alarm condition and activates during a remote walk test. The detector is immune to draft, insect, and small animals under 10 lb, helping to reduce false alarms. Installation is quick with its self-locking enclosure and built-in bubble level. - PIR motion sensor with Sensor Data Fusion technology
- 90° field of view covers a 50 x 70' or 25 x 33' area
- Tri-focus optics with three specific optic focal lengths (long-, medium-, short-range) for accurate detection
- Active white light suppression measures light intensity and eliminates false alarms
- Dynamic temperature compensation adjusts sensitivity for use in varying weather conditions
- Self-adjusting LED with remote walk test function via DIP switch
- Alarm memory flashes the alarm LED to indicate stored alarms across multiple units (available separately)
- Solid state relays send silent alarm output signals for discreet operation
- Draft, insect, and small animal immunity reduces false alarms
- Remote self-test and trouble memory
- Input power supervision activates the trouble relay when power is below 8 V
- Cover and wall tamper switch detects and sends an alert if the detector cover is tampered with or removed, or if the detector is removed from the wall
- Self-locking enclosure with built-in bubble level
UPC: 800549082501 In the Box Bosch ISC-PPR1-W16 Professional Series PIR Motion Detector Mounting Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch ISC-PPR1-W16 Professional Series PIR Motion Detector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch ISC-PPR1-W16 Specs | Operating Voltage | 9-15 VDC | | Maximum Current | <15 mA | | Standby Current | <10 mA at 12 VDC | | Relay Output | Solid state relay, normally-closed (NC) contacts, power supervised, 3 W, 125 mA, 25 VDC, <10 Ohms resistance | | Tamper Output | Normally-closed (NC) contacts (with cover on) rated 25 VDC, 125 mA maximum
Connect tamper circuit to 24-hour protection circuit | | Relative Humidity | 0 to 95%, non-condensing | | Operating Temperature | -20 to 130°F (-29 to 55°C)
32 to 120°F (0 to 49°C) (for UL-certificated installation) | | Indicators | Alarm: Blue LED | | Pattern | 11-layer, 86 zones | | Coverage | 50 x 70' (16 x 21 m) or 25 x 33' (8 x 10 m) | | Mounting Height | Recommended: 7 to 10' (2 to 3 m) | | Material | High-impact ABS plastic | | Environment | EN 50130-5 | | IP Rating | IP41 (EN 60529) | | IK Rating | IK04 (EN 50102) | | Certifications & Approvals | USA: UL 639
Italy: IMQ
Canada: ULC CAN/ULC S306-03
Europe: EN 50131-1, EN 50131-2-2:2008 Grade 2, EN-ST-000085
France: AFNOR 26203926601
Sweden: INTYG Nr11-848
Netherlands: REQ 07223000/AA/00 | | Dimensions | 5 x 2.8 x 2.3" (127 x 69 x 58 mm) | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 5.3 x 3.0 x 2.4" |
