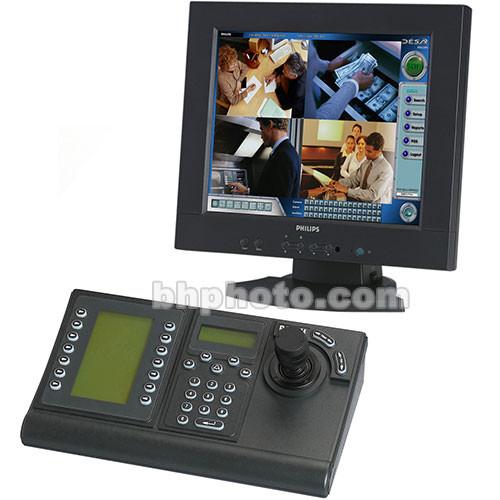

Product description The Bosch KBD-Digital is an economical keyboard designed for use with Divar digital recorders and System4 multiplexers. Unlike the KBD-Universal model, this keyboard cannot be used with an Allegiant system and will not control more than one device at a time. A single 10 ft cable (included) carrying both data and power connects the keyboard to the system, with an optional power supply available for remote installation applications. The keyboard is built of a rugged splash-proof design and incorporates various features for ease of setup and operation. An optional rack kit is available for mounting in a standard 19" rack. - Joystick Control
- The keyboard features a built-in joystick, enabling precise control of major camera functions including pan/tilt, zoom, manual focus, open/close, iris, start/stop, random scanning as well as control of any auxiliary devices attached to the camera.
- Plug and Play with IntuiKey Function
- Bosch designed this unit so that even a new operator will have it up and running in a short time. One of the major plug and play features is an IntuiKey soft key function which offers a menu-driven approach for programming and accessing frequently used screen displays and camera settings. These allow an operator to quickly program and operate even a large system without having to memorize complex system commands. The IntuiKey can also operate in a Terminal mode using a special RS-232 protocol, allowing third-party integrators and internal developers to use the IntuiKey as a customizable user interface.
UPC: 800549046886 In the Box Bosch KBD-Digital IntuiKey Series Digital Keyboard 10 Ft. (3m) RJ-11 Cable 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch KBD-Digital IntuiKey Series Digital Keyboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch KBD-DIGITAL Specs | Signal Connectors | Mux/DVR Connector: RJ-11 x1 (data and power)
Console Connector: 9-Pin Male D-sub | | Protocols | Mux/DVR Signal
RS-485: 2-wire, 19,200 Baud,
8 bits, no parity, 1 stop bit
Terminal Mode Signal
RS-232: 3 wire, 9600 Baud,
8 bits, no parity, 1 stop bit
Console Signal
RS-232 RTS/CTS handshaking,
19,200/57600 Baud, 8 bits, no parity,
1 stop bit | | Language Options | English, Spanish, French, German, Dutch, Italian, Polish and Portuguese. | | Power Requirements | 12-15 VAC or VDC (supplied by main system) | | Operating Temperature | 32 - 122°F (-0 ~ +50°C) | | Dimensions (WxHxD) | 12.9 x 2.9 x 7.5" (327 x 75 x 190mm) | | Weight | 2.6 lb (1.1 kg) | | | | Package Weight | 5.65 lb | | Box Dimensions (LxWxH) | 16.7 x 13.5 x 9.1" |
