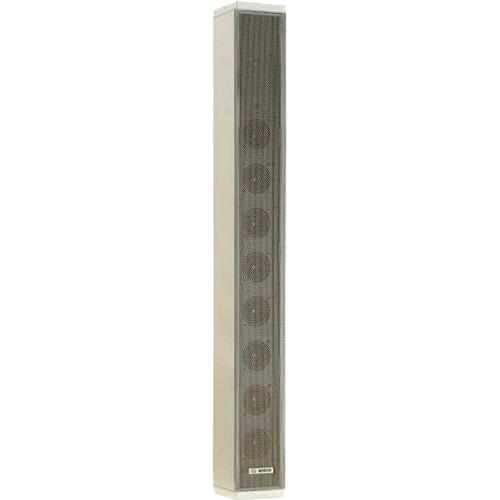

User Manual for Bosch LA1UMx0E1 40Watt Metal Column Loudspeakers Click to enlarge the picture
Contents of the user manual for the Bosch LA1UMx0E1 40Watt Metal Column Loudspeakers
- Product category: Installed Speakers Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Installed Speakers
|
User manual for the Bosch LA1UMx0E1 40Watt Metal Column Loudspeakers contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The Bosch LA1‑UMx0E‑1 40 Watt Metal Column Loudspeakers combine powerful 40 watt power in a durable aluminum weatherproof housing. The speakers provide a high level of speech intelligibility as well as good background music reproduction. A swivel wall mount bracket and instructions for installation are included with the speakers as standard. - Good speech intelligibility and background music reproduction
- For applications where directivity is important
- Slim-line weatherproof design
- Swivel wall mounting bracket supplied as standard
- Robust aluminum construction
- Switchable between 70/100 V line and 8 Ohms
- Provision for inside mounting of the optional line/loudspeaker supervision board
- EN 54‑24 and EN 60849 compliant
UPC: 800549309707 In the Box Bosch LA1UMx0E1 40Watt Metal Column Loudspeakers Wall Mounting Bracket Installation Instructions 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch LA1UMx0E1 40Watt Metal Column Loudspeakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch LA1-UM40E-1 Specs | | | Power | Maximum: 60
Rated: 40 | | Power Taps | 40 / 20 / 10 / 5 W | | Sound Pressure | 1 W (1 kHz, 1 m): 111 / 95 dB (SPL)
1 W (4 kHz, 1 m): 114 / 98 dB (SPL) | | Frequency Range | 250 Hz to 16 kHz (effective) | | Coverage Angle | Horizontal: 210°/ 92°
Vertical: 40°/ 12° | | Rated Input Power | 17.89/70/100 V | | Impedance | 8/125/250 ohm | | | | Certifications | Safety: EN 60065
Emergency: EN 54‑24, EN 60849
Water & Dust Protection: EN 60529 IP 65
Wind‑force: NEN 6702:2007 + A1: 2008, Bft11 | | Connections | 78.8" (2.0 m) 3-wire cable, 3-pole screw block | | Temperature / Humidity | Operating Temperature: -13 to 131 ºF (-25 to 55 ºC)
Storage temperature: -40 to 158 ºF (-40 to 70 ºC)
Humidity: < 95% | | Dimensions (WxDxH) | 3.3 x 3.8 x 29.5" (8.4 x 9.6 x 75.0 cm) | | Weight | 9.7 lb (4.4 kg) | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 37.5 x 8.0 x 6.0" |
