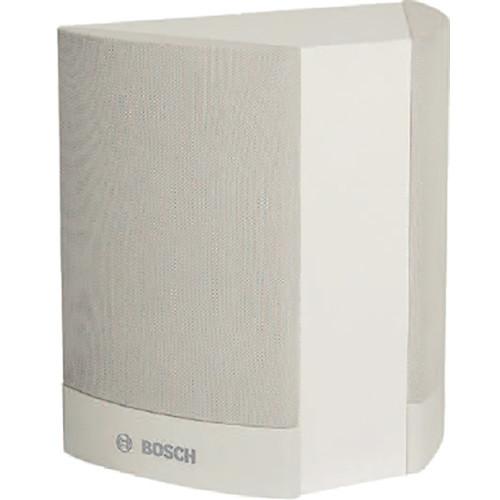

User Manual for Bosch LB1-BW12-L 12W Bidirectional Cabinet Loudspeaker Click to enlarge the picture
Contents of the user manual for the Bosch LB1-BW12-L 12W Bidirectional Cabinet Loudspeaker
- Product category: Installed Speakers Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Installed Speakers
|
User manual for the Bosch LB1-BW12-L 12W Bidirectional Cabinet Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The LB1-BW12-L 12W Bidirectional Cabinet Loudspeaker (White) from Bosch is a cost-effective solution that provides excellent speech intelligibility and background music reproduction for indoor use. The wedge-shaped design provides bidirectional audio, ideal for use in long corridors. The speaker has an MDF construction with a vinyl covering, ABS front, and cloth grille for lasting looks and durability. The speaker has a 12W (18W Peak) power rating to deliver a strong performance. The rear panel has 3 keyhole-style cutouts for convenient wall mounting. - High-quality audio in a cost-effective package for indoor use
- The wedge-shaped design provides bidirectional audio, ideal for use in long corridors
- The MDF construction, vinyl covering, ABS front, and cloth grille provide lasting looks and durability
- The angled front baffle provides better sound quality in the listening area
- The speaker has a 12W (18W Peak) power rating to deliver a strong performance
- The rear panel has 3 keyhole-style cutouts for convenient wall mounting
- Complies with international installation and safety regulations
UPC: 800549725835 In the Box Bosch LB1-BW12-L 12W Bidirectional Cabinet Loudspeaker (White) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch LB1-BW12-L 12W Bidirectional Cabinet Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch F.01U.283.975 Specs | Rated Power Output | 12 / 6 / 3 W (18 W Max) | | SPL | 97 dB @ 12 W
86 dB @ 1 W | | Frequency Range | 140 Hz to 20 kHz (-10 dB) | | Dispersion | Opening Angle: 270°/165° (1 kHz / 4 kHz -6 dB) | | Input Voltage | 100 V / 70 V | | Impedance | 833 Ohms | | Connector | 4-Pole Push-In Terminal Block | | Operating Temperature | -13 to +131°F (-25 to +55°C) (< 95% Relative Humidity) | | Dimensions (HxWxD) | 9.4 x 9.3 x 5.24" (240 x 238 x 133 mm) | | Weight | 3.3 lbs (1.5 kg) |
