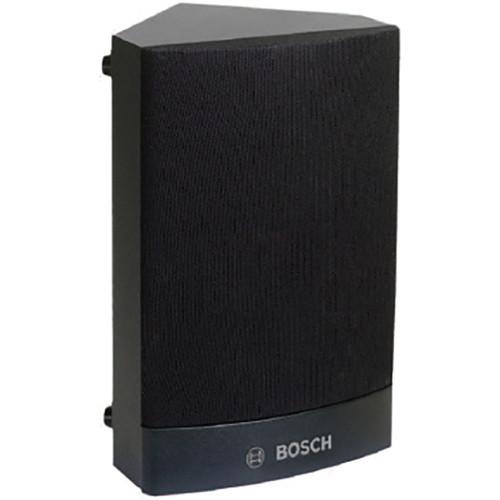

User Manual for Bosch LB1-CW06-D1 Corner Cabinet Loudspeaker Click to enlarge the picture
Contents of the user manual for the Bosch LB1-CW06-D1 Corner Cabinet Loudspeaker
- Product category: Installed Speakers Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Installed Speakers
|
User manual for the Bosch LB1-CW06-D1 Corner Cabinet Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The black Bosch LB1-CW06-D1 Corner Cabinet Loudspeaker is a 6 watt general purpose speaker designed to be mounted in corners. The speaker can either be mounted between 2 walls or between a wall and the ceiling. The medium density fiberboard construction and vinyl covering provide a durable cabinet with an easy to clean surface. Functions - The robust, solid MDF (Medium Density Fiber board) enclosure is covered with a durable, easy-to-clean vinyl in black or white. The ABS front is covered with fine woven cloth in matching color
- The cabinet design allows installation in corners between walls, and between wall and ceiling
Certifications & Approvals - All Bosch loudspeakers are designed to withstand operating at their rated power for 100 continuous hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that they can withstand two times their rated power for short durations. This ensures improved reliability under extreme conditions, leading to higher customer satisfaction, longer operating life, and lessens the chance of failure or performance deterioration
- Good speech intelligibility and music reproduction
- Designed for mounting in corners
- Complies with international installation and safety regulations
UPC: 800549725842 In the Box Bosch LB1-CW06-D1 Corner Cabinet Loudspeaker (Black) 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch LB1-CW06-D1 Corner Cabinet Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch F.01U.283.976 Specs | | | Power | Maximum: 9.0 W
Rated Power: 6 / 3 / 1.5 / 0.75 W | | SPL | 99 / 91 dB @ 6 W / 1 W (1 kHz, 1 m) | | Frequency Range | 180 Hz to 20 kHz | | Angle of Coverage | Horizontal: 164/82° | | Input Voltage | 70 / 100 V | | Impedance | 835 / 1667 Ohms | | Connector | 4-pole push-in terminal block | | | | Temperature / Humidity | Operating Temperature: -13 to 131 ºF (-25 to 55 ºC)
Storage Temperature: -40 to 158 ºF (-40 to 70 ºC)
Relative Humidity: < 95% | | Color | Black | | Dimensions (WxHxD) | 5.9 x 9.5 x 5.6" (15.1 x 24.0 x 13.8 cm) | | Weight | 2.88 lb (1.31 kg) | | | | Package Weight | 4.25 lb | | Box Dimensions (LxWxH) | 12.7 x 9.0 x 8.9" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 93 owners. Add your rating and experience with the product.
