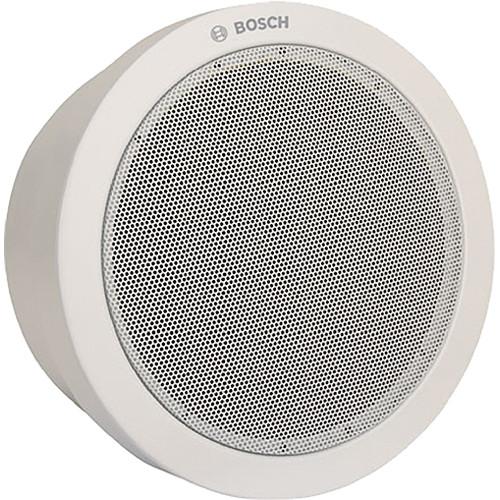

Product description The 6W white LB1-UM06E-1 Metal Cabinet Loudspeaker from Bosch is a circular metal cabinet emergency loudspeaker that delivers professional performance from a robust, yet aesthetically designed metal enclosure. It is a suitable loudspeaker for indoor use in offices, schools, car parks, shopping centers, and in areas where vandalism is a potential hazard.The cabinet is designed for both surface and recessed mounting on walls. The back box provides a selection of mounting holes, even for mounting on U40 and MK installation boxes. The back box has 2 knockout holes on the topside for 2 cable glands (sold separately) for loop-through connection.For extra installation convenience, a safety cord from the back box lets the installer temporarily hang the front grille unit during installation. The cabinet has a three-way terminal block with screw connections suitable for loop-through wiring (including earth). The 4 primary taps on the matching transformer allows selection of nominal full-power, half-power, quarter-power, or eighth power radiation (in 3 dB steps). - Voice Alarm
- Voice alarm loudspeakers are specifically designed for use in buildings, where the performance of PA systems is subject to official regulations. It is designed for voice alarm systems, and is compliant with British Standard BS 5839-8 and EN 60849.
- Protection
- The loudspeaker has built-in protection to ensure that in the event of a fire damage does not cause failure of the connected circuit. In this way, system integrity is maintained; ensuring loudspeakers in other areas can still be used to inform people of the situation.
- Connections and Safety
- The loudspeaker has a ceramic terminal block, thermal fuse, and heat-resistant, high-temperature wiring. The cabinet has a provision for internally mounting the line/loudspeaker supervision board (sold separately).
- General
- Suitable for speech and music reproduction
Robust metal enclosure
Surface and/or recessed mounting
Provision for internal mounting of the line/ loudspeaker supervision boards (sold separately)
Recommended for voice evacuation systems - Certifications and Approvals
- It is designed to withstand operating at their rated power for 100 hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that the speakers can withstand 2 times their rated power for short durations.
This ensures extra reliability under extreme conditions, leading to greater customer satisfaction, longer operating life, and much less chance of failure or performance deterioration In the Box Bosch LB1-UM06E-1 Metal Cabinet Loudspeaker (6W, White) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch LB1-UM06E-1 Metal Cabinet Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch LB1-UM06E-1 Specs | | | Maximum Power | 9 W | | Rated Power | PHC: 6 W | | Power Taps | 6 / 3 / 1.5 / 0.75 W | | Sound Pressure | Level: At 6 W / 1 W (1 kHz, 3.2' (1.0 m)): 94 / 86 dB (SPL)
At 6 W / 1 W (4 kHz, 3.2' (1.0 m)): 105 / 97 dB (SPL) | | Frequency Range | Effective (-10 dB): 160 Hz to 20 kHz | | Opening | Angle: At 1 kHz / 4 kHz (-6 dB): 180° / 56° | | Input Voltage | Rated: 70 / 100 V | | Impedance | Rated: 835 / 1,667 Ω | | Connector | 3-pole screw block | | Sensitivity | Octave Band:
Octave SPL 1 W/m:
125 Hz: 73.3
250 Hz: 90.4
500 Hz: 89.0
1,000 Hz: 86.0
2,000 Hz: 92.4
4,000 Hz: 96.6
8,000 Hz: 89.9
Total Octave SPL 1 W/m:
A-Weighted: 89.9
Lin-Weighted: 90.1
Total Octave SPL Pmax/m:
A-Weighted: 96.8
Lin-Weighted: 96.0 Acoustical performance specified per octave. All measurements are done with a pink noise signal; the values are in dBSPL. | | Angle | Octave Band Opening:
Horizontal & Vertical
125 Hz: 180
250 Hz: 180
500 Hz: 180
1,000 Hz: 180
2,000 Hz: 80
4,000 Hz: 56
8,000 Hz: 40 | | | | Operating Temperature | -13 to +131°F (-25 to +55°C) | | Storage Temperature | -40 to +158°F (-40 to +70°C) | | Relative Humidity | <95% | | | | Safety | According to EN 60065 | | Emergency | According to BS 5839-8, EN 60849, & EN 54-24 | | Water and Dust Resistance | According to EN60529 IP32 | | Certification | Europe CE / CPD | | | | Material | Steel, back box, and grille | | Speaker Size | 6.0" (152.4 mm) | | Dimensions | W x D: 7.8 x 4.1" (199.0 x 105.0 mm) | | Magnet Weight | 1.9 oz (53.0 g) | | Weight | 2.71 lb (1.23 kg) | | | | Package Weight | 3.505 lb | | Box Dimensions (LxWxH) | 9.449 x 9.449 x 5.512" | Note: Technical performance data according to IEC 60268-5.
