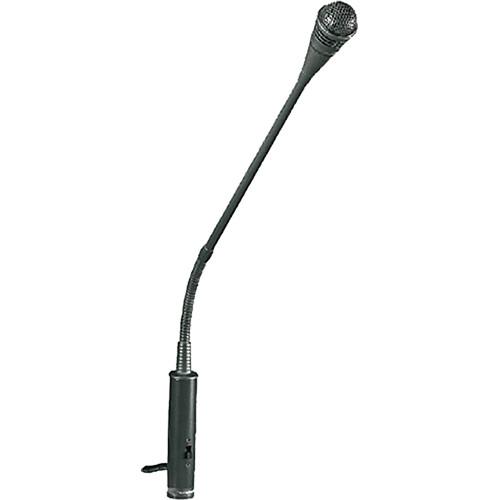

User Manual for Bosch LBB 1949 00 Gooseneck Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Bosch LBB 1949 00 Gooseneck Condenser
- Product category: Gooseneck Microphones Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Gooseneck Microphones
|
User manual for the Bosch LBB 1949 00 Gooseneck Condenser contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The Bosch LBB 1949/00 Gooseneck Condenser Microphone features a unidirectional polar pattern and adjustable gooseneck for conferences, meetings, lectures and more. The microphone features an integrated cables that measures 78" (2m) in length. The supplied DIM to XLR adapter connects the microphone to standard microphone inputs on mixers, amplifiers, etc. - Unidirectional condenser microphone
- Phantom powered by amplifier
- On/Off sliding switch with priority contact
- Supplied with fixed 78" (2m) cable and lockable DIN connector
- Separate DIN to XLR adapter
UPC: 800549167796 In the Box Bosch LBB 1949/00 Gooseneck Condenser Microphone DIN to XLR Adapter Multi-Thread Adaptor (3/8", 1/2", and 5/8") Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch LBB 1949 00 Gooseneck Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch LBB 1949/00 Specs | Transducer | Condenser | | Polar Pattern | Unidirectional | | Frequency Response | 100Hz to 16kHz | | Sensitivity | 0.7mV @ 85dB SPL (2mV/Pa) | | Maximum Input Sound Level | 110dB SPL | | Distortion | < 0.6% (maximum input) | | Power Requirements | Voltage Range: 12 to 48V
Current Consumption: < 8mA | | Output Impedance | < 200 Ohms | | Output Connectors | DIN to XLR adapter | | Cable Length | 78" (2m) | | Temperature | Operating : +14 ° to +131 °F (-10 ° to +55 °C)
Storage: -40 ° to +158 °F (-40 ° to +70 °C) Relative Humidity: < 95% | | Dimensions (LxDiameter) | 19.69 x 1.18" (500 x 30mm) | | Weight | 10.5 oz (300g) | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 20.236 x 2.835 x 2.756" |
