User Manual for Bosch LBB 9080 00 Omnidirectional Dynamic Handheld Microphone Click to enlarge the picture
Contents of the user manual for the Bosch LBB 9080 00 Omnidirectional Dynamic
- Product category: Paging & Security Microphones Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Paging & Security Microphones
|
User manual for the Bosch LBB 9080 00 Omnidirectional Dynamic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|

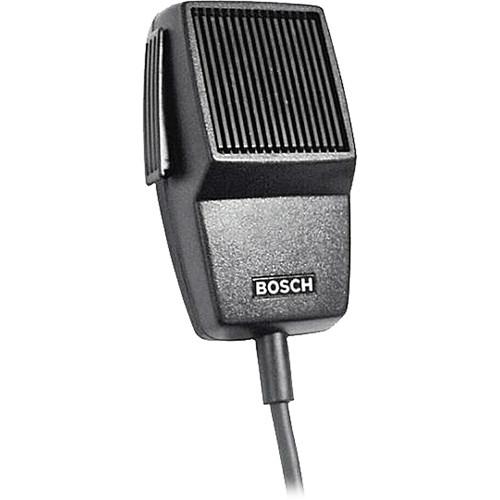

Product description The LBB 9080/00 Omnidirectional Dynamic Handheld Microphone from Bosch is a compact handheld microphone, ideal for close talking applications and short announcements. The rugged mic has an omnidirectional pickup pattern and excellent speech reproduction. The mic is easy to handle, thanks to the large push-to-talk button. The button also has additional contacts for remote control functions to support other applications. The coiled cable provides a variable amount of slack and resists tangles. - Compact and durable construction withstands the demands of daily use
- The omnidirectional pickup pattern offers excellent speech reproduction, ideal for close talking applications and short announcements
- The large push-to-talk button provides terrific ease of use. The button also has additional contacts for remote control functions to support other applications
- The coiled cable provides a variable amount of slack and resists tangles
UPC: 800549167789 In the Box Bosch LBB 9080/00 Omnidirectional Dynamic Handheld Microphone Wall Mounting Bracket 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch LBB 9080 00 Omnidirectional Dynamic Handheld Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch LBB 9080/00 Specs | Type | Handheld | | Polar Pattern | Omnidirectional | | Frequency Response | 280 Hz - 14 kHz | | Sensitivity | 3.1 mV/Pa ±4 dB | | Output Impedance | 500 ohms | | Button | On/off push-to-talk with remote control contacts | | Cable Type | 2-core + 2-core screened, coiled | | Cable Length | Coiled: 1.65' (0.5 m)
Extended: 3.94' (1.2 m) | | Connector | 5-pin 180° DIN (lockable) | | Finish | Matte black | | Environmental | Operating Temp: -13 to +131°F (-25 to +55°C)
Storage Temp: -40 to +158°F (-40 to +70°C)
Relative Humidity: < 95% | | Dimensions (HxWxD) | 4.05 x 2.44 x 1.69" (103 x 62 x 43 mm) | | Weight | 6.7 oz (190 g) (including cable) | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 5.6 x 3.9 x 2.1" |
