User Manual for Bosch LBC 2900 15 Handheld Cardioid Dynamic Microphone with XLR to 1 4" TRS Cable Click to enlarge the picture
Contents of the user manual for the Bosch LBC 2900 15 Handheld Cardioid
- Product category: Dynamic Microphones Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Dynamic Microphones
|
User manual for the Bosch LBC 2900 15 Handheld Cardioid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|

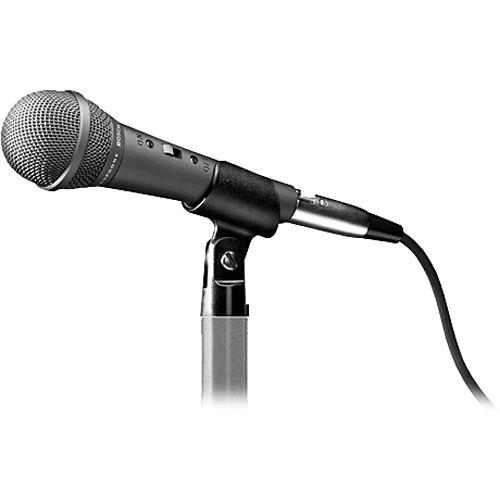

Product description The Bosch LBC 2900/15 is a handheld cardioid dynamic microphone with a 23' XLR to 1/4" TRS microphone cable designed for reliable reproduction of vocals and speech in karaoke, clubs, public address, and conferences. Its dynamic element requires no power source and delivers a frequency response of 80 Hz to 12 kHz with a generous presence boost for enhanced vocal intelligibility. The cardioid polar pattern rejects sound behind the mic, yielding high immunity to feedback and decreased pickup of room ambience. Internal shielding protects against pops and wind noise while the durable casing delivers road-ready toughness. An on/off switch is provided for convenient muting of the mic between speeches or performances. The XLR 3-pin output ensures compatibility with most microphone preamps and mixer inputs. The LBC 2900/15 also includes a quick-release microphone clamp and a storage box. - Ideal for vocals and public address
- Cardioid polar pattern provides enhanced off-axis rejection and high gain before feedback
- 80 Hz to 12 kHz frequency response with a strong presence boost
- Rugged construction grants tour-worthy durability
- XLR 3-pin connector for compatibility with most microphone preamps
- On/off switch allows convenient muting between periods of use
- Includes 23' XLR to 1/4" TRS microphone cable for easy connectivity with a mixer or portable PA system
- Non-reflective dark gray finish
UPC: 800549167826 In the Box Bosch LBC 2900/15 Handheld Cardioid Dynamic Microphone with XLR to 1/4" TRS Cable 23' XLR to 1/4" TRS Microphone Cable Quick-Release Microphone Clamp Storage Box Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch LBC 2900 15 Handheld Cardioid Dynamic Microphone with XLR to 1 4" TRS Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch LBC 2900/15 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Dynamic | | Tube | No | | Polar Pattern | Cardioid | | Frequency Range | 80 Hz to 12 kHz | | Pad | None | | Impedance | 600 Ohms | | Sensitivity | 1.7 mV/Pa | | Low-Cut Filter | None | | | | Output Connectors | 1 x 3-Pin XLR | | Cable Length | 23' / 7.01 m | | Operating Temperature | 14 to 131°F / -10.00 to 55.00°C | | Operating Humidity | 95% | | Storage Temperature | -40 to 158°F / -40 to 70.00°C | | Length | 6.50" / 165 mm | | Diameter | 2.06" / 52.4 mm | | Weight | 9.52 oz / 270 g | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 9.6 x 4.6 x 2.7" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 45 owners. Add your rating and experience with the product.
