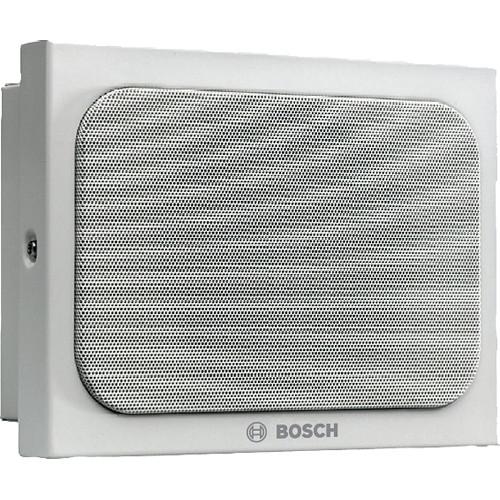

User Manual for Bosch LBC 3018 01 Metal Cabinet Loudspeaker Click to enlarge the picture
Contents of the user manual for the Bosch LBC 3018 01 Metal Cabinet
- Product category: Installed Speakers Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Installed Speakers
|
User manual for the Bosch LBC 3018 01 Metal Cabinet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The 6W white LBC 3018/01 Metal Cabinet Loudspeaker from Bosch delivers professional performance from a robust yet aesthetically designed metal enclosure. It is a loudspeaker suitable for indoor use in offices, schools, car parking, shopping centers, and in areas where vandalism is a potential hazard. The cabinets are equipped with a high-efficiency, dual-cone loudspeaker, offering a wide frequency range suitable for both speech and music reproduction.
The cabinet is designed for both surface mounting on walls as well as recessed mounting into brick or concrete walls. The back-box of the cabinet provides a selection of mounting holes, even for mounting onto U40 and MK installation boxes. The back-box has 2 knockout holes on the topside for 2 cable glands for loop-through connection. For extra convenience, a safety cord from the back-box lets the installer temporarily hang the front grille unit during installation.
The cabinet has a 3-way terminal block with screw connections suitable for loop-through wiring (including earth). The 4 primary taps are provided on the matching transformer to allow selection of nominal full-power, half-power, quarter-power, or eighth power radiation (in 3 dB steps). - Functions
- This voice alarm loudspeaker is specifically designed for use in buildings, where the performance of PA-systems is subject to official regulations. It is designed for voice alarm systems, and is compliant with the EN 54-24 standard.
The loudspeaker has built-in protection to ensure that, in the event of a fire, damage to the loudspeaker does not result in failure of the circuit to which it is connected. In this way, system integrity is maintained; ensuring loudspeakers in other areas can still be used to inform people of the situation.
The loudspeaker has a ceramic terminal block, thermal fuse, and heat-resistant, high-temperature wiring. The cabinet has a provision for internally mounting the line/loudspeaker supervision board (sold separately). - Certifications and Approvals
- This loudspeaker is designed to withstand operating at its rated power for 100 hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that the speakers can withstand 2 times their rated power for short durations.
This ensures extra reliability under extreme conditions, leading to greater customer satisfaction, longer operating life, and much less chance of failure or performance deterioration. - General
- Suitable for speech and music reproduction
Robust metal enclosure
Surface and/or recessed mounting
Provision for internal mounting of the line/ loudspeaker supervision boards (sold separately)
EN 54-24 certified In the Box Bosch LBC 3018/01 Metal Cabinet Loudspeaker (6W, White) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch LBC 3018 01 Metal Cabinet Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch LBC 3018/01 Specs | | | Maximum Power | 9 W | | Rated Power | PHC: 6 W | | Power Taps | 6 / 3 / 1.5 / 0.75 W | | Sound Pressure | Level: At 6 W / 1 W (1 kHz, 3.2' (1.0 m)): 102 / 94 dB (SPL) | | Frequency Range | Effective (-10 dB): 150 Hz to 20 kHz | | Opening | Angle: At 1 kHz / 4 kHz (-6 dB): 120° / 55° | | Input Voltage | Rated: 70 / 100 V | | Impedance | Rated: 835 / 1,667 Ω | | Connector | 3-pole screw terminal block | | | | Operating Temperature | -13 to +131°F (-25 to +55°C) | | Storage Temperature | -40 to +158°F (-40 to +70°C) | | Relative Humidity | <95% | | | | Safety | According to EN 60065 | | Emergency | According to BS 5839-8, EN 60849, & EN 54-24 | | Water and Dust Resistance | According to EN60529 IP32 | | Certification | Europe CE / CPD
Poland CNBOP | | | | Speaker Size | 6.0" (152.4 mm) | | Dimensions (H x W x D) | 7.68 x 10.24 x 3.15" (195.00 x 260.00 x 80.00 mm) | | Magnet Weight | 5.3 oz (150.0 g) | | Weight | 5.78 lb (2.60 kg) | Note: Technical performance data according to IEC 60268-5.
