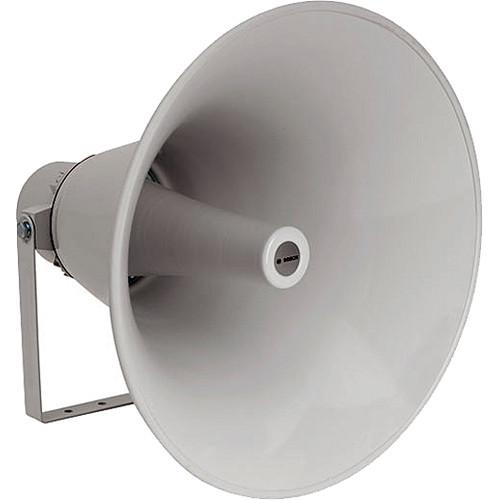

User Manual for Bosch LBC 3483 00 Horn Loudspeaker Click to enlarge the picture
Contents of the user manual for the Bosch LBC 3483 00 Horn Loudspeaker
- Product category: Installed Speakers Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Installed Speakers
|
User manual for the Bosch LBC 3483 00 Horn Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The Bosch LBC 3483/00 Horn Loudspeaker's highly accurate speech reproduction and powerful sound distribution is ideal for outdoor use such as sporting events, exhibits and swimming pools. The durable aluminum construction is protected against impact by a PVC rim around the edges. Voice Alarm Loudspeaker - The LBC 3483/00 is designed for use in voice alarm systems and is compliant with emergency standards
- The Horn loudspeaker has built-in protection to ensure that, in the event of a fire, damage to the loudspeaker does not result in failure of the circuit to which it is connected. In this way, system integrity is maintained; ensuring loudspeakers in other areas can still be used to inform people of the situation. The Horn loudspeaker has a ceramic terminal block, thermal fuse and heat resistant, high-temperature wiring
- Provision for inside mounting the optional line/loudspeaker supervision boards
Functions - The rear cover on the horn is made from self-extinguishing ABS (acc. to class UL 94 V0). The connection cable is fed out through a cable gland (PG 13.5) in rear cover. For loop through connection, the rear cover is fitted with a second hole (covered as standard supplied)
Certifications & Approvals - All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that they can withstand two times their rated power for short durations. This ensures extra reliability under extreme conditions, leading to higher customer satisfaction, longer operation life, and much less chance of failure or performance deterioration
UPC: 800549165020 In the Box Bosch LBC 3483/00 Horn Loudspeaker PG 13.5 Cable Gland (Fitted) 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch LBC 3483 00 Horn Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch LBC 3483/00 Specs | | | Maximum Power | 52.5 W | | Rated Power | 35/17.5/8.75 W | | SPL | 127/112 dB | | Frequency Range | 380 Hz to 5 kHz | | Angle of Coverage | 50/25° | | Voltage | 100 V | | Impedance | 286 ohm | | Connector | Screw terminal block | | | | Color | Light gray | | Temperature / Humidity | Operating Temperature: -13 to 131 ºF (-25 to 55 ºC)
Storage Temperature: -40 to 158 ºF (-40 to 70 ºC)
Relative Humidity: < 95% | | Cable Diameter | 0.24 to 0.47" (6.0 to 12.0 mm) | | Dimensions (L x Diam) | 20.0 x 19.6" (49.9 x 49.0 cm) | | Weight | 9.9 lb (4.5 kg) | | | | Package Weight | 15.8 lb | | Box Dimensions (LxWxH) | 21.0 x 21.0 x 21.0" |
