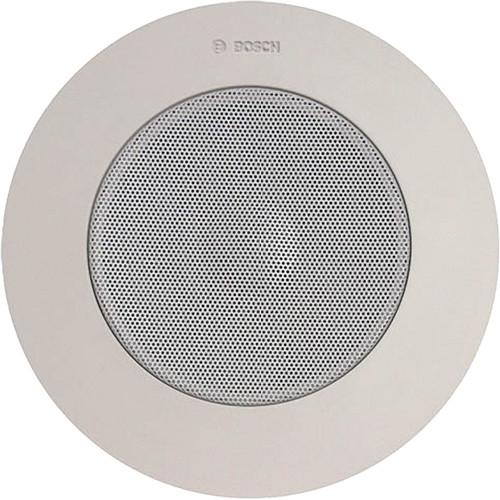

User Manual for Bosch LBC 3951 11 Ceiling Loudspeaker Click to enlarge the picture
Contents of the user manual for the Bosch LBC 3951 11 Ceiling Loudspeaker
- Product category: Installed Speakers Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Installed Speakers
|
User manual for the Bosch LBC 3951 11 Ceiling Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The Bosch LBC 3951/11 Ceiling Loudspeaker provides powerful sound in a compact easy-to-install loudspeaker. The speaker's wide opening angle provides a maximum listening range. Functions - The LBC 3951/11 has a perforated metal grille with a plastic surround, finished in an attractive off-white RAL color
- The loudspeaker features a very wide opening angle, which means fewer units are required to cover a given area. The wide frequency range means better speech and music reproduction. The unit is supplied with a 100 V matching transformer with taps on the primary winding for full-power, half-power, quarter-power and eighth-power radiation
- The loudspeaker (with special treated paper cone), is IPx4 water protected from the front and can be applied in humidity environments for example bathrooms, saunas, atriums and swimming pool areas
Certifications & Approvals - All plastic parts are manufactured from self-extinguishing high-impact ABS material (according to UL 94V0)
- All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that they can withstand two times their rated power for short durations. This ensures extra reliability under extreme conditions, leading to higher customer satisfaction, longer operating life, and much less chance of failure or performance deterioration
UPC: 800549164795 In the Box Bosch LBC 3951/11 Ceiling Loudspeaker 100 V Matching Transformer 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch LBC 3951 11 Ceiling Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch LBC 3951/11 Specs | | | Power | Maximum: 9 W
Rated: 6/3/1.5/0.75 W | | Sound Pressure | 99 dB/91 dB At 6 W / 1 W (4 kHz, 1 m) | | Frequency Range | 60 Hz to 18 kHz | | Angle of Coverage | 170° / 80° | | Input Voltage | 100 V | | Impedance | 1667 ohm | | Transducer | Woofer: 4.0" (10.16 cm)
Dome Tweeter: 0.51" (1.3 mm) | | Connection | 2-pole push-in terminal block | | | | Color | Off-white | | Certifications | Europe CE
Safety: EN 60065
Water: EN 60529, IPx4 | | Temperature / Humidity | Operating Temperature: -13 to 131 ºF (-25 to 55 ºC)
Storage Temperature: -40 to 158 ºF (-40 to 70 ºC )
Relative Humidity: <95% | | Diameter | Diameter: 6.3" (16.0 cm)
Speaker Diameter: 4.0" (10.16 cm) | | Dimensions | Maximum Depth: 3.74" (9.5 mm)
Ceiling Thickness: 0.35 to 0.98" (9 to 25 mm) | | Weight | 690 g (1.52 lb)
Magnet Weight: 3.57 oz (101 g) | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 7.4 x 7.2 x 4.4" | Note: Technical performance data according to IEC 60268-5
