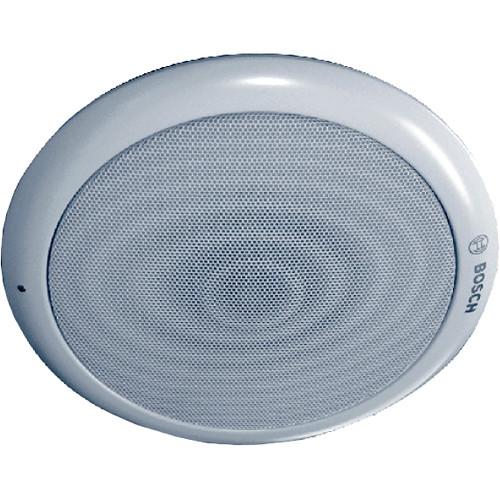

User Manual for Bosch LC1-WM06E8 Ceiling Loudspeaker Click to enlarge the picture
Contents of the user manual for the Bosch LC1-WM06E8 Ceiling Loudspeaker
- Product category: Installed Speakers Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Installed Speakers
|
User manual for the Bosch LC1-WM06E8 Ceiling Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The Bosch LC1-WM06E8 Ceiling Loudspeaker (6 W) provides high quality sound that is suitable for both speech as well as music reproduction. The speaker is easy to install and has multiple ceiling mounting options so you can choose the best one. The LC1-WM06E8 is designed for use in alarm systems and is approved for use in evacuation announcements. LC1 Modular Ceiling Loudspeaker - Excellent speech and music reproduction
- Easy installation with one grille size and one complete set of accessories
- Suitable for 70 V and 100 V
- Choice of different ceiling mounting methods
- Optional Pilot Tone indication
- Provision for mounting of the optional line / loudspeaker supervision board
Voice Alarm applications - Voice alarm loudspeakers are specifically designed for use in buildings where system performance for verbal evacuation announcements is governed by regulations. The LC1 Modular Ceiling Loudspeaker range is designed for use in voice alarm systems and is compliant with British standard BS 5839-8
Protection - The loudspeakers have built-in protection to ensure that fire damage to the loudspeakers does not cause failure of the connected circuit. In this way system integrity is maintained, ensuring loudspeakers in other areas can still be used to inform people of the situation
- The loudspeakers can also be used in combination with a metal fire-dome to increase protection of the cable termination
Connections - The loudspeakers have a ceramic screw-terminal connection block, thermal fuse and heat-resistant, high temperature wiring
Certifications & Approvals - All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 68-5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that they can withstand two times their rated power for short durations
- This ensures extra reliability under extreme conditions, leading to higher customer satisfaction, longer operating life, and much less chance of failure or performance deterioration. All plastic parts are self extinguishing according to UL 94 V0
UPC: 800549160100 In the Box Bosch LC1-WM06E8 Ceiling Loudspeaker (6 W) Cut-Out Template Installation Instructions 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch LC1-WM06E8 Ceiling Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch LC1-WM06E8 Specs | | | Power | Maximum: 6
Rated Power: 6 / 3 / 1.5 / 0.75 W | | SPL | 95/87 dB At rated power - 1 W (1 kHz, 1 m) | | Angle of Coverage | 180/124° | | Frequency Range | 80 Hz to 20 kHz | | Rated Voltage | 70/100 V | | Impedance | 835/1667 Ohm | | Connector | 3-pole screw-terminal block | | | | Color | White | | Material | Steel frame & front grille | | Diameter | 8.67" (22.0 cm) | | Maximum Depth | 4.92" (12.5 cm) | | Mounting Area | 7.48" (19.0 cm) | | Weight | 2.6 lb (1.18 kg) | | | | Package Weight | 3.75 lb | | Box Dimensions (LxWxH) | 10.3 x 10.1 x 6.4" |
