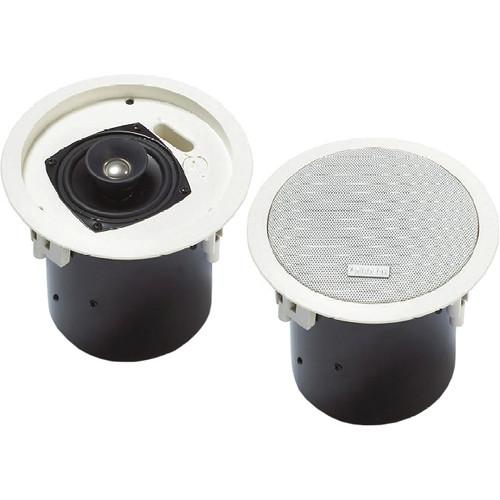

User Manual for Bosch LC2-PC30G6-4 Premium-Sound Ceiling Loudspeaker Click to enlarge the picture
Contents of the user manual for the Bosch LC2-PC30G6-4 Premium-Sound Ceiling Loudspeaker
- Product category: Installed Speakers Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Installed Speakers
|
User manual for the Bosch LC2-PC30G6-4 Premium-Sound Ceiling Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The Bosch LC2-PC30G6-4 Premium-Sound Ceiling Loudspeaker (30W) is a 30 Watt loudspeaker designed for use in voice alarm systems and other safety applications. The loudspeaker features ease of installation (including a circular template for marking a ceiling cutout, high maximum output, and wide coverage angle, making it an ideal solution for building alarm systems. Premium-Sound Ceiling Loudspeaker - 4.0" coaxial two-way speaker
- Waveguide coupled Ti tweeter
- Full bandwidth overload protection
- Front baffle wattage tap adjustment
- BS 5839-8 and EN 60849 compliant
Voice Alarm Loudspeaker - Voice alarm loudspeakers are specifically designed for use in buildings where performance of systems for verbal evacuation announcements is governed by regulations. The LC2-PC30G6-4 is designed for use in voice alarm systems and is compliant with British Standard BS 5839-8 and EN 60849
Protection - The loudspeaker has built-in protection to ensure that, in the event of a fire, damage to the loudspeaker does not result in failure of the circuit to which it is connected. In this way, system integrity is maintained; ensuring loudspeakers in other areas can still be used to inform people of the situation. It is standard fitted with a back-can enclosure to increase protection of the cable termination
- The loudspeaker has an emergency compliant ceramic screw-terminal block and thermal fuse
Certifications & Approvals - All Bosch loudspeakers are designed to withstand operating at their rated power for 100 continuous hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that they can withstand two times their rated power for short durations
UPC: 800549173063 In the Box Bosch LC2-PC30G6-4 Premium-Sound Ceiling Loudspeaker (30W) 7.188" (183 mm) Circular Cut-Out Template Tile Bridge/C-Ring Paint Shield Installation Instructions Circular Marking Template 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch LC2-PC30G6-4 Premium-Sound Ceiling Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch LC2-PC30G6-4 Specs | | | Power | Rated Power: 30 / 15 / 7.5 / 3.75 W (1.88 W only, 70 V)
Max Power: 50 W | | SPL | 101/86 dB | | Angle of Coverage | 130° | | Frequency Range | 65 Hz to 20 kHz | | Rated Voltage | 70 or 100 V | | Impedance | 167/333/8 ohm | | Transducer | LF Transducer: 4.0" (10.0 cm) polypropylene cone
HF Transducer: 0.75" (1.9 cm) ti mylar laminate | | Connector | 3-pole ceramic screw terminal block | | | | Color | White | | Material | Baffle: ABS (UL94V0)
Back-Can: Zinc-plated steel
Grille: Powder coated steel | | Temperature / Humidity | Operating Temperature: -13 to 131 ºF (-25 to 55 ºC)
Storage Temperature: -40 to 158 ºF (-40 to 70 ºC)
Relative Humidity: < 95% | | Diameter | 8.3" (21.0 cm) | | Maximum Depth | 6.9" (17.6 cm) | | Ceiling Thickness | 0.16 to 1.0" (0.4 to 2.5 cm) | | Mounting Area | 7.188 + 0.2" (183 + 5 mm) | | Weight | 6.0 lb (2.7 kg) |
