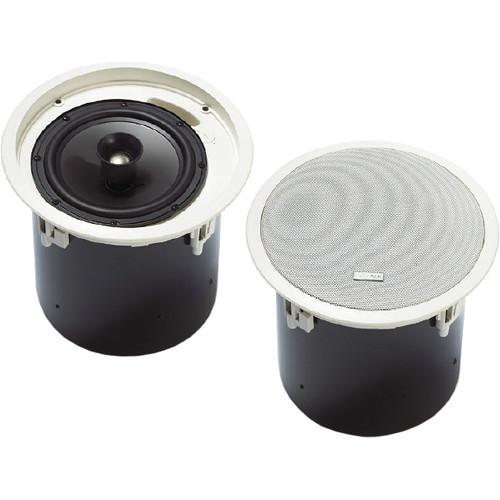

Bosch LC2-PC30G6-8 Premium-Sound Ceiling Loudspeaker

Search your instruction manual in PDF to download

User Manual for Bosch LC2-PC30G6-8 Premium-Sound Ceiling Loudspeaker

Click to enlarge the picture
Bosch LC2-PC30G6-8 Premium-Sound Ceiling Loudspeaker Contents of the user manual for the Bosch LC2-PC30G6-8 Premium-Sound Ceiling Loudspeaker
  • Product category: Installed Speakers Bosch
  • Brand: Bosch
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Bosch Installed Speakers

User manual for the Bosch LC2-PC30G6-8 Premium-Sound Ceiling Loudspeaker contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Bosch product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!



Product description

The Bosch LC2-PC30G6-8 Premium-Sound Ceiling Loudspeaker (30W) is a 30 Watt loudspeaker designed for use in voice alarm systems and other safety applications. The loudspeaker features ease of installation (including a circular template for marking a ceiling cutout, high maximum output, and wide coverage angle, making it an ideal solution for building alarm systems.

Premium-Sound Ceiling Loudspeaker

  • 4.0" coaxial two-way speaker
  • Waveguide coupled Ti tweeter
  • Full bandwidth overload protection
  • Front baffle wattage tap adjustment
  • BS 5839-8 and EN 60849 compliant

Voice Alarm Loudspeaker

  • Voice alarm loudspeakers are specifically designed for use in buildings where performance of systems for verbal evacuation announcements is governed by regulations. The LC2-PC30G6-4 is designed for use in voice alarm systems and is compliant with British Standard BS 5839-8 and EN 60849

Protection

  • The loudspeaker has built-in protection to ensure that, in the event of a fire, damage to the loudspeaker does not result in failure of the circuit to which it is connected. In this way, system integrity is maintained; ensuring loudspeakers in other areas can still be used to inform people of the situation. It is standard fitted with a back-can enclosure to increase protection of the cable termination
  • The loudspeaker has an emergency compliant ceramic screw-terminal block and thermal fuse

Certifications & Approvals

  • All Bosch loudspeakers are designed to withstand operating at their rated power for 100 continuous hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that they can withstand two times their rated power for short durations
UPC: 800549173070 In the Box Bosch LC2-PC30G6-8 Premium-Sound Ceiling Loudspeaker (30W)
  • 10.75" (272 mm) Circular Cut-Out Template
  • Tile Bridge/C-Ring
  • Paint Shield
  • Installation Instructions
  • Circular Marking Template
  • 3-Year Limited Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Bosch LC2-PC30G6-8 Premium-Sound Ceiling Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Bosch LC2-PC30G6-8 Specs

    Power Rated Power: 30 / 15 / 7.5 / 3.75 W (1.88 W only, 70 V)
    Max Power: 75 W
    SPL 106/91 dB
    Angle of Coverage 110°
    Frequency Range 50 Hz to 20 kH
    Rated Voltage 70 or 100 V
    Impedance 167/333/8 ohm
    Transducer LF Transducer: 8.0" (20.0 cm) polypropylene cone
    HF Transducer: 1.0" (2.5 cm) ti mylar laminate
    Connector 3-pole ceramic screw terminal block
    Color White
    Material Baffle: ABS (UL94V0)
    Back-Can: Zinc-plated steel
    Grille: Powder coated steel
    Temperature / Humidity Operating Temperature: -13 to 131 ºF (-25 to 55 ºC)
    Storage Temperature: -40 to 158 ºF (-40 to 70 ºC)
    Relative Humidity: < 95%
    Diameter 11.8" (30.0 cm)
    Maximum Depth 10.0" (25.4 cm)
    Ceiling Thickness 0.16 to 1.0" (0.4 to 2.5 cm)
    Mounting Area 10.75 + 0.2" (272 + 5 mm)
    Weight 11.0 lb (5 kg)

    Rating

    50% users recommend this product to others. And what about you?
    Rating: 2.5 of 5

    This product has already been rated by 10 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Bosch LC2-PC30G6-8 Premium-Sound Ceiling Loudspeaker

    Subject: Challenge, treat urgently
    Date: 06.03.2021 00:06:04Name: Godwin
    Am to install this LC2-PC30G6-8 to a finished ceiling whose depth can't take the whole speaker. Pls what the way out of this mess. Because the ceiling is cut already
