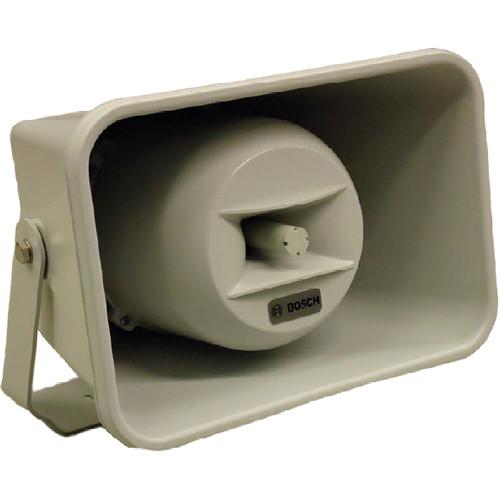

User Manual for Bosch LH1-UC30E Music Horn Loudspeaker Click to enlarge the picture
Contents of the user manual for the Bosch LH1-UC30E Music Horn Loudspeaker
- Product category: Installed Speakers Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Installed Speakers
|
User manual for the Bosch LH1-UC30E Music Horn Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The Bosch LH1-UC30E Music Horn Loudspeaker features good speech and music reproduction and can be used in areas of high humidity, making it ideal for use outdoors in sporting venues as well as exhibition areas and passenger terminals. The horn's rectangular design accommodates two transducers - one for low frequencies and one for high frequencies - resulting in clear sound. Functions - The rectangular horn features a unique combination of a re-entrant horn with two transducers, one for low and the other for high frequencies, resulting in breathtaking sound clarity
- The horn is weather protected and can be used in areas with high humidity. It is therefore suitable for outdoor applications such as sport grounds, sports stadiums, leisure parks, exhibition areas and passenger terminals, as well as for indoor public address
- The ABS horn loudspeaker and aluminum bracket are finished in light grey (RAL 7035)
- The LH1-UC30E is designed for use in voice alarm systems and compliant with EVAC standards
- The horn loudspeaker has built-in protection to ensure that, in the event of a fire, damage to the loudspeaker does not result in failure of the circuit to which it is connected. In this way, system integrity is maintained, ensuring loudspeakers in other areas can still be used to inform people of the situation. The horn loudspeaker has ceramic terminal blocks, thermal fuse and heat resistant high temperature wiring
- The loudspeaker has provisions for internal mounting of the optional line/loudspeaker supervision boards
Certifications & Approvals - All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that they can withstand two times their rated power for short durations. This ensures extra reliability under extreme conditions, leading to higher customer satisfaction, longer operating life, and much less chance of failure or performance deterioration
UPC: 800549585903 In the Box Bosch LH1-UC30E Music Horn Loudspeaker PG13.5 Cable Gland (Fitted) 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch LH1-UC30E Music Horn Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch LH1-UC30E Specs | | | Power | Maximum Power: 45 W
Rated Power: 30 W | | Power Taps | 30/15/7.5/3.75 W | | SPL | 115/100 dB | | Frequency Range | 212 Hz to 20 kHz | | Angle of Coverage | Horizontal: 68/68°
Vertical: 98/118° | | Input Voltage | 70/100 V | | Impedance | 167/333 ohm | | Connector | 6-pole screw terminal | | | | Material | Horn: ABS
Bracket: Aluminum | | Color | Light gray | | Temperature / Humidity | Operating Temperature: -13 to 131 ºF (-25 to 55 ºC)
Storage Temperature: -40 to 158 ºF (-40 to 70 ºC)
Relative Humidity: < 95% | | Cable Diameter | 0.24 to 0.47" (6.0 to 12.0 mm) | | Dimensions (WxDxH) | 14.56 x 13.93 x 10.04" (37.0 x 35.4 x 25.5 cm) | | Weight | 12.45 lb (5.5 kg) | | | | Package Weight | 14.45 lb | | Box Dimensions (LxWxH) | 16.0 x 15.2 x 10.8" |
