User Manual for Bosch LHM 0606 00 6W Ceiling Loudspeaker Click to enlarge the picture
Contents of the user manual for the Bosch LHM 0606 00 6W Ceiling
- Product category: Installed Speakers Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Installed Speakers
|
User manual for the Bosch LHM 0606 00 6W Ceiling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|

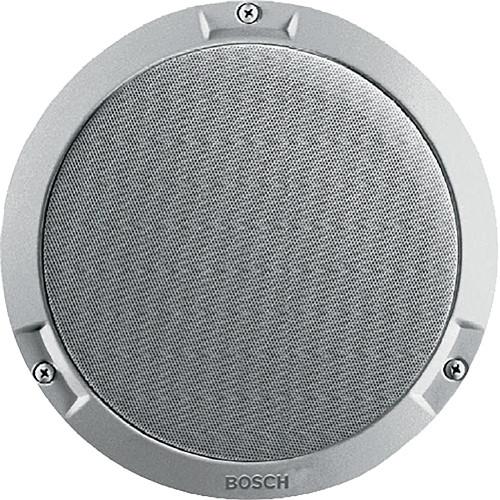

Product description The Bosch LHM 0606/00 6W Ceiling Loudspeaker (Screw-Mounted) is a general purpose flush-mounted ceiling loudspeaker that can be used for both voice and music. The speaker is easy to install and provides an unobtrusive public address system for indoor venues such as department stores, schools, gymnasiums, hotels, and restaurants. - General Purpose Cost-Effective Loudspeaker
- The loudspeaker is easy to install and has a simple power setting
Functions - The speaker is an economic flush-mount ceiling loudspeaker for for general purpose applications. This full range loudspeaker is suitable for both speech and music reproduction in shops, department stores, schools, offices, sports halls, hotels and restaurants
- The speaker assembly consists of a single-piece, 6W dual cone loudspeaker and frame, with a 100 V, matching transformer mounted on the back. A circular metal grille is an integrated part of the front. The appearance and neutral white color has been selected to be unobtrusive in virtually all interiors
Certifications & Approvals - All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that they can withstand two times their rated power for short durations. This ensures extra reliability under extreme conditions, leading to higher customer satisfaction, longer operating life, and much less chance of failure or performance deterioration
UPC: 800549164788 In the Box Bosch LHM 0606/00 6W Ceiling Loudspeaker (Screw-Mounted) 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch LHM 0606 00 6W Ceiling Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch LHM 0606/00 Specs | | | Power | Maximum Power: 9 W
Rated Power: 6.0/3.0/1.5 W | | SPL | At 6/1 W (1 kHz, 1 m): 94/86 dB
At 6/1 W (4 kHz, 1 m): 106/98 dB | | Frequency Range | 80 Hz to 18 kHz | | Angle of Coverage | 175/55° | | Rated Voltage | 100 V | | Impedance | 1667 ohm | | Connection | Flying leads | | Certifications | CE, EN 60065 | | | | Temperature / Humidity | Operating Temperature: -13 to 131 ºF (-25 to 55 ºC)
Storage Temperature: -40 to 158 ºF (-40 to 70 ºC)
Relative Humidity: < 95% | | Color | White | | Diameter | 7.8" (199 mm) | | Speaker Diameter | 6.0" (152.4 mm) | | Maximum Depth | 2.8" (70.5 mm) | | Mounting Area | 6.5+0.20" (165+5.0 mm) | | Weight | 1.37 lb (620 g) | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 8.3 x 8.1 x 2.7" |
