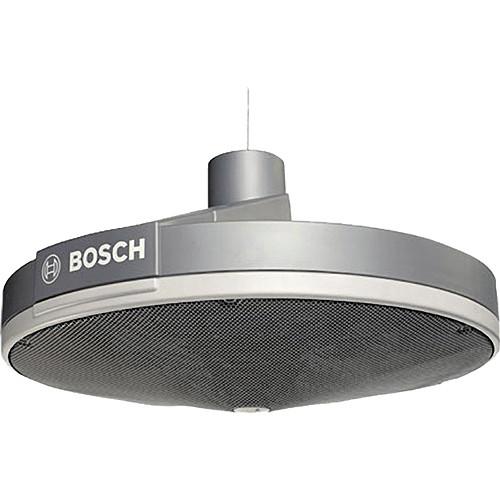

User Manual for Bosch LS1-OC100E-1 Hemi-Directional Loudspeaker Click to enlarge the picture
Contents of the user manual for the Bosch LS1-OC100E-1 Hemi-Directional Loudspeaker
- Product category: Installed Speakers Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Installed Speakers
|
User manual for the Bosch LS1-OC100E-1 Hemi-Directional Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The Bosch LS1-OC100E-1 Hemi-Directional Loudspeaker features a wide opening angle and high pressure level ideal for large rooms with high ceilings. The speaker's good speech intelligibility and fire-resistant terminal blocks make it an ideal choice for safety applications such as evacuation announcements. Voice Alarm Loudspeaker - For large area, high-ceiling applications
- Provision for internal mounting of the optional line/loudspeaker supervision board
- Self-restoring tweeter overload protection
- Optional bracket for fixed mounting
- BS 5839-8 and EN 60849 compliant
- The LS1-OC100E-1 is used in voice alarm systems and is compliant with emergency standards. The loudspeaker has built-in protection to ensure that a fire-damaged loudspeaker does not cause failure of the connected circuit. This ensures system integrity, meaning loudspeakers in other areas can still be used to inform people of the fire. The loudspeaker has ceramic terminal blocks, a thermal fuse and heat-resistant, high-temperature wiring
Materials - The loudspeaker is made of high-impact ABS TSG, self-extinguishing according to class UL 94 V 0 and with the highest flame retardant rating (UL 94 5VA). The loudspeaker has a white and silver finish; the metal grille has a silver finish. All metal parts are zinc plated
Drivers - This acoustically innovative loudspeaker accommodates 14 drivers in combination with advanced positioning and filtering
UPC: 800549582742 In the Box Bosch LS1-OC100E-1 Hemi-Directional Loudspeaker 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch LS1-OC100E-1 Hemi-Directional Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch LS1-OC100E Specs | | | Power | Maximum Power: 150 W
Rated Power: 100 W | | Power Taps | 100/50/25 W | | SPL | 110/90 dB | | Frequency Range | 60 Hz to 20 kHz | | Angle of Coverage | Horizontal: 175/96°
Vertical: 180/137° | | Voltage | 100/70/28.3 V | | Impedance | 100/50/8 ohm | | Certifications | Safety: EN 60065
Emergency: BS 5839‑8 / EN 60849
Self‑Extinguishing: UL 94 V 0
Flame Retardant: UL 94 5VA
Water & Dust Protection: EN 60529 IP 42
Chlorine Resistant: IEC 60068/2‑60
Mechanical Impact: EN 50102 IK 07 | | | | Connectors | Ceramic screw terminal | | Material | ABS TSG | | Color | Baffle: White
Top Cover: Silver
Grille: Silver | | Temperature / Humidity | Operating Temperature: -13 to 131 ºF (-25 to 55 ºC)
Storage Temperature: -40 to 158 ºF (-40 to 70 ºC)
Relative Humidity: < 95% | | Dimensions (Diam. x H) | 31.5 x 16.74" (80.0 x 42.5 cm) | | Weight | 59.52 lb (27.0 kg) | | | | Package Weight | 75.0 lb | | Box Dimensions (LxWxH) | 35.0 x 35.0 x 17.3" |
