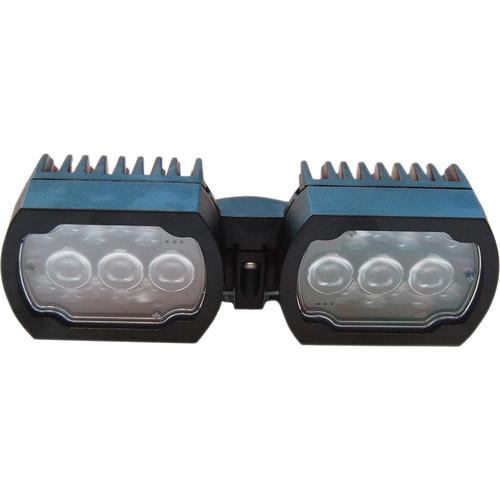

Product description The white MIC IP Starlight 7000i Illuminator from Bosch features a dual-pod housing that incorporates a combination of IR (850nm and 940nm) and white light (5600-6300K) LEDs. When attached to a MIC IP starlight 7000i camera, the illuminator allows detection of objects at a maximum distance of 1476' with infrared (850nm) and 820' with white light. IR arrays with multiple beam angles (ranging from 16 to 47°) provide illumination of a wide area. A MIC camera can steer the IR beam dynamically to match the illumination intensity with its own field of view based on zoom level. The beam intensity can be controlled automatically or manually. Decreasing intensity reduces overexposure.
As ambient light decreases in a scene, the camera switches to monochrome mode and automatically activates the IR LEDs of the illuminator. When IR illuminators are active, the camera's IR focus correction feature is enabled automatically. Covert LEDs (940nm) allow operators to illuminate short-range scenes with LEDs that human eyes can see. Operators have the option to set automatic timeout of white light mode. After this mode times out, the illuminator will return to IR mode. Operators can disable the white light functionality all together or by sector. - Integrated Constant Light technology delivers a consistent level of illumination performance
- White light mode allows operators to capture full scene details in color (operators can turn the white light LEDs on and off)
- IR automatically adjusts beam angle and intensity to match a camera's field of view
- Polycarbonate windows attached to a corrosion-resistant aluminum body
- IP68-rated weather-resistant and IK10-rated vandal-resistant housing
- Field-installable on MIC IP starlight 7000i cameras
- Backward compatible with MIC-7130 and MIC-7230 model MIC cameras
- Camera provides power to the illuminator (no additional power source is required)
In the Box Bosch MIC IP Starlight 7000i Illuminator (White) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch MIC IP Starlight 7000i Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch MIC 7000I Specs | | | Number of LEDs | 12 | | Wavelength | 850/940 nm | | Beam Angle | Adjustable (Vertical x Horizontal)
Narrow: 15 x 16°
Medium: 26 x 28°
Wide: 45 x 47° | | | | LED Array | 6 | | Color Temperature | 5600-6300K | | Beam Angle | Vertical: 15°
Horizontal: 32° | | Light Intensity | 9.8' (3 m): Up to 1000 lux | | | | Power Consumption | 30 W (provided by the MIC7000 camera) | | | | Operating Temperature | -40 to 149°F (-40 to 65°C) | | Starting Temperature | -40°F (-40°C) (Requires 60-minute warm-up prior to operation.) | | Storage Temperature | -76 to 158°F (-60 to 70°C) | | Humidity | 0 to 100% | | Wind Loading | 209 km/h (130 mph) (sustained) (Gusts up to 290 km/h (180 mph))
Camera + installed illuminator accessory: 1.370 coefficient of drag
Effective Projected Area (EPA): 0.96 ft2 (0.089 m2)
Effective Projected Area (EPA) (illuminator accessory only): 0.20 ft2 (0.019 m2) | | Vibration | NEMA TS2 Section 2.2.8 Vibration: 5-30 Hz, (0.5G) | | Shock | IEC 60068-2-27, Half Sine Impulse, 6ms, 40G
NEMA TS 2 Section 2.2.9 Shock (Impact)
Test Half Sine Impulse 11 ms, 10G | | | | IP Rating | IP68 | | IK Rating | IK10 (when attached to a MIC IP starlight 7000i camera) | | Construction Material | Corrosion-resistant aluminum alloy with polycarbonate windows | | IEC | IEC 60529, Type 6P (when attached to camera), IEC 62262 | | Corrosion | Salt Mist Spray (Corrosion Test): ASTM B117 (2000 hours) | | Finish | Chromate-based surface treatment with powder coat paint, sand finish | | Approvals and Certifications | Safety: UL, CE (including EU eco-directive 2009/125/EC, and harmonized norm based on EU regulation 1194/2012)
Illumination Safety: Meets Risk Group 1 exposure limits based on IEC 62471 | | Dimensions | 8.5 x 4.5 x 4.6" / 215 x 115 x 117 mm | | Weight | 2.7 lb / 1.2 kg |
