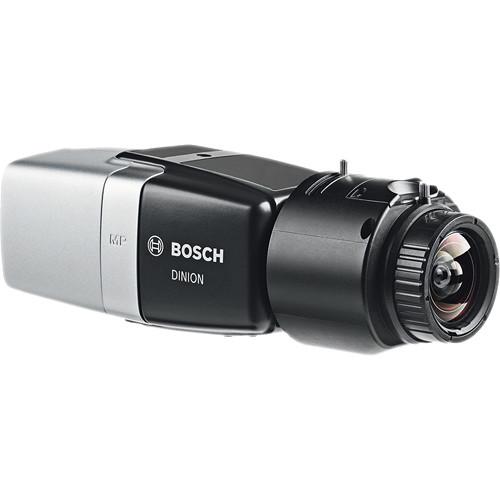

Product description The NBN-80052-BA DINION IP starlight 8000 5MP Box Camera from Bosch features a 1/1.8" CMOS sensor to capture 2K video at up to 30 fps when combined with a compatible lens (available separately). This camera produces multi-megapixel full color video in low-light environments and delivers detailed monochrome images in extreme low-light conditions.
H.264 and MJPEG dual streaming allows proper bandwidth allocation for recording and live viewing. PoE technology eliminates extra cable runs by supplying the power through the RJ45 Ethernet cable.
The camera has advanced image processing techniques including Intelligent Video Analysis (IVA), which tracks and focuses on relevant situations and stores the video in a structured format, allowing you to quickly retrieve the correct data. Intelligent Auto Exposure (IAE) offers front and backlight compensation to provide a clear image. Intelligent Dynamic Noise Reduction (IDNR) decreases bit rates at the source and only uses bandwidth when needed. - The camera features a 97 dB wide dynamic range for 5MP mode (plus an extra 16 dB when combined with Intelligent Auto Exposure)
- Intelligent Auto Exposure (IAE) automatically adjusts the exposure of the camera and provides front light and backlight compensation by automatically adapting to changing light conditions
- Intelligent Dynamic Noise Reduction (IDNR) reduces bit rates by up to 50%
- H.264 and MJPEG dual streaming
- Edge Recording
- Supports microSD cards up to 2TB for local alarm recording
- Bosch Video Management System and video security mobile app provide remote viewing
UPC: 800549728829 In the Box Bosch NBN-80052-BA DINION IP starlight 8000 5MP Box Camera (No Lens) Power Connector Data/Alarm Connector Identification Labels C- to CS-Mount Adapter Ring Limited 3-Year Warranty Brochure PDF 475.1kbsuasccxwsfxartvsurcfxtezbwcdtrtrcabxcr Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch NBN-80052-BA DINION IP starlight 8000 5MP Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch 8000 MP Specs | | | Type | 1/1.8" CMOS | | Total Image Sensor Pixels | 6.1 MP | | | | Lens Mount | CS mount (accepts C-mount lens with adapter ring, included; lens available separately) | | Lens Connector | Standard 4-pin DC-iris connector | | Focus Control | Motorized back-focus adjustment | | Iris Control | Automatic iris control | | | | Dynamic Range | 5.5 MP (4:3) Mode: 97 dB WDR (97+16 dB with IAE)
5 MP (16:9) Mode: 97 dB WDR (97+16 dB with IAE)
1080p Mode: 103 dB WDR (103+16 dB with IAE) | | Sensitivity | 3200K, 89% Reflectivity, 30% IRE, f/1.2
Color 5 MP Mode: 0.0121 lux
Color 1080p Mode: 0.00825 lux
Mono 5 MP Mode: 0.004 lux
Mono 1080p Mode: 0.00275 lux | | | | Video Compression | H.264, MJPEG | | Streaming | Multiple configurable streams in H.264 and MJPEG, configurable frame rate and bandwidth
Regions of Interest (ROI) | | Overall IP Delay | 120 ms minimum, 340 ms maximum | | GOP Structure | IP, IBP, IBBP | | Encoding | Interval: 1 to 30 (25) fps | | Encoder | Regions: Up to 8 areas with encoder quality settings per area | | | | Video Resolution | 5.5 MP (16:9): 2992 x 1680
5 MP (4:3): 2704 x 2032
1080p HD: 1920 x 1080
720p HD: 1280 x 720
Upright 9:16 (Cropped): 400 x 720
D1 4:3 (Cropped): 704 x 480
480p SD: Encoding: 704 x 480; Displayed: 854 x 480
432p SD: 768 x 432
288p SD: 512 x 288
240p SD: Encoding: 352 x 240; Displayed: 432 x 240
144p SD: 256 x 144 | | | | Day/Night | Color, monochrome, auto | | Picture Adjustment | Settings: Contrast, saturation, brightness | | White Balance | 2500 to 10,000K, 4 automatic modes (Standard, SON/SOX, Basic, Dominant color), manual and hold mode | | Shutter | Automatic Electronic Shutter (AES)
Fixed (selectable)
Default shutter | | Backlight Compensation | Off, auto, Intelligent Auto Exposure (IAE) | | Noise Reduction | Intelligent Dynamic Noise Reduction (IDNR) with separate temporal and spatial adjustments | | Contrast Enhancement | On/off | | Sharpness | Sharpness enhancement level selectable | | Privacy Masking | Eight independent areas, fully programmable | | Video Motion Analysis | Intelligent Video Analysis (IVA) | | User Programmable Modes | 9 modes | | Other Functions | Image flip, Pixel counter, Video watermarking, Display stamping | | | | Standard | Audio
G.711, 8 kHz
L16, 16 kHz
AAC-LC, 48 kHz
AAC-LC, 80 kHz | | Signal-to-Noise Ratio (SNR) | > 50 dB | | Audio Streaming | Full-duplex / half duplex | | | | Analog Video Output | SMB connector, CVBS (PAL/NTSC),
1 V p-p, 75 Ohms (service only) | | Audio Line Input | 1 VRMS maximum, 18 kOhms typical | | Audio Line Output | 0.85 VRMS at 1.5 kOhms typical | | Audio Connectors | 1/8" (3.5 mm) mono jack | | Alarm Input | 2 x inputs | | Activation | Alarm Input: 5 VDC nominal; 40 VDC maximum (DC-coupled with 50 kOhms pull-up resistor to 3.3 VDC) (<0.5 V is low; >1.4 V is high) | | Alarm Output | 1 x output | | Voltage Output | Alarm: 30 VAC or 40 VDC maximum
Maximum 0.5 A continuous, 10 VA(resistive load only) | | Ethernet | RJ45 with PoE | | Data Port | RS-232/422/485 | | | | RAM | Internal: 10 sec pre-alarm recording | | Memory Card Slot | Up to 32 GB microSDHC
Up to 2 TB microSDXC card | | Recording | Continuous recording, ring recording, alarm/events/schedule recording | | | | Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP,FTP, Telnet, ARP, DHCP, NTP (SNTP), SNMP (V1, MIB-II), 802.1x, DNS, DNSv6, DDNS, SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication | | Encryption | TLS 1.0, SSL, DES, 3DES, AES (optional) | | Ethernet | 10/100Base-T, auto-sensing, half/full duplex | | Connectivity | ONVIF Profile S, Auto-MDIX | | | | Unit Configuration | Via Web browser or configuration manager | | Firmware Updates | Remotely programmable | | Software | Viewer: Web browser, Bosch video client, or third party software | | System Requirements | Computer with Windows XP/Vista/7 operating system, network access, and Microsoft Internet Explorer version 9.0 or later (32-bit)
Or
Computer with network access and reception software, for example Bosch Video Client and Bosch Video Management System | | | | Power Supply | 12 VDC
PoE 48 VDC nominal | | Current Consumption | 750 mA (12 VDC)
200 mA (PoE 48 VDC) | | Power Consumption | 9 W | | PoE | IEEE 802.3af (802.3at Type 1) Class 3 | | | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Storage Temperature | -22 to 158°F (-30 to 70°C) | | Operating Humidity | 20 to 93% RH | | Storage Humidity | Up to 98% RH | | | | Emission | EN 55022 class B (2010), +AC (2011) FCC: 47 CFR 15, class B (2012-10-1) | | Immunity | EN 50130-4 (PoE, +12 VDC) (2011) EN 50121-4 (2006), +AC: (2008) Chapters 7 & 8 (mains voltage supply requirement) not applicable. If the system in which this camera is used needs to comply with this standard, then the power supply used must comply with the same. | | Alarm | EN 50130-5 class II (2011) | | Safety | EN 60950-1
UL 60950-1 (2nd edition)
CAN/CSA-C 22.2 No. 60950-1 | | Vibration | Camera with 1.1 lb (0.5 kg) lens as per IEC 60068-2-6 (5 m/s2, operational) | | HD | SMPTE 296M-2001 (Resolution: 1280 x 720)
SMPTE 274M-2008 (Resolution: 1920 x 1080) | | Color | Representation: ITU-R BT.709 | | ONVIF Conformance | EN 50132-5-2; IEC 62676-2-3; CE; UL; FCC; CSA | | Certifications | UL, FCC | | | | Tripod Mount | 1/4"-20 UNC on bottom and top | | Dimensions | 3.1 x 2.6 x 5.5" (7.8 x 6.6 x 14 cm) | | Weight | 1.9 lb (0.86 kg) | | | | Package Weight | 2.075 lb | | Box Dimensions (LxWxH) | 7.75 x 4.0 x 3.8" |
