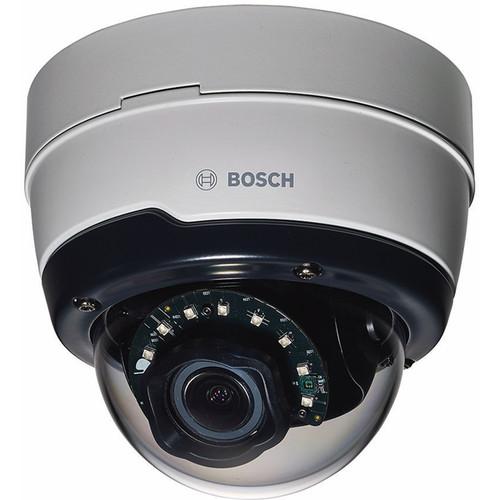

Product description The NDI-50022-A3 2MP Outdoor Vandal-Resistant Network Dome Camera with Night Vision from Bosch has a 1/2.7" CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. IR LEDs around the lens allow the camera to produce clear images of object in complete darkness from up to 50' away. Its 3-10mm varifocal lens has a 117-36° field of view to monitor large rooms and focus in on specific areas of interest. A microSD card slot supports up to a 2TB card (available separately) for local storage. The camera is housed in an IP66- and IK10-rated enclosure for protection against dust, water, corrosion, ice formation, and impact, making it suitable for use outdoors and in high-risk areas. - Captures 1080p video at up to 30 fps
- Mechanical IR cut filter and IR LEDs allows the camera to produce clear images of objects from up to 50' away in complete darkness
- Intelligent Dynamic Noise Reduction actively analyzes the contents of a scene and reduces noise artifacts, thereby reducing network bandwidth and storage requirements
- Area-based encoding helps reduce bandwidth by lowering compression quality in user-defined areas, to only focus on areas with high chances of activity
- H.264 and MJPEG multi-streaming for high-quality playback while optimizing network bandwidth use
- Regions of interest (ROI) and ePTZ to focus in on specified areas
- Two-way audio communication, audio alarm, and tamper and motion detection for added security
- Recording management control via Bosch Video Recording Manager (VRM) and iSCSI (both available separately)
- microSD card slot for local storage
- Cloud-based services supports time- or alarm-based JPEG uploads to cloud storage websites
- Analog video output for simultaneous video streaming via SMB connector
- Mobile app for iOS and Android
- ONVIF-compliant (Profile S, Q, and G) for system compatibility and integration
- IP66-, NEMA 4X-, and IK10-rated enclosure for outdoor use
UPC: 800549749961 In the Box Bosch NDI-50022-A3 2MP Outdoor Vandal-Resistant Network Dome Camera with Night Vision Screw Kit Conduit Adapter Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch NDI-50022-A3 2MP Outdoor Vandal-Resistant Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch NDI-50022-A3 Specs | | | Image Sensor | 1/2.7" progressive scan CMOS sensor | | Active Pixels | 1952 x 1092 (2 MP) | | Sensitivity | At 3200K, Reflectivity 89%, f/1.3, 30 IRE:
Color: 0.24 lux
B&W: 0.05 lux
With IR LEDs On: 0 lux | | Dynamic Range | 76 dB | | Video Resolution | 1080p: 1920 x 1080
720p: 1280 x 720
D1 4:3 (Cropped): 704 x 480
SD Upright (cropped): 400 x 720
480p: Encoding: 704 x 480, Displayed: 854 x 480
432p: 768 x 432
288p: 512 x 288
240p: Encoding: 352 x 240; Displayed: 432 x 240
144p: 256 x 144 | | Focal Length | 3-10mm | | Lens | IR corrected, varifocal | | Iris | DC-iris | | Aperture | f/1.3-360 | | Lens Mount | Board | | Day/Night | Switched mechanical IR filter | | Field of View | Horizontal: 117-36°
Vertical: 61-20° | | | | Day/Night | Color, monochrome, auto | | Adjustable | Contrast, saturation, brightness | | White Balance | 4 automatic modes, manual mode, and measure | | Shutter | Automatic Electronic Shutter (AES), Fixed (1/12 to 1/15000) selectable, default shutter | | Backlight Compensation | On/off | | Noise Reduction | Intelligent Dynamic Noise Reduction with separate temporal and spatial adjustments | | Contrast Enhancement | On/off | | Sharpness | Sharpness enhancement level selectable | | Defog | Intelligent Defog automatically adjusts parameters for best picture in foggy or misty scenes (switchable) | | Privacy Masking | Eight independent areas, fully programmable | | Video Motion Analysis | MOTION+ | | Other Functions | Image mirror, image flip, pixel counter, video watermarking, display stamping, scene modes, location | | Number of IR LEDs and Range | 10 x IR LEDs (high efficiency array, 850 nm), up to 50' (15 m) | | | | Analog Video Out | SMB connector, CVBS (PAL/NTSC), 1 V p-p, 75 Ohms | | Audio Line In | 0.707 VRMS max, 10 kOhms typical, jack connector | | Audio Line Out | 0.707 VRMS at 16 Ohms typical, jack connector | | Alarm Input | 1 x input | | Activation | Short or 5 VDC activation | | Alarm Output | 1 x output | | Alarm Output | 30 VDC, maximum load 0.5 A | | Ethernet | RJ45 | | | | Audio Streaming | Standard: G.711, 8 kHz sampling rate
L16, 16 kHz sampling rate
AAC-LC, 48 kbps at 16 kHz sampling rate
AAC-LC, 80 kbps at 16 kHz sampling rate | | Signal-to-Noise Ratio | >50 dB | | Streaming Method | Full-duplex, half duplex | | Video Streaming | Video compression: H.264 (MP) and MJPEG | | Streams | Multiple configurable streams in H.264 and MJPEG, configurable frame rate and bandwidth, Regions of Interest (ROI) | | Overall IP Delay | Minimum 120 ms, Maximum 340 ms | | GOP Structure | IP, IBP, IBBP | | Interval | 1 to 25/30 ips | | Region | Eight independent areas for setting encoder quality to optimize bit rate | | | | RAM | 10 sec pre-alarm recording | | Memory Card Support | Up to 32 GB microSDHC or 2 TB microSDXC card (both available separately)
SD card of Class 6 or higher is recommended | | Recording | Continuous recording, ring recording, alarm/events/schedule recording | | | | Software Features | Unit Discovery: IP Helper
Unit Configuration: Via web browser or Configuration Manager
Firmware Update: Remotely programmable
Software Viewing: Web browser, video security client, video security app, Bosch Video Management System, Bosch Video Client, or third party software | | | | Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIBII), 802.1x, DNS, DNSv6, DDNS, SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication | | Encryption | TLS 1.2, SSL, DES, 3DES | | Ethernet | 10/100Base-T, auto-sensing, half/full duplex | | Connectivity | Auto-MDIX | | Interoperability | ONVIF Profile S, G, and Q
GB/T 28181 | | | | Input Voltage | 12 VDC or PoE (48 VDC nominal) | | Power Consumption | 6.3 W maximum | | PoE | IEEE 802.3af (802.3at Type 1)
Power Level: Class 2 | | | | Standards | IEC 62471
EN 60950-1
UL 60950-1
UL 60950-22
CAN/CSA-C22.2 NO. 60950-1-03
CAN/CSA-C22.2 NO. 60950-22
EN 50130-4
EN 50130-5
FCC Part15 Subpart B, Class B
EMC directive 2004/108/EC
EN 55022 Class B
EN 55024
AS/NZS CISPR 22 (equal to CISPR 22)
ICES-003 Class B
VCCI J55022 V2/V3
EN 50121-4
EN 60950-22 | | ONVIF | EN 50132-5-2, IEC 62676-2-3 | | Certifications | CE, FCC, UL, cUL, RCM, CB, VCCI | | NEMA Rating | NEMA Type 4X | | IP Rating | IP66 | | IK Rating | IK10 | | | | Operating Temperature | -40 to 122°F (-40 to 50°C)
-30 to 165°F (-34° to 74°C) according to NEMA TS 2-2003 (R2008), para 2.1.5.1 using fig. 2.1 test profile | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 20 to 90% relative humidity, non-condensing | | | | 3-Axis Adjustment | Pan: 350°
Tilt: 130°
Rotation: 330° | | Color | RAL 9004, RAL 9010 | | Dimensions | 5.7 x 5.1" (145 x 131 mm) | | Weight | Approximately 2.43 lb (1.1 kg) | | | | Package Weight | 4.3 lb | | Box Dimensions (LxWxH) | 8.6 x 7.1 x 6.8" |
