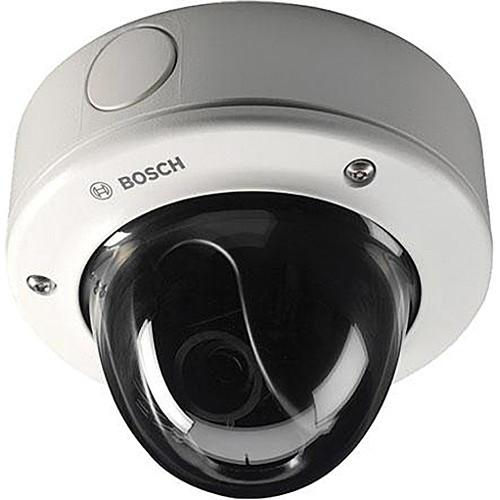

Product description The Bosch NDN-498V03-21P FlexiDome2X Day/Night IP Camera is a vandal-resistant, network dome camera suitable for day & night operation, and features a varifocal lens. With a 1/3" progressive scan CCD, the camera unit produces motion blur-free video in daylight whereas the 2.8-10mm zoom lens takes care of varied area of coverage. 20-bit digital signal and image processing augments this CCTV camera's ability by revealing details in video image.While the NDN-498V03-21P camera switches automatically from day-mode to night mode and vice versa, its NightSense feature in conjunction with SensUp dynamic enables moonlight-viewing (up to 0.0099 lux in monochrome) by increasing the sensitivity of the IP camera. On the other hand, the 2X-Dynamic Engine produces images with high dynamic range from high-contrast daylight visuals. In tricky backlit situations, the network camera's SmartBLC feature compensates for strong back light in order to reproduce a clear view of subject in the foreground. Autoblack feature helps to look through low-contrast scenes due to foggy or smoky weather.IP 66 (NEMA-4X) standard water resistance makes the NDN-498V03-21P camera ideal for outdoor use while the unit's cast aluminum casing, polycarbonate dome and hardened inner liner withstand up to the equivalent of 120 lb (55kg) force, making it suitable for security surveillance. Six pre-programmed operating modes are available for individual situations, and the modes are fully programmable. Private Masking feature of the NDN-498V03-21P allows masking/blocking of four different privacy zones or specific parts of a scene which can be pre-programmed by the users.The NDN-498V03-21P camera can simultaneously output two H.264 video streams along with one M-JPEG stream onto a network. The latter stream can further be integrated with third-party JPEG or M-JPEG-compatible video management systems. Captured video content can be accessed in a variety of ways such as using a web browser on a PC, with VIDOS or Bosch Video Management Systems (BVMS), or with Bosch's DiBos Digital Video Recorder.Basic video content analysis features are integrated into the camera via the Motion+ video analysis system that incorporates a motion analysis algorithm which provides object size filtering and advanced tamper detection capabilities.Three power options - PoE (Power-over-Ethernet), 24 VAC, and 12 VDC increase its flexibility, and a UPS can also be used for continuous operation even during a power failure. The NDN-498V03-21P can be configured either over IP or by using on-body control buttons. When a new firmware becomes available, the FlexiDome camera can be remotely upgraded without a need to uninstall it physically. The NDN-498V03-21P conforms to the Open Network Video Interface Forum (ONVIF) specification for smooth interoperability between network video products. Among other notable features are built-in video motion detection, full support for iSCSI recording and internet streaming, and flush mounting option. - Vandal-resistant, network dome camera suitable for day & night operation
- 1/3" progressive scan CCD offers reduced motion blur
- 2.8-10mm varifocal lens for variable field of coverage
- 20-bit digital signal and image processing reveal details in video image
- Automatically switches modes for day/night operation
- NightSense feature along with SensUp dynamic increases the FlexiDome2X Day/Night IP camera's sensitivity to view in up to 0.0099 lux in monochrome
- 2X-Dynamic engine reproduces images with wide dynamic range
- SmartBLC feature improves backlit images
- Offers Autoblack feature for low-contrast scenes
- Vandal-resistant cast aluminum casing with polycarbonate dome and hardened inner liner withstand up to 120lb (55kg) force
- Complies with IP 66 (NEMA-4X) water resistance standards enabling outdoor use
- Programmable private masking to mask up to four different parts of a scene
- Provides tri-stream video (two H.264 video streams along with one M-JPEG stream simultaneously)
- Provides M-JPEG video stream integration with JPEG or M-JPEG-compatible video management systems
- Offers six pre-programmed operating modes for typical applications along with manual full programming capability to optimize the mode for custom requirements
- Integrates basic video content analysis features via Motion+ video analysis system
- Incorporates a motion analysis algorithm which provides object size filtering and advanced tamper detection capabilities
- Built-in video motion detection and additional processing power for optional video content analysis systems
- Configurable either over IP or by using on-body control buttons
- Offers remote firmware upgrade option eliminating the need to physically uninstall the unit
- Conforms to ONVIF specifications for interoperability between network video products regardless of manufacturer
- Three power options- PoE (Power-over-Ethernet), 24 VAC, and 12 VDC increase its flexibility, and a UPS can also be used for continuous operation even during a power failure
- Secured access with password protection
- Full support for iSCSI recording
- Includes H.264 compression, bandwidth throttling, and multicasting capabilities
- Operating temperature without heater on: -20 ºC to +50 ºC (-4 ºF to +122 ºF)
- Suitable for indoor as well as outdoor use via support for flush mounting option
In the Box Bosch NDN-498V03-21P FlexiDome2X Day/Night IP Camera Lens Adjustment Cap (focus aid) Safety Instructions Quick Install Guide Mini DVD-ROM with Manuals, Software, and Tools Mounting Hardware Kit + Screwdriver Bit RJ45 Network Connector Template for Flush Mount Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch NDN-498V03-21P FlexiDome2X Day Night IP Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch NDN-498 Specs | Signal System | NTSC | | Sensor | 1/3" CCD, WDR, dual shutter | | Pixels | 768 x 494 | | Compression | H.264 (ISO/IEC 14496-10); M-JPEG, JPEG | | Data Rate | 9.6 Kbps to 6 Mbps | | Resolution | 4CIF: 704 x 480 (30 ips)
CIF: 352 x 240 (30 ips) | | Delay | Overall IP Delay: Min. 120 ms, Max. 240 ms | | GOP Structure | I, IP | | Frame Rate | 1 to 60 H.264
1 to 30 M-JPEG | | Video Output | Analog composite for service (2.5mm jack) | | Horizontal Resolution | 540 TVL | | Signal to Noise Ratio | 50 dB | | Sensitivity | Color
30 IRE: 0.28 Lux
50 IRE: 0.621 Lux
100 IRE: 2.48 Lux
Color + 10x SensUp
30 IRE: 0.028 Lux
50 IRE: 0.062 Lux
100 IRE: 0.248 Lux
Mono
30 IRE: 0.099 Lux
50 IRE: 0.23 Lux
100 IRE: 1.01 Lux
Mono + 10x SensUp
30 IRE: 0.0099 Lux
50 IRE: 0.023 Lux
100 IRE: 0.1 Lux | | Controls | Day/Night: Color, Mono, Auto
Modes: 6 preset programmable modes
Dynamic Range: 120 dB (20-bit image processing)
Signal-to-noise Ratio: > 50 dB
SmartBLC: On (includes 2X-Dynamic ) / Off
Gain: AGC On or Off (0 - 30 dB) selectable
White Balance: ATW (2500 to 10000 K), ATWHold
Shutter: Auto 1/60 to 1/50000 automatic flickerless, fixed selectable
Sensitivity up: Adjustable from Off up to 10x
Autoblack: Automatic continuous, Off
Dynamic Noise Reduction: Auto, On/off selectableSharpness: Sharpness enhancement level selectable
Peak White Invert On/Off
Privacy Masking: Four independent areas, fully programmable
Video Motion Analysis: Motion+ or IVA
Test Pattern Generator: Color bars 100%, Grayscale 11-step, Sawtooth 2H, Checker board, Cross hatch, UV plane
Synchronization: Internal, Line Lock, selectable
Controls: OSD with soft-key operation (multi-lingual) | | Audio | Standard G.711: 300 Hz to 3.4 kHz at 8 kHz sampling rate
Signal-to-noise ratio: > 50 dB | | Audio I/O | Audio: 1 x mono line in, 1 x mono line out
Signal line in: 9 kOhm typical, 5.5 Vpp max
Signal line out:
3.0 Vpp at 10 kOhm typical
2.3 Vpp at 32 Ohm typical
1.7 Vpp at 16 Ohm typical | | Alarm Inputs | Alarm: 1 non-isolated closing contact input
Activation voltage: +5 VDC to +40 VDC (+3.3 VDC with DC-coupled 22 kOhm pull-up resistor) | | Relay Outputs | Relay: 1 output
Voltage: 30 VAC or +40 VDC
Maximum 0.5 A continuous, 10VA | | Software Control | Unit Configuration: Via web browser or Configuration Manager
Flicker Control: 50/60 Hz, selectable
Software update: Flash ROM, remote programmable | | Network Protocol | RTP, Telnet, UDP, TCP, IP, HTTP, HTTPS, FTP, DHCP, IGMP V2/V3, ICMP, ARP, SMTP, SNTP, SNMP, 802.1x, UPnP | | Encryption | TLS 1.0, SSL, AES (optional) | | Ethernet | STP, 10/100 Base-T, auto-sensing, half/full duplex, RJ45 | | PoE | IEEE 802.3af compliant | | Lens | Focal Length: 2.8-10mm mm
Type: IR corrected
Zoom: manual
Focus: manual
Iris: Automatic iris control
Viewing angle: Wide 100.8 x 73.7° (H x V) / Tele 28.5 x 21.4° (H x V) | | Power Requirements | 24 VAC ±10% 60 Hz
12 VDC ±10%
Power-over-Ethernet | | Power Consumption | 550 mA / 700 mA IVA (12 VDC)
550 mA / 700 mA IVA (24 VAC)
200 mA (PoE 48 VDC) | | Construction | Mounting: Flush mount or surface mount
Color: White (RAL9010) trim ring with black inner liner
Adjustment range: 360º pan, 90º tilt, ±90º azimuth
Dome bubble: Polycarbonate, clear with UV blocking antiscratch coating
Trim ring: Aluminum | | IP Rating | IP 66 and NEMA‑4X | | Dimensions (Diam. x H) | Surface Mount: 6.2 x 4.9" (158 x 124mm)
Flush Mount: 6.21 x 3.3" (158 x 84mm) - exposed portion | | Weight | Surface Mount: 2.8 lb (1.3 kg)
Flush Mount: 1.5 lb (0.7 kg) | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 9.3 x 8.5 x 7.5" |
