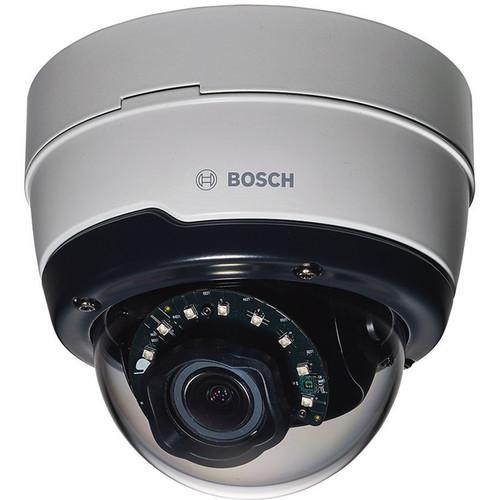

User Manual for Bosch NDN-50022-A3 FLEXIDOME Outdoor 5000 HD D N H.264 Vandal-Resistant IP Dome Camera with 3-10mm F1.3 Lens Click to enlarge the picture
Contents of the user manual for the Bosch NDN-50022-A3 FLEXIDOME Outdoor 5000 HD
- Product category: Wired IP Cameras Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Wired IP Cameras
|
User manual for the Bosch NDN-50022-A3 FLEXIDOME Outdoor 5000 HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The NDN-50022-A3 FLEXIDOME Outdoor 5000 HD D/N H.264 Vandal-Resistant IP Dome Camera from Bosch incorporates a 1/2.7" CMOS sensor that capture clear images in HD resolution. The camera uses Intelligent Dynamic Noise Reduction which actively analyzes the contents of a scene and reduces noise artifacts accordingly. The multi-streaming feature delivers various H.264 streams together with an MJPEG stream. These streams facilitate bandwidth-efficient viewing and recording as well as integration with third-party video management systems.Two-way audio allows the operator to communicate with visitors or intruders via an external audio line input and output. The Mic roSD card slot supports up to 2TB of storage capacity. The camera incorporates mechanical filter technology for vivid daytime color and exceptional night-time imaging while maintaining sharp focus under all lighting conditions.Ideal for outdoor use, the IK10-rated design is suitable for installations where a vandal resistance is important. The camera is protected against water and dust to IP66 standards. The varifocal lens allows you to choose the coverage area to best suit your application. The Bosch video security mobile app has been developed to enable access anywhere to HD surveillance images, allowing you to view live images from any location. The app is designed to give you complete control of all your cameras, from panning and tilting to zoom and focus functions. - Vandal-Resistant Outdoor Dome with Varifocal Lens
- Ideal for outdoor use, the IK10-rated design is suitable for installations where a vandal resistance is important. The camera is protected against water and dust to IP66 standards. The varifocal lens allows you to choose the coverage area to best suit your application. Mounting options are numerous, including surface, wall, and suspended-ceiling mounting.
- Intelligent Dynamic Noise Reduction
- The camera uses Intelligent Dynamic Noise Reduction which actively analyzes the contents of a scene and reduces noise artifacts accordingly. The low-noise image and the efficient H.264 compression technology provide clear images while reducing bandwidth and storage by up to 50% compared to other H.264 cameras. This results in reduced-bandwidth streams that still retain a high image quality and smooth motion. The camera provides the most usable image possible by cleverly optimizing the detail-to-bandwidth ratio.
- Area-based Encoding
- Area-based encoding is another feature which reduces bandwidth. Compression parameters for up to eight user-definable regions can be set. This allows uninteresting regions to be highly compressed, leaving more bandwidth for important parts of the scene.
- Multiple Streams
- The innovative multi-streaming feature delivers various H.264 streams together with an M‑JPEG stream. These streams facilitate bandwidth-efficient viewing and recording as well as integration with third-party video management systems. Depending on the resolution and frame rate selected for the first stream, the second stream provides a copy of the first stream or a lower resolution stream. The third stream uses the I-frames of the first stream for recording; the fourth stream shows a JPEG image at a maximum of 10 Mb/s.
- Regions of Interest and E-PTZ
- Regions of Interest (ROI) can be user defined. The remote E-PTZ (Electronic Pan, Tilt and Zoom) controls allow you to select specific areas of the parent image. These regions produce separate streams for remote viewing and recording. These streams, together with the main stream, allow the operator to separately monitor the most interesting part of a scene while still retaining situational awareness.
- Two-Way Audio and Audio Alarm
- Two-way audio allows the operator to communicate with visitors or intruders via an external audio line input and output. Audio detection can be used to generate an alarm if needed.
- Tamper and Motion Detection
- A wide range of configuration options is available for alarms signaling camera tampering. A built-in algorithm for detecting movement in the video can also be used for alarm signaling.
- Storage Management
- Recording management can be controlled by the Bosch Video Recording Manager (VRM) or the camera can use iSCSI targets directly without any recording software.
- Edge Recording
- The microSD card slot supports up to 2TB of storage capacity. A microSD card can be used for local alarm recording. Pre-alarm recording in RAM reduces recording bandwidth on the network, or - if microSD card recording is used - extends the effective life of the storage medium.
- Cloud-Based Services
- The camera supports time-based or alarm-based JPEG posting to four different accounts. These accounts can address FTP servers or cloud-based storage facilities (for example, Dropbox). Video clips or JPEG images can also be exported to these accounts. Alarms can be set up to trigger an e-mail or SMS notification so you are always aware of abnormal events.
- Easy Installation
- Power for the camera can be supplied via a Power-over-Ethernet compliant network cable connection. With this configuration, only a single cable connection is required to view, power, and control the camera. Using PoE makes installation easier and more cost effective, as cameras do not require a local power source. The camera can also be supplied with power from +12 VDC power supplies. For trouble-free network cabling, the camera supports Auto-MDIX which allows the use of straight or crossover cables.
- True Day/Night Switching
- The camera incorporates mechanical filter technology for vivid daytime color and exceptional night-time imaging while maintaining sharp focus under all lighting conditions.
- Hybrid Mode
- An analog video output enables the camera to operate in hybrid mode. This mode provides simultaneous high resolution HD video streaming and an analog video output via an SMB connector. The hybrid functionality offers an easy migration path from legacy CCTV to a modern IP-based system.
- Access Security
- Password protection with three levels and 802.1x authentication is supported. To secure Web browser access, use HTTPS with a SSL certificate stored in the camera. The video and audio communication channels can be independently AES encrypted with 128-bit keys by installing the optional encryption site license.
- Complete Viewing Software
- There are many ways to access the camera's features: using a web browser, with the Bosch Video Management System, with the free-of-charge Bosch Video Client or Video Security Client, with the video security mobile app, or via third-party software.
- Video Security App
- The Bosch video security mobile app has been developed to enable anywhere access to HD surveillance images allowing you to view live images from any location. The app is designed to give you complete control of all your cameras, from panning and tilting to zoom and focus functions.
- System Integration
- The camera conforms to the ONVIF Profile S specification. Compliance with this standard guarantees inter-operability between network video products regardless of manufacturer. Third-party integrators can easily access the internal feature set of the camera for integration into large projects.
UPC: 800549749954 In the Box Bosch NDN-50022-A3 FLEXIDOME Outdoor 5000 HD D/N H.264 Vandal-Resistant IP Dome Camera with 3-10mm F1.3 Lens Screw Kit Desiccant Conduit Adapter Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch NDN-50022-A3 FLEXIDOME Outdoor 5000 HD D N H.264 Vandal-Resistant IP Dome Camera with 3-10mm F1.3 Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch NDN-50022-A3 Specs | | | Sensor Type | 1/2.7" CMOS | | Active Pixels | 1952 x 1092 (2 MP) | | Sensitivity | At 3200K, reflectivity 89%, F1.5, 30IRE
Color: 0.24 lux
Mono: 0.05 lux | | Dynamic Range | 76 dB | | Video Resolution | 1080p HD: 1920 X 1080
720p HD: 1280 x 720
D1 4:3 (cropped): 704 x 480
SD Upright 9:16 (cropped): 400 x 720
480p SD: Encoding: 704 x 480; Displayed: 854 x 480
432p SD: 768 x 432
288p SD: 512 x 288
240p SD: Encoding: 352 x 240; Displayed: 432 x 240
144p SD: 256 x 144 | | | | Day/Night | Color, Monochrome, Auto | | Adjustable | Contrast, Saturation, Brightness | | White Balance | 4 automatic modes, manual mode and measure | | Shutter | Automatic Electronic Shutter (AES); Fixed (1/12 to 1/15000) selectable; Default shutter | | Backlight Compensation | On/off | | Noise Reduction | Intelligent Dynamic Noise Reduction with separate temporal and spatial adjustments | | Contrast Enhancement | On/off | | Sharpness | Sharpness enhancement level selectable | | Defog | Intelligent Defog automatically adjusts parameters for best picture in foggy or misty scenes (switchable) | | Privacy Masking | Eight independent areas, fully programmable | | Video Motion Analysis | MOTION+ | | Other Functions | Image mirror, Image flip, Pixel counter, Video watermarking, Display stamping, Scene modes, Location | | | | Lens Type | 3 to 10 mm Automatic Varifocal (AVF) lens, IR corrected, DC Iris F1.3 - 360 | | Lens Mount | Board mounted | | Adjustment | Motorized zoom/focus | | Iris Control | Automatic iris control | | Day/Night | Switched mechanical IR filter | | Maximum HFOV | 36° - 117°
Vertical field of view: 20° - 61° | | | | Analog Video Out | SMB connector, CVBS (PAL/NTSC), 1 Vpp, 75 Ohm | | Audio Line In | 0.707 VRMS max, 10 kOhm typical, jack connector | | Audio Line Out | 0.707 VRMS at 16 Ohm typical, jack connector | | Alarm Input | 1 input | | Activation | Short or 5 VDC activation | | Alarm Output | 1 output | | Alarm Output | 30 VDC, maximum load 0.5 A | | Ethernet | RJ-45 | | | | Audio Streaming | Standard: G.711, 8 kHz sampling rate
L16, 16 kHz sampling rate
AAC-LC, 48 kbps at 16 kHz sampling rate
AAC-LC, 80 kbps at 16 kHz sampling rate | | Signal-to-Noise Ratio | >50 dB | | Streaming Method | Full-duplex / half duplex | | Video Streaming | Video compression: H.264 (MP); MJPEG | | Streaming | Multiple configurable streams in H.264 and MJPEG, configurable frame rate and bandwidth, Regions of Interest (ROI) | | Overall IP Delay | Minimum 120 ms, Maximum 340 ms | | GOP Structure | IP, IBP, IBBP | | Interval | 1 to 25 [30] ips | | Region | Eight independent areas for setting encoder quality to optimize bit-rate | | | | RAM | 10 sec pre-alarm recording | | Memory Card Slot | Supports up to 32 GB microSDHC / 2 TB microSDXC card. (An SD card of Class 6 or higher is recommended for HD recording) | | Recording | Continuous recording, ring recording, alarm/ events/schedule recording | | | | Software Features | Unit discovery: IP Helper
Unit configuration: Via web browser or Configuration Manager
Firmware update: Remotely programmable
Software viewing: Web browser; Video Security Client; Video Security App; Bosch Video Management System; Bosch Video Client; or third party software | | | | Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIBII), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication | | Encryption | TLS 1.0, SSL, DES, 3DES | | Ethernet | 10/100 Base-T, auto-sensing, half/full duplex | | Connectivity | Auto-MDIX | | Interoperability | ONVIF Profile S; GB/T 28181 | | | | Input Voltage | +12 VDC or Power-over-Ethernet (48 VDC nominal) | | Power Consumption | 3.8 W maximum | | PoE | IEEE 802.3af (802.3at Type 1)
Power level: Class 2 | | | | Standards | EN 60950-1
UL 60950-1
UL 60950-22
CAN/CSA-C22.2 NO. 60950-1-03
CAN/CSA-C22.2 NO. 60950-22
EN 50130-4
EN 50130-5
FCC Part15 Subpart B, Class B
EMC directive 2004/108/EC
EN 55022 class B
EN 55024
AS/NZS CISPR 22 (equal to CISPR 22) | | | | Operating Temperature | -22 to +122°F (-30 to +50°C) | | Storage Temperature | -22 to +158°F (-30 to +70°C) | | Humidity | 20 to 90% relative humidity (non-condensing) | | | | 3-Axis Adjustment | Pan/Tilt/Rotation: 350/130/330° | | Color | RAL 9004, RAL 9010 | | Dimensions (Ø x H) | 5.71 x 5.14" (145 x 131 mm) | | Weight | Approximately 2.43 lb (1.1 kg) | | | | Package Weight | 4.25 lb | | Box Dimensions (LxWxH) | 8.8 x 7.2 x 6.7" |
