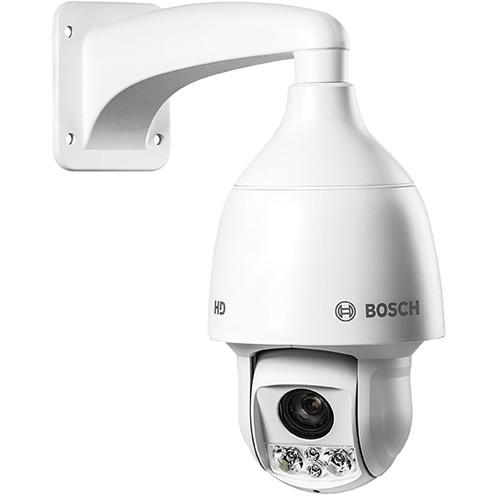

User Manual for Bosch NEZ-5230-IRCW4 AUTODOME IP 5000 2MP Outdoor Network Dome Camera with 4.3-129mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Bosch NEZ-5230-IRCW4 AUTODOME IP 5000 2MP
- Product category: Wired IP Cameras Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Wired IP Cameras
|
User manual for the Bosch NEZ-5230-IRCW4 AUTODOME IP 5000 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The white NEZ-5230-IRCW4 AUTODOME IP 5000 2MP Outdoor Network Dome Camera from Bosch is a compact, outdoor PTZ camera with 2MP HD sensor and 30x optical zoom that delivers detailed images during daylight and in dark conditions with integrated IR illuminators. Intelligent IR automatically adjusts IR intensity based on the camera's current zoom and field of view to ensure that the scene is illuminated uniformly to a maximum range of 590'. The AUTODOME IP camera, in combination with the Video Security App from Bosch, makes it easier for you to stay in control of your security even when you're on the go. With the camera's built-in Dynamic Transcoding technology, you can easily stream high-resolution H.264 video, pan/tilt/zoom the camera, and search recorded clips remotely through mobile devices such as smart phones or tablets, all on a low-bandwidth network connection. - See in the Dark
- The camera operates with smart, variable IR illumination technology from Bosch, producing viewable video in low-light scenes. The camera offers flexibility that offers configuration of IR on a per-zone basis. This ensures a single dominant illumination source in a specific scene, avoiding focus instability due to mixed lighting conditions.
- Three Pre-Programmed User Modes
- The camera comes with three pre-tuned scene modes to match various lighting conditions found in indoor scenes. Users can complete the configuration without going through multiple imaging settings.
- PTZ Drive and Mechanism
- The camera supports 256 pre-positions and two styles of Guard Tours. The preset tour has capability for up to 64 pre-positions with a configurable dwell time between pre-positions, and can be customized as to the order and frequency each preset is visited. The camera also provides support for two recorded tours, which have a total duration of 15 minutes of movements. These are recorded macros of an operator's movements, including pan, tilt, and zoom activities, and can be played back in a continuous manner. Pan and tilt preset repeatability are accurate to within ±0.2°. The camera delivers a maximum pan speed of 160° per second and a maximum tilt speed of 120° per second. The camera is capable of manual speeds (pan and tilt) of 1 to 120° per second. The camera provides a pan range of up to 360° continuous rotation and tilt angle from 0 to ±90°.
- Intelligent Dynamic Noise Reduction for Bandwidth and Storage Requirements
- The camera uses Intelligent Dynamic Noise Reduction which actively analyzes the contents of a scene and reduces noise artifacts accordingly. The low-noise image and the H.264 compression technology provide clear images while reducing bandwidth and storage by up to 50% compared to other H.264 cameras. This results in reduced-bandwidth streams that still retain high image quality and smooth motion.
- Area-Based Encoding
- Area-based encoding is another feature which reduces bandwidth. Compression parameters for up to eight user-definable regions can be set. This allows uninteresting regions to be highly compressed, leaving more bandwidth for important parts of the scene. User can configure encoding regions for every configured preset (scene), to increase or decrease the encoding quality for selectable areas of the video image. These regions give better control of the bit rate. Important parts of the scene (identified as objects in the GUI) are encoded at high resolution and therefore have an enhanced encoding quality. Less important parts are encoded at lower quality and therefore have a decreased encoding quality.
- Privacy Masking
- For installations in public places where privacy of private property is of high concern, the camera provides 24 individual privacy masks, with up to 8 displayed in the same scene. As the camera is zoomed, each mask changes size smoothly and quickly, ensuring that the covered object cannot be seen in most cases.
- Advanced Streaming
- The camera is designed on the H. 264 encoding platform capable of delivering HD video with a very low network load. The intelligent encoding capabilities drop the bandwidth consumption to extremely low levels if the camera detects no motion in the scene. The camera is capable of quad streaming which allows the camera to be configured to deliver independent, configurable streams for live viewing, recording, or remote monitoring on over bandwidth-constrained networks.
- Recording and Storage Management
- A memory card (maximum 32GB microSDHC or 2TB microSDXC) can be used for local alarm recording or for scheduled local recording to improve the overall recording reliability. Recording management can be controlled by the Bosch Video Recording Manager (VRM), or the camera can use iSCSI targets directly without any recording software.
- Sodium Vapor Lamp White Balance
- The camera can capture clear images when capturing video under a sodium vapor lamp (a street lamp or tunnel lamp, for example). Uncorrected images under these conditions have a yellowish tint, which can make identification difficult. In the Sodium Vapor White Balance mode, the camera automatically compensates for the light from a sodium vapor lamp to restore objects to their original color.
- Intelligent Defog
- Users can configure the mode to activate automatically when the global contrast enhancement method in the camera detects fog and adds light to the video image (and then deactivates when the fog clears or the scene changes).
- Alarm Handling and Motion Detection
- A wide range of configuration options is available for alarms signaling the camera. A built-in algorithm for detecting movement on presets can also be used for alarm signaling, or the camera can interface to an external alarm source using the built-in alarm I/O ports. In addition, a user can also schedule virtual alarms. Any of the available external alarm, motion alarm or scheduled virtual alarms can then be used to trigger a relay output or to force the camera to do certain tasks (for example, to start a guard tour or to go to a preset location).
- Access Security
- Password protection with three levels and 802.1x authentication is supported. The video and audio communication channels can be independently AES encrypted with 128-bit keys by installing the optional encryption site license.
- Complete Viewing Software
- There are many ways to access the camera's features: using a Web browser, with the Bosch Video Management System, with the free-of-charge Bosch Video Client, with the Video Security App, or via third-party software.
- Bosch Video Security App
- NEZ-5230-IRCW4 AUTODOME IP camera supports Dynamic Transcoding technology from Bosch, which provides 24/7 remote access to camera controls, live video streams, recordings and HD images from anywhere, regardless of available bandwidth. Dynamic Transcoding automatically adjusts the bit rate to the available bandwidth to ensure smooth video streaming. When the video is paused at an incident, a full HD still image is shown instantly.
- System Integration
- The camera conforms to the ONVIF Profile S specifications. This ensures interoperability between network video products regardless of manufacturer. Third-party integrators can easily access the internal feature set of the camera for integration into large projects.
- Dual Power Options
- NEZ-5230-IRCW4 can be powered by a IEEE 802.3at PoE+ switch or a 24 VAC power supply. For additional system reliability, users also have the option to connect the 24 VAC power supply to the camera while using PoE+.
- Easy Upgrade
- Remotely upgrade the camera whenever new firmware becomes available. This ensures up-to-date products.
UPC: 800549771962 In the Box Bosch NEZ-5230-IRCW4 AUTODOME IP 5000 2MP Outdoor Network Dome Camera with 4.3-129mm Lens & Night Vision Camera Base Template T15 Torx Screwdriver 4 x MAC Address Labels Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch NEZ-5230-IRCW4 AUTODOME IP 5000 2MP Outdoor Network Dome Camera with 4.3-129mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch NEZ-5230-IRCW4 Specs | | | Imager | 1/2.8" progressive scan CMOS | | Resolution | 1080p (1920 x 1080); 720p (1280 x 720); D1 (704 x 576 / 704 x 480) | | Total Image Sensor Pixels | 2.48 MP | | Effective Pixels (H x V) | 1984 x 1105 | | Lens Focal Length | 4.3-129mm (f/1.6 to 5.0) | | Optical Zoom | 12x | | Digital Zoom | 16x | | Field of View | 65 to 2.3° | | Focus | Automatic with manual override | | Iris | Automatic | | Minimum Illumination | @30 IRE:
Color: 0.11 lux with SensUp Off; 0.02 lux with SensUp on (1/7.5)
B&W: 0.022 lux with SensUp Off; 0.004 lux with SensUp on (1/7.5)
With IR On: 0 lux
@50 IRE:
Color: 0.20 lux with SensUp Off; 0.04 lux with SensUp on (1/7.5)
B&W: 0.04 lux with SensUp Off; 0.008 lux with SensUp on (1/7.5)
With IR On: 0 lux | | Compression | H.264 (ISO/IEC 14496-10); M JPEG | | WDR Control | 76 dB (DWDR) | | Signal-to-Noise Ratio | >50 dB (AGC Off) | | Noise Reduction | Intelligent DNR | | BLC | On/Off | | Defog | Intelligent defog | | White Balance | Standard Auto, Sodium Vapor Auto, Basic Auto, Manual, Hold, Dominant Color Auto | | Day/Night | Mechanical switchable IR filter (Auto/On/off) Monochrome | | IR Range | 590' (180 m) | | | | Compression | G.711, 8 kHz sampling rate
L16, 16 kHz sampling rate
AAC, 16 kHz sampling rate | | Interface | 1 x in; 1 x out | | | | Frame Rate | 1 to 25/30 fps | | Streaming Capability | Quad stream (2 x H.264, 1 x MJPEG, 1 x iFrame only) | | Supported Profiles | Recording:
H.264 MP SD; H.264 MP 720p fixed; H.264 MP 1080p fixed
2 x streams, I-frame only | | Ethernet | 10/100Base-T | | Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/ RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, SNTP, SNMP (V1, MIB II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, noip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, digest authentication | | Interoperability | ONVIF Profile S; GB/T 28181 | | | | Pan/Tilt Modes | Normal:
1 to 120°/s
Turbo:
Pan: 1 to 240°/s
Tilt: 1 to 120°/s | | Preset Speeds | Pan: 240°/s
Tilt: 160°/s | | Pan Range | 360° continuous | | Tilt Range | 0° to ±90° | | Preset Accuracy | ±0.2° typical | | Presets | 256 | | Tours | Recorded and preset tours | | | | Power | Network: RJ45 (10/100BASE-T)
Camera: 24 VAC | | Alarm Inputs | 2 | | | | Input Voltage | 24 VAC and POE+ | | Power Consumption | 24 VAC: 27.5 W
POE+: 25.5 W | | | | Sectors/Titling | 16 independent sectors with 20 characters per title | | Privacy Masking | 24 individually configurable privacy masks | | Video Analytics | MOTION+ | | Supported Languages | English, German, Spanish, French, Italian, Dutch, Polish, Portuguese, Russian, Japanese, Chinese (simplified) | | Rating | IP66 | | Operating Temperature | -40 to 140°F (-40 to 60°C) | | Humidity | Less than 90% RH | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Construction Material | Housing: Aluminum
Sunshield: Plastic | | Dimensions | 8.2 x 13.6" (20.7 x 34.7 cm) | | Weight | 8.8 lb (4.0 kg) | | | | Package Weight | 12.4 lb | | Box Dimensions (LxWxH) | 17.3 x 10.4 x 10.4" |
