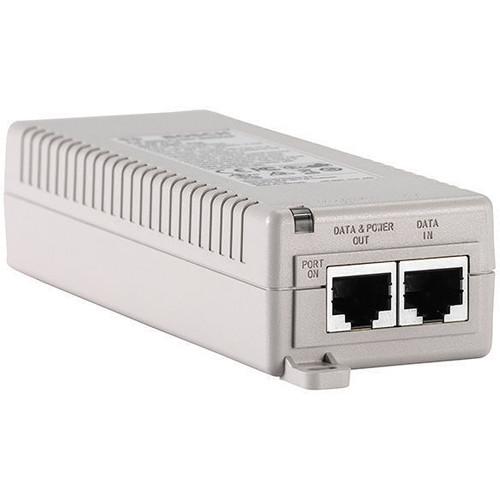

User Manual for Bosch NPD-5001-POE Midspan PoE Injector Click to enlarge the picture
Contents of the user manual for the Bosch NPD-5001-POE Midspan PoE Injector
- Product category: Power over Ethernet (PoE) Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Power over Ethernet (PoE)
|
User manual for the Bosch NPD-5001-POE Midspan PoE Injector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The 1-port Midspan PoE Injector from Bosch allows an existing Ethernet infrastructure to be enhanced for use with PoE cameras. The injector converts the AC input power to a 48 VDC power supply which is then provided to the cameras via the Ethernet cable. It supports up to 10/100/1000 Mbps pass-through data rates. The injector provides up to 15.4 W per port and it can be easily mounted on a shelf, wall, or ceiling. - Makes PoE cameras easy to install
- Allows one-wire connection
- Reduces power supply requirements
UPC: 800549777377 In the Box Bosch NPD-5001-POE Midspan PoE Injector Power Cord Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch NPD-5001-POE Midspan PoE Injector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch NPD-5001-POE Specs | | | Ports | 1 | | Input Voltage | 100 to 240 VAC; 50/60 Hz | | Maximum Input Current | 1 A @ 110 VAC
0.4 A @ 240 VAC | | Output Voltage | 48 VDC nominal | | Output Power | Per Port: 15.4 W maximum | | | | Input | IEC 60320 | | Ethernet connection | Shielded RJ45 connector; EIA 568A and 568B | | Data | 10/100/1000 Mbps pass-through data rates | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Operating Humidity | Maximum 90% RH non-condensing | | Storage Humidity | Maximum 95% RH non-condensing | | Thermal Rating | 51 BTU/hour | | Standards | FCC Part 15, class B
EN 60950
EN 55022 class B
EN 55024
IEEE 802.3af | | Approvals | UL, cUL, FCC, VCCI, GS mark | | Regulatory Compliance | CE, RoHS, WEEE | | | | Dimensions | 2.1 x 1.3 x 5.5" (5.3 x 3.3 x 14.0 cm) | | Weight | 7.1 oz (200 g) | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 8.3 x 4.7 x 2.3" |
