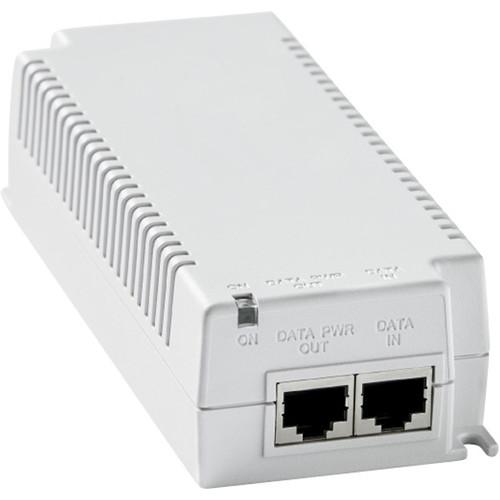

User Manual for Bosch NPD-6001B Single-Port 60W High PoE Midspan with AC Input Click to enlarge the picture
Contents of the user manual for the Bosch NPD-6001B Single-Port 60W High PoE
- Product category: Power over Ethernet (PoE) Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Power over Ethernet (PoE)
|
User manual for the Bosch NPD-6001B Single-Port 60W High PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The NPD-6001B Single-Port 60W High PoE Midspan with AC Input from Bosch supports high power PoE/PoH. It complies with IEEE 802.3af & IEEE 802.3at standards, doubling available power. This midspan is equipped with an AC input for AUTODOME 7000 and MIC7000 cameras. It offers surge protection to ensure that outdoor powered devices perform optimally in the event of voltage spikes. - AC input for AUTODOME 7000 and MIC7000 cameras
- Data provided over pairs 1/2 and 3/6 for 10/100M Ethernet
- Carries data and power over a standard Cat 5e or better cable delivered through all 4 pairs
- Detects and protects non-standard Ethernet terminals automatically
- LED indicators for AC and channel power
- Designed for indoor installation, but can be wired to a camera installed outdoors
- Wall, shelf, bench, or desktop mounting options
UPC: 800549879248 In the Box Bosch NPD-6001B Single-Port 60W High PoE Midspan with AC Input 120V Power Cord 230V Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch NPD-6001B Single-Port 60W High PoE Midspan with AC Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch NPD-6001B Specs | Compatibility | AUTODOME 7000 and MIC7000 cameras without illuminators | | Connectors | Shielded RJ45 100Base-TX Ethernet PoE++
EIA 568A and 568B | | Data Transmission | Data provided over pairs 1/2 and 3/6 for 10/100M Ethernet | | Input Voltage | 100-240 VAC, 50/60 Hz | | Output Voltage | 54-57 VDC (nominal) | | Input Current | 1.5 A | | PoE Power Output | Pin Assignment & Polarity (4 Pair Power): Pairs 1/2 (-) and 3/6 (+), Pairs 7/8 (-) and 4/5 (+)
User Port Power: Maximum 60 W | | Surge Protection | Yes | | Number of Ports | 1 | | Pass Through Data Rates | 10/100/1000M | | Cable Length | Not to exceed 33' / 100 m between network source and terminal | | Operating Temperature | At 60 W: 14 to 104°F / -10 to 40°C
At 30 W: 14 to 122°F / -10 to 50°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Operating Humidity | Maximum 90% relative, non-condensing | | Storage Humidity | Maximum 95% relative, non-condensing | | Mounting Options | Wall, shelf, bench, or desktop | | Certifications & Approvals | Electromagnetic Compatibility (EMC):
Complies with FCC Part 15, ICES-003, and CE regulations, including EN 55032 Class B (emission), EN 55024 (immunity), and VCCI
Product Safety:
Complies with UL/cUL, GS Mark per EN 60950-1
Regulatory Compliance:
IEEE 802.3af (PoE), IEEE 802.3at (PoE+, including 2-event), RoHS compliant, WEEE compliant, and CE
Lightning Protection:
Meets GR-1089-CORE lightning protection demands
EN 61000-4-5 (10/700 µsec, 4 kV)
Surge Protection: IEC 61643-21
ITU-T K.45 international standard | | Dimensions (W x H x L) | 2.44 x 1.5 x 5.94" / 62 x 38 x 151 mm | | Weight | 0.75 lb / 340 g | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 8.0 x 8.0 x 4.9" |
