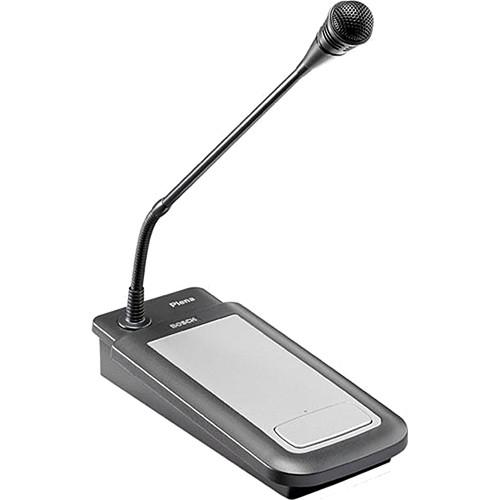

User Manual for Bosch PLE-1CS All Call Station Plena Tabletop Paging Microphone Click to enlarge the picture
Contents of the user manual for the Bosch PLE-1CS All Call Station Plena
- Product category: Paging & Security Microphones Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Paging & Security Microphones
|
User manual for the Bosch PLE-1CS All Call Station Plena contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The PLE-1CS All Call Station Plena Tabletop Paging Microphone from Bosch is a high-quality unidirectional condenser microphone, ideal for making calls and announcements via a public address system. The mic has a heavy metal base with rubber feet for stability on any flat surface. The unique body design also allows the mic to be flush-mounted in a desktop.
The mic has a push-to-talk button for activation, which can be set for momentary or toggle operation to meet your needs. A green LED indicates when the mic is active. The microphone can operate via 12-48V phantom power supplied by an amplifier. The mic has a fixed cable with a lockable 5-pin Euro-style connector for connection to your PA or intercom system. - The high-quality unidirectional condenser microphone provides excellent clarity, ideal for making calls and announcements via a public address system
- The mic has a heavy metal base with rubber feet for stability on any flat surface. The unique body design also allows the mic to be flush-mounted in a desktop
- The mic has a push-to-talk button for activation, which can be set for momentary or toggle operation to meet your needs. A green LED indicates when the mic is active
- The microphone can operate via 12-48V phantom power supplied by an amplifier
- The fixed cable has a lockable 5-pin Euro-style connector for connection to your PA or intercom system
UPC: 800549150415 In the Box Bosch PLE-1CS All Call Station Plena Tabletop Paging Microphone 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch PLE-1CS All Call Station Plena Tabletop Paging Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch PLE-1CS Specs | Type | Unidirectional Condenser | | Sensitivity | 0.7mV @ 85dB SPL (2mV/Pa) | | Max Input Sound Level (SPL) | 110dB SPL | | Distortion | < 0.6% (Max Input) | | EIN | 28dB SPLA (S/N 66dBA Ref. 1Pa) | | Frequency Response | 100Hz - 16kHz | | Output Impedance | 200 Ohms | | Connector | 5-Pin Euro-Style Connector | | Cable Length | 6.6' (2 m) | | Phantom Power | 12-48V | | Current Consumption | < 8mA | | Construction | Metal Base, Rubber Feet, Charcoal/Silver Finish | | Environmental | Operating Temp: 14 to 131°F (-10 to 55°C)
Storage Temp: -40 to 158°F (-40 to 70°C)
Relative Humidity: < 95% | | Dimensions | Base: 1.57 x 3.97 x 9.25" (40 x 100 x 235mm) (HxWxD)
Stem Length: 15.35" (390mm) (With Mic) | | Weight | 2.2 lbs (1kg) | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 15.7 x 6.5 x 6.4" |
