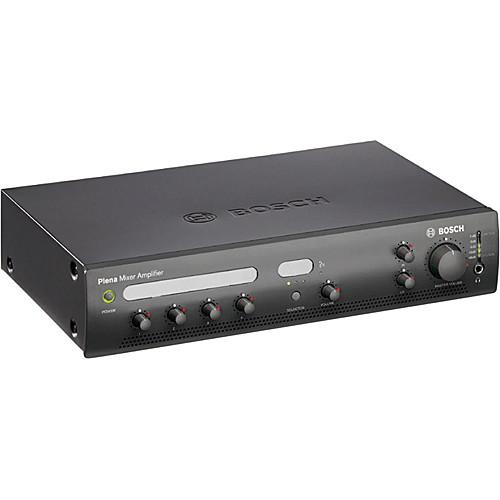

User Manual for Bosch PLE-1MA120 Plena Mixer Amplifier Click to enlarge the picture
Contents of the user manual for the Bosch PLE-1MA120 Plena Mixer Amplifier
- Product category: Mixer/Amplifiers Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Mixer/Amplifiers
|
User manual for the Bosch PLE-1MA120 Plena Mixer Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The Bosch PLE-1MA120 Plena Mixer Amplifier is intended for background audio PA and commercial audio installations. The amplifier delivers 120 watts of power and 4 microphone / line input channels. The interface is straightforward, making it easy for anyone to operate. The PLE-1MA120 Plena Mixer features adjustable talk over functions for paging applications and separate volume control for the dedicated music channels. The Bosch PLE-1MA120 Plena Mixer Amplifier is a cost effect, ideal solution for use in retail stores, commercial offices, halls and more. - 4 microphone/line inputs, plus 3 music source inputs
- 100 V and telephone input with priority & VOX
- Announcement only output, 3-wire volume override
- Voice-activated emergency override
- Outputs for line out and music only out
- Unique easy-to-use intuitive tone controls
UPC: 800549150088 In the Box Bosch PLE-1MA120 Plena Mixer Amplifier Power Cord Manual 19" Mounting Brackets Plena Easy Line CD 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch PLE-1MA120 Plena Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch PLE-1MA120 Specs | Controls | Front
On/off switch Power on LED
LED VU meter for master output (LEDs for -18, -12 -6, -3, 0 dB)
Master volume knob
Four volume knobs for microphone inputsKnob for treble level
Knob for bass levelHeadphone socket
Background music buttonBack
Dip SwitchesDucking Level
Tel/100V Volume Control | | Power Supply | Voltage: 230VAC +/- 10%, 50/60Hz (reduced power at lower mains or battery voltage)
Inrush: 10A | | Power Consumption | 400VA | | Frequency Response | 50Hz to 20kHz (+ 1/-3dB @ -10dB ref. rated output) | | Distortion | > 1% @ rated output power, 1kHz | | Tone Control | Bass: Max -12/+12dB (frequency is setting dependent)
Treble: Max -12/+12dB (frequency is setting dependent) | | | | Package Weight | 24.55 lb | | Box Dimensions (LxWxH) | 22.5 x 14.1 x 8.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
