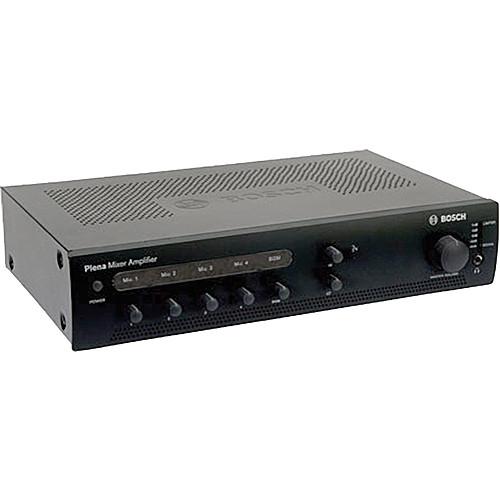

User Manual for Bosch PLE-1ME240-US Plena Mixer Amplifier Click to enlarge the picture
Contents of the user manual for the Bosch PLE-1ME240-US Plena Mixer Amplifier
- Product category: Mixer/Amplifiers Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Mixer/Amplifiers
|
User manual for the Bosch PLE-1ME240-US Plena Mixer Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The Bosch PLE-1ME240-US Plena Mixer Amplifier is a compact, yet powerful 240 watt amplifier and 4-channel mixer for providing background music and public address audio in commercial applications, office spaces or at home. The unit is easy to use with 4 line / microphone inputs, each with their own level controls on the front panel. Dedicated speaker terminals provide the output signal to speakers. There are treble and bass controls for signal contouring and switchable phantom power to condenser microphones. - 4 microphone / line inputs, plus music source input
- Announcement only output, 3‑wire volume override
- Wide range of output power (240 Watts)
UPC: 800549617970 In the Box Bosch PLE-1ME240-US Plena Mixer Amplifier Power Cord Manual Plena Easy Line CD 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch PLE-1ME240-US Plena Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch PLE-1ME240 Specs | Power Supply | 120 VAC ±10%, 50/60 Hz (reduced power at lower mains voltage)
Inrush: 24APower Consumption: 800 VA | | Frequency Response | Line: 60 Hz to 20 kHz (+1/‐3 dB @ ‐10 dB ref. rated output)
Mic: 70 Hz to 20 kHz (+1/‐3 dB @ ‐10 dB ref. rated output) | | Distortion | <1% @ rated output power, 1 kHz | | Tone Controls | Bass: Max. ± 8 dB
Treble: Max. ± 8 dB | | Audio Inputs | Mic and Line Inputs
Input 1: (push-to-talk contact with 5‐pin Euro style, balanced, phantom priority)Input 2: 3‐pin Euro style, balanced, phantom
Input 3 and 4: TRS Jack (1/4, 6.3mm) balancedSensitivity: 1 mV (mic.); 300 mV (line)
Impedance: >1 kohm (mic.); >5 kohm (line)Dynamic range: 93dB
S/N (flat at max volume): >63 dB (mic.); >70 dB (line)S/N (flat at min volume/muted): >75dB
CMRR (mic.): >40dB (50Hz to 20kHz)Headphone: >25dB
Speech Filter: -3dB @ 315Hz, high-pass, 6dB/oct Phantom Power Supply: 16V via 1.2 ohms (mic.)
Music InputConnector: Cinch, stereo converted to mono
Sensitivity: 200mVImpedance: 22k Ohms
S/N (flat at max volume): >75dBS/N (flat at min volume/muted): >80dB
Headroom: >25sB | | Speaker Output | Screw terminal, floating, 120W
Loudspeaker output @ 4 ohm: 22V | | Temperature | -10° to +45° C
Humidity: < 95% | | Dimensions (HxWxD) | 3.93 x 16.93 x 10.63" (100 x 430 x 270mm) | | Weight | 19.63 lb (8.9kg) | | | | Package Weight | 28.2 lb | | Box Dimensions (LxWxH) | 22.5 x 14.0 x 8.5" |
