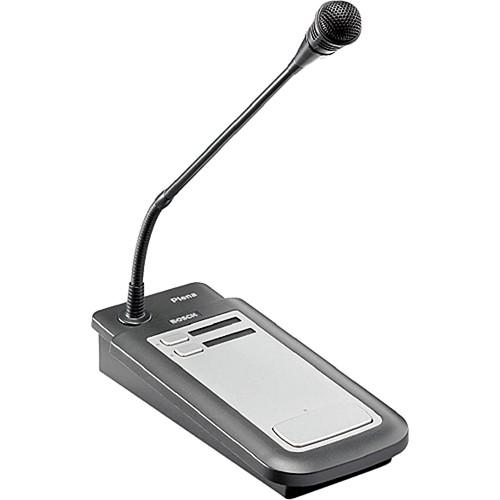

User Manual for Bosch PLE-2CS 2-Zone Call Station Plena Tabletop Paging Microphone Click to enlarge the picture
Contents of the user manual for the Bosch PLE-2CS 2-Zone Call Station Plena
- Product category: Paging & Security Microphones Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Paging & Security Microphones
|
User manual for the Bosch PLE-2CS 2-Zone Call Station Plena contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The PLE-2CS 2-Zone Call Station Plena Tabletop Paging Microphone from Bosch is a high-quality unidirectional condenser microphone that lets you make calls to selected zones in a public address system that has been built with PLE-series 2-zone mixers and mixer amplifiers. The mic has a heavy metal base with rubber feet for stability on any flat surface. The unique body design also allows the mic to be flush-mounted in a desktop. The flexible mic stem allows precise positioning.
The mic has a push-to-talk button for activation, plus a pair of zone selection keys so you can choose which zone to address. Indicator LEDs show zone selection, busy status, and power on. The mix has selectable gain, output level control, a speech filter, and a limiter for optimum audio quality. The microphone operates via 24VDC power supplied by your mixer or mixer amplifier. The mic has a pair of RJ45 jacks for connecting to the system, and to provide a loop-through option that supports up to 8 call stations. - The high-quality unidirectional condenser microphone provides excellent clarity, ideal for making calls and announcements
- Allows you to make calls to selected zones in a public address system that has been built with PLE-series 2-zone mixers and mixer amplifiers
- The mic has a heavy metal base with rubber feet for stability on any flat surface. The unique body design also allows the mic to be flush-mounted in a desktop
- The flexible mic stem allows precise positioning
- The mic has a push-to-talk button for activation, plus a pair of zone selection keys so you can choose which zone to address
- Indicator LEDs show zone selection, busy status, and power on
- The mix has selectable gain, output level control, a speech filter, and a limiter for optimum audio quality
- The microphone operates via 24VDC power supplied by your mixer or mixer amplifier
- The balanced line-level RJ45 output provides a 660' (200 m) range when used with a CAT-5 extension cable. An additional RJ45 connector provides a loo-through option that makes it possible to daisy-chain up to 8 call stations
UPC: 800549150422 In the Box Bosch PLE-2CS 2-Zone Call Station Plena Tabletop Paging Microphone Cable with Locking CAT-5 Connector 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch PLE-2CS 2-Zone Call Station Plena Tabletop Paging Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch PLE-1CS Specs | Type | Unidirectional Condenser | | Sensitivity | 85dB SPL (Gain Preset 0dB) | | Nominal Output Level | 700mV | | Max Input Sound Level (SPL) | 110dB SPL | | Gain | -15/0/+6dB | | Limiter | 2V Threshold, 1:20 Compression Ratio | | Distortion | < 0.6% (Max Input) | | EIN | 25dB SPLA | | Frequency Response | 100Hz - 16kHz | | Filter | -3dB @ 315Hz, High-Pass, 6dB/Oct Speech Filter | | Output Impedance | 200 Ohms | | Signals | 6 x Chimes
2 x LEDs | | Connectors | 2 x RJ45 Connectors | | Cable Length | 16.4' (5 m) | | Power | 24VDC | | Current Consumption | < 30mA | | Construction | Metal Base, Rubber Feet, Charcoal/Silver Finish | | Environmental | Operating Temp: 14 to 131°F (-10 to 55°C)
Storage Temp: -40 to 158°F (-40 to 70°C)
Relative Humidity: < 95% | | Dimensions | Base: 1.57 x 3.97 x 9.25" (40 x 100 x 235mm) (HxWxD)
Stem Length: 15.35" (390mm) (With Mic) | | Weight | 2.2 lbs (1kg) | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 15.8 x 6.4 x 6.4" |
