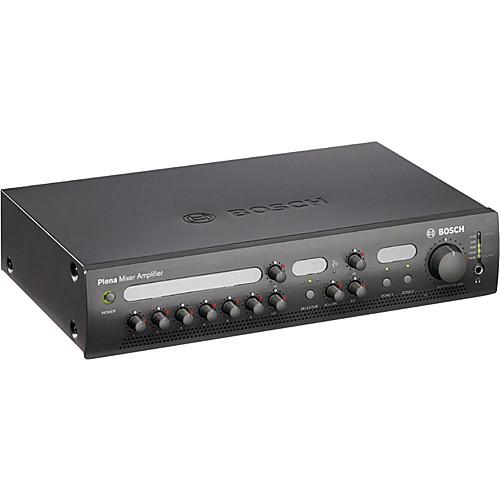

User Manual for Bosch PLE-2MA120 Plena Mixer Amplifier Click to enlarge the picture
Contents of the user manual for the Bosch PLE-2MA120 Plena Mixer Amplifier
- Product category: Mixer/Amplifiers Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Mixer/Amplifiers
|
User manual for the Bosch PLE-2MA120 Plena Mixer Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The Bosch PLE-2MA120 Plena Mixer Amplifier is intended to provide 2-zone operations and high output power for background audio PA and commercial audio installations. The amplifier delivers 120 watts of power and 6 microphone / line input channels. The interface is straightforward, making it easy for anyone to operate. The PLE-1MA120 Plena Mixer features adjustable talk over functions for paging applications, and separate volume control for the dedicated music channels. The Bosch PLE-2MA120 Plena Mixer Amplifier is a cost effect, ideal solution for use in retail stores, commercial offices, halls and more. - 6 microphone/line inputs plus 3 music source inputs
- 100 V, telephone and a call station input with priority & VOX
- 2 zones and announcement only output
- Voice-activated emergency override
- 2-tone chime built in (7 more chimes optional with call station)
- Outputs for line out, music only out and insert point
- 24 V backup input with built in 24 V charger
- Separate tone controls for microphones and music sources
UPC: 800549150101 In the Box Bosch PLE-2MA120 Plena Mixer Amplifier Power Cord Manual 19" Mounting Brackets Plena Easy Line CD 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch PLE-2MA120 Plena Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch PLE-2MA120 Specs | Power Supply | Voltage: 115 - 230 VAC ±10%, 50/60 Hz Speech filter -3 dB @ 315 Hz, high-pass,
Inrush: 8/16A (230/115VAC)Battery Power Supply
Voltage 24 VDC, +10% / -15% 6 A
Charge current 0.5 ADC Charge float voltage 27.3 VDCtime 2 s | | Power Consumption | 400VA | | Frequency Response | 50Hz to 20kHz (+ 1/-3dB @ -10dB ref. rated output) | | Distortion | > 1% @ rated output power, 1kHz | | Tone Control | Bass: Max -12/+12dB (frequency is setting dependent)
Treble: Max -12/+12dB (frequency is setting dependent) | | Inputs | Mic/line input 6x
Input 1 (Push-to-talk contact with ducking functionality) 5-pin Euro style, balanced, phantom 3-pin XLR, balanced, phantom
Input 2-6 (VOX with ducking functionality on input 2) 3-pin XLR, balanced, phantomMusic inputs 3x
Cinch, stereo converted to monoEmergency / Telephone 1x
Connector 7-pin, Euro style pluggable screw terminal | | Sensitivity | Mic/Line: 1 mV (mic); 1 V (line)
Music Inputs: 300mVEmergency / Tel: 1V max (tel), 100V max (100V0 | | Signal to Noise Ratio | Mic/Line Input: 63dB (flat at max volume), >5dB (flat at min volume/muted)
Music Inputs: > 70dB (flat at max volume), > 75dB (flat at min volume/muted) | | Dynamic Range | 93dB | | Phantom Power | 16V via 1.2k ohm (mic) | | | | Package Weight | 25.5 lb | | Box Dimensions (LxWxH) | 22.1 x 16.1 x 8.6" |
