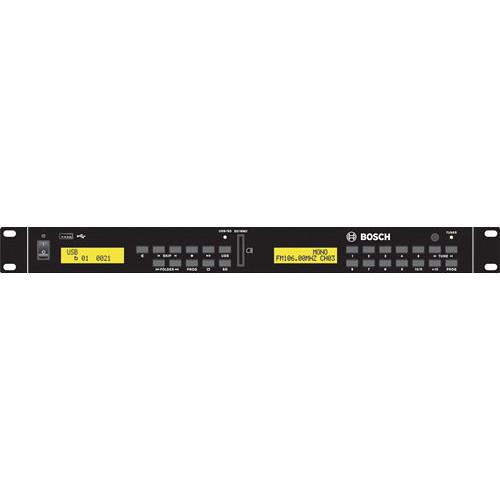

Product description The Bosch PLE-SDT Plena Easy Line SD Tuner Background Music Source is a dual output FM Tuner and SD/USB audio player designed for playing background music over public address systems. Typical public address applications for the device include bars, gyms, showrooms, restaurants, supermarkets, hotels, shops, and many others.
The player accepts SD cards up to 32GB in capacity and can hold up to 2000 tracks. The tracks may be stored in multiple folders, and the device can be set to play randomly or on repeat. The files can be mono, stereo, or joint stereo MP3s with a constant bit-rate (CBR) or variable bit-rate (VBR) of 32 to 320 kbps.
The FM radio tuner utilizes a frequency synthesizer to capture radio stations and includes presets for saving your favorite stations. An antenna may be connected to the device to improve its reception. Both the FM radio tuner and the SD/USB MP3 player may operate simultaneously on separate outputs. A combined output will immediately switch over to the FM tuner when the last MP3 has finished playing. The tuner, USB/SD, and combined outputs all utilize RCA connections. The volume for the outputs is controlled from the rear panel, or by the included infrared remote control. - MP3 Playback
- The player accepts SD and MMC cards up to 32GB in capacity and can play MP3s from USB sticks and attached USB hard drives. It can store up to 2000 tracks in multiple folders and can be set to play randomly or on repeat. The files can be mono, stereo, or joint stereo MP3s with a constant bit-rate (CBR) or variable bit-rate (VBR) of 32 to 320 kbps
- FM Radio Tuner
- The FM radio tuner utilizes a frequency synthesizer to capture radio stations and includes presets for saving your favorite stations. An antenna may be connected to the device to improve its reception
- Output
- Both the FM radio tuner and the SD/USB MP3 player may operate simultaneously on separate outputs. A combined output will immediately switch over to the FM tuner when the last MP3 has finished playing. The tuner, USB/SD, and combined outputs all utilize RCA connections
- Volume Control
- The volume for the outputs is controlled from the rear panel, or by the included infrared remote control
UPC: 800549643665 In the Box Bosch PLE-SDT Plena Easy Line SD Tuner Background Music Source AC Power Cord Safety Instructions 2 x 19" Rack Mounting Brackets Infrared Remote Control 2 x Pairs of 2.5 m RCA audio cables SD Card with Free Music and Operating Instructions Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch PLE-SDT Plena Easy Line SD Tuner Background Music Source in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch PLE-SDT Specs | Connections | Tuner Output: 1 x RCA
USB/SD Output: 1 x RCA
Combined Output: 1 x RCA
USB Input: 2 x USB 2.0 standard A 4-pin socket
SD/MMC: 1 x SD card socket
Antenna: 1 x 75 Ω FM tuner antenna input socket | | Controls | 1 x Power switch
1 x USB/SD Mute button
2 x Skip buttons
2 x Folder buttons
1 x Stop button
1 x Program button
1 x Replay/pause button
1 x Repeat
1 x USB Source Button
1 x SD Source Button
10 x Radio frequency preset select buttons for presets 1-10
1 x Radio frequency preset group button for presets 11-30
1 x IR receiver lens for remote control
1 x -50 kHz radio scanning button
1 x +50 kHz radio scanning button
1 x Radio frequency program button for saving presets
1 x 115/240 V switch | | Displays | 1 x USB/SD LCD with Backlight
1 x FM Tuner LCD with Backlight
1 x On/Off USB/SD source LED indicator
1 x On/Off FM Tuner LED indicator | | | | Distortion | < 1% | | Total Harmonic Distortion (THD) | < 0.8% at 1 kHz | | Range | 87.5 to 108 MHz | | Frequency Response | 50 to 12000 Hz | | Channel Separation | ≥ 40 dB at 1 kHz | | IF Rejection | ≥ 70 dB | | Signal to Noise Ratio | ≥ 50 dB | | IF Frequency | 10.7 MHz | | Input Sensitivity | 6 μV e.m.f. (2 uV) | | Auto Scan Sensitivity | ≤ 50 μV | | Antenna Input Impedance | 75 Ω (coaxial) | | Output Level | - 10 dBV | | | | Compatibility | SDHC and MMC memory cards
USB flash sticks
Bus powered 2.5" Hard Disk Drives (HDD) over USB | | Storage Capacity | 32 GB | | File Format | FAT32 | | Number of Tracks | 2000 | | Frequency Response | 50 to 20,000 Hz | | Signal to Noise Ratio | ≥ 70 dB | | Total Harmonic Distortion | < 0.1% at 1 kHz | | Stereo Separation | ≥ 60 dB | | Analog Output Levels | - 10 dBV | | Audio Output Level | 1.5 Vrms ±1 dB | | | | ENVIRONMENTAL | Operating temperature: 0 to 45 °C
Storage temperature: -40 to 70 °C
Relative humidity: <90% (non condensing) | | Safety | According to IEC/EN 60065
CCC
C-Tick | | CE | EN 55013+A1+A2
EN 61000-3-2
EN 61000-3-3+A1
2006/95/CE EMC
2004/108/CE EMC
IEC EN55020+A2+EC
CE marking | | Power Consumption (max) | 50 VA | | Power Consumption (Operating) | 10 W typical | | Voltage | 115-230 VAC ±10% at 50/60 Hz | | Fuses | 230 VAC 0.63 AT / 250 V
120 VAC 1.25 AT / 250 V | | Mounting | Stand-alone
19" rack (19" wide, 1U high) | | Dimensions (H x W x D) | 1.73 x 17.48 x 9.84" (44 x 444 x 250 mm) | | Weight | Approximately 7.9 lb (3.6 kg) | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 21.5 x 14.5 x 4.5" |
