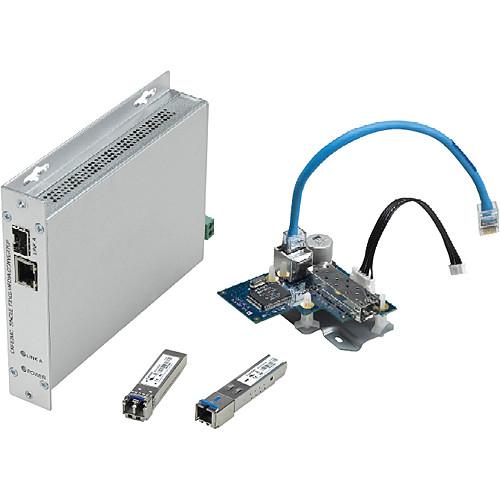

Product description The Bosch Rack-mounted Ethernet Fiber-optic Media Converter transmits and receives 10/100 Mbps Ethernet data over fiber optic cables using small form-factor pluggable (SFP) modules. It is a head-end device, and comes in an enclosure that allows surface mounting or rack mounting using the optional C1-IN rack mount card cage. The unit offers automatic MDI/MDI-X crossover, and does not need any in-field adjustments. - Transmits and receives 10/100 Mbps Ethernet data over fiber optic cables using small form-factor pluggable (SFP) modules
- Supplied in an enclosure that allows surface mounting or rack mounting using the optional C1-IN rack mount card cage
- Offers automatic MDI/MDI-X crossover
- Does not need any in-field adjustments
- Power supply - 120/230 VAC
UPC: 800549291910 In the Box Bosch Rack-mounted Ethernet Fiber-optic Media Converter 3 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch Rack-mounted Ethernet Fiber-optic Media Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch CNFE2MC/IN Specs | Interface | Ethernet | | Data Rate | 10/100 Mbps
IEEE 802.3 Compliant
Full Duplex or Half Duplex Electrical Port
Full Duplex Optical Port | | Rack Mount | Surface mount or rack mount using C1-IN rack (sold separately) | | Connectors | Power: Terminal block
Electrical: RJ-45 (10/100 BASE-T/TX)
Socket: SFP (10/100 BASE-FX) | | Indicators | Link/Act
Green: Indicates a good fiber connection
Flashing Green: Indicates data is present on at least one side of the IP connection
No LED lit: Indicates a loss of fiber connection
Power
Green: Power is supplied
None: No power is supplied
RJ-45 Connector
Right side, Flashing Green: Data is present
Right side, Off: No data is present
Left side, Amber: Link is valid at 100 MB
Left side, Off: If the right side is Flashing Green, link is valid at 10 MB | | Power | Supplied Power Pack
Input: 90-264 VAC, 50/60 Hz
Output: 9 VDC @ 1 A
Module
8-15 VDC @ 220 mA
Current Protection
Automatic resettable
Solid-state current limiters
Circuit Board
Meets IPC Standard | | Environmental | MTBF: > 100,000 hours
Operating Temperature: -40 to 167°F (-40 to 75°C)
Storage Temperature: -40 ~ 185°F (-40 ~ 85°C)
Relative Humidity: 0 to 95% (non-condensing)
Regulatory Compliance: X, cUL, UL, RoHS | | Dimensions (LxWxH) | 6.3 x 5.1 x 1.1" (16 x 13 x 2.8cm) | | Weight | Approx. 2 lbs (0.9kg) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 10.63 x 6.457 x 3.228" |
