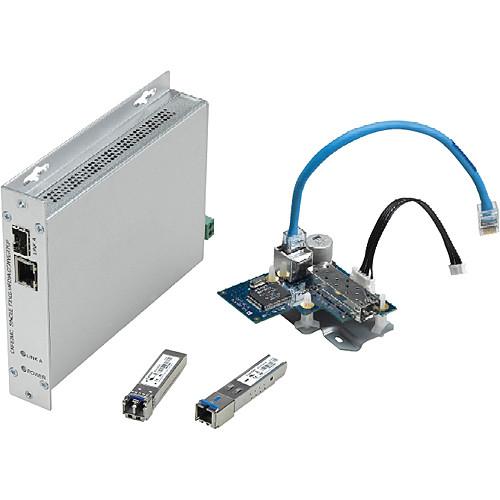

User Manual for Bosch SFP-26 Small Form-factor Pluggable Optical Interface Click to enlarge the picture
Contents of the user manual for the Bosch SFP-26 Small Form-factor Pluggable Optical
- Product category: Signal Extenders Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Signal Extenders
|
User manual for the Bosch SFP-26 Small Form-factor Pluggable Optical contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The Bosch SFP-26 Small Form-factor Pluggable Optical Interface is an interchangeable module that provides an integrated fiber optic solution. It is designed to transmit 10/100 Mbps ethernet signals over fiber optic cable. When used with VG4-SFPSCKT or CNFE2MC/IN media converters, the interface enables fast ethernet optical interface.The SFP-26 Pluggable Optical Interface offers a wavelength of 1550/1310 nm (transmit/receive) and is effective up to 1.2 miles (2 km). It can be used with MMF optical fiber and includes Single SC optical interface. - Interchangeable module that provides an integrated fiber optic solution
- Designed to transmit 10/100 Mbps ethernet signals over fiber optic cable
- Enables fast ethernet optical interface when used with VG4-SFPSCKT or CNFE2MC/IN media converters
- Single SC optical interface
- Wavelength - 1550/1310 nm(transmit/receive)
- Maximum distance - 1.2 miles (2 km)
UPC: 800549291880 Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch SFP-26 Small Form-factor Pluggable Optical Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch SFP-26 Specs | Interface | Data Interface: Ethernet | | Data Rate | 10/100 Mbps
IEEE 802.3 Compliant | | Type | MMF | | Connector | Single SC | | Wavelength | 1550/1310 nm | | Distance | 1.2 miles (2 km) | | Compatibility | 60/125 μm MMF. For 50/125 μm fiber, subtract 4 dB from the specified optical budget value. Must meet or exceed fiber standard ITU-T G.651.
Specified transmission distances are limited to the optical loss of the fiber and any additional loss introduced by connectors, splices, and patch panels. The modules are designed to operate over the entire optical loss budget range, so they do not require a minimum loss in order to operate. | | Dimensions (LxWxH) | 2.5 x 0.5 x 0.3" (64 x 14 x 9 mm) | | Weight | 0.05 lb (0.23 kg) | | | | Package Weight | 0.05 lb | | Box Dimensions (LxWxH) | 4.0 x 2.7 x 0.9" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 84 owners. Add your rating and experience with the product.
