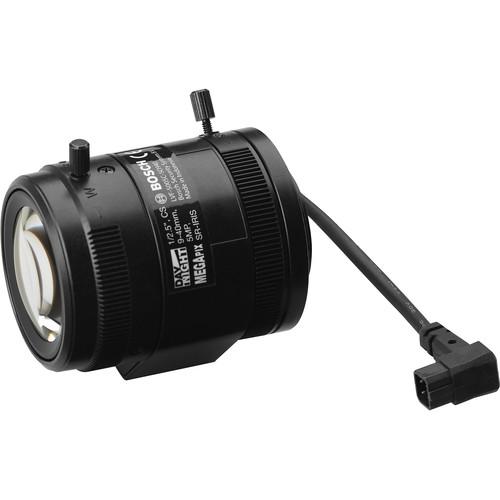

Product description The SR Megapixel CS-Mount 4.1-9mm Varifocal Lens from Bosch is designed for use with 5MP cameras that have a 1/1.8" sensor. This lens is IR corrected and has a 4.1-9mm focal length with a 101 to 46° horizontal field of view. It features DC iris control, along with manual operation of zoom and focus. - 1' minimum object distance
- Up to 93% non-condensing operating humidity
In the Box Bosch SR Megapixel CS-Mount 4.1-9mm Varifocal Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch SR Megapixel CS-Mount 4.1-9mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch LVF-5005C-S4109 Specs | Lens Mount | CS | | Sensor Compatibility | 1/1.8" | | Focal Length | 4.1 to 9mm | | Back Focal Length | 12.72 to 19.94mm | | Aperture | f/1.6 to 8 | | Angle of View | 1/1.8" Sensor
Horizontal: 101 to 46°
Vertical: 56 to 26°
1/2.7" Sensor
Horizontal: 80 to 37°
Vertical: 44 to 21°
1/3" Sensor
Horizontal: 73 to 33°
Vertical: 41 to 19° 4:3 Angle of View:
Horizontal: 100 to 45°
Vertical: 74 to 33° | | Minimum Object Distance | 1' / 0.3 m | | Focus Type | Manual Focus | | Iris Type | DC Auto | | IR Corrected | Yes | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Certifications | CE, as per Manufacturer | | Dimensions (D x L) | 2.5 x 2.6" / 62.9 x 66.6 mm | | Weight | 0.3 lb / 130 g | | | | Package Weight | 0.36 lb | | Box Dimensions (LxWxH) | 4.45 x 3.4 x 3.3" |
