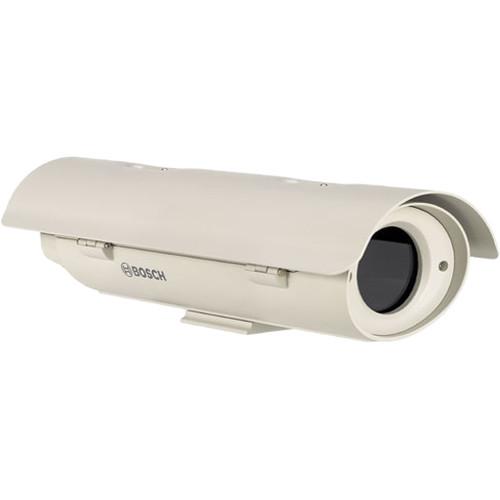

User Manual for Bosch UHO-HBGS-51 Outdoor Housing Click to enlarge the picture
Contents of the user manual for the Bosch UHO-HBGS-51 Outdoor Housing
- Product category: Housings Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Housings
|
User manual for the Bosch UHO-HBGS-51 Outdoor Housing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The UHO-HBGS-51 Outdoor Housing from Bosch enables you to use Dinion CCTV cameras in an outdoor environment or in areas where the cameras need to be protected. For increased weather resistance, this aluminum housing comes with a built-in heater and blower and features liquid-tight cable entry. It also features side opening design for easy installation and camera setup, and the use of tamper-resistant screws for locking clasps to prevent unauthorized access. - Easy installation
- The hinged, side-opening design allows easy installation of camera/lens combinations and gives access to controls even when the housing is mounted. Power and video cabling can be routed via feed-through fittings or external 4-pin power and BNC connectors at the rear of the housing. Feed-through entry holes in the base allow for even better cable management. Mounting holes in the base can be used to install the housing on a wide range of pan/tilt brackets, adjustable heads, and various other camera mounting brackets. The unit comes with tamper-resistant screws for the locking clasps to prevent unauthorized access.
- Built-in Heater Blower
- The aluminum housing has two heaters, one for window defrosting and one for the housing interior, and a blower. The interior heater maintains the internal temperature of the housing in cold temperature conditions to extend the lower temperature limit to -40°F (-40°C). The permanently powered window defroster heater and blower minimize fogging in high humidity locations.
- Rugged
- With a sleek design that meets IP66 and NEMA-4X standards, this housing is suitable for protecting your video surveillance equipment from adverse weather conditions.
UPC: 800549769471 In the Box Bosch UHO-HBGS-51 Outdoor Housing (230 VAC) Sunshield Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch UHO-HBGS-51 Outdoor Housing in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch UHO-HBGS-51 Specs | | | Voltage | Supply: 230 VAC | | Power Consumption | With blower: 45 W
Without blower: 40 W | | Camera | Maximum Power Consumption: 10 W | | | | Rear | Fittings: 1 x Cable Diameter: 0.14 to 0.32" (5.5 to 8 mm)
2 x Cable Diameter: 0.23 to 0.39" (5.8 to 10 mm) | | Bottom | 2 x Cable Diameter: 0.18 to 0.31" (4.5 to 7.9 mm) | | | | Operating Temperature | Internal: 4 to 131°F (-20 to 55°C)
External: 40 to 122°F (40 to 50°C) | | Enclosure Rating | IP66, NEMA-4X | | | | Safety | acc. to EN 60065-1 (CE) | | Immunity | acc. to EN 50130-4 (CE) | | Emission | acc. to EN 55022 class B (CE) acc. to EN 61000-3-2 (CE); EN 61000-3-3 (CE) acc. to FCC CFR 47 Part 15, Class B | | | | Construction | Aluminum casing, silicone gaskets, stainless steel hardware | | Window | 0.12" (3 mm) glass | | Mounting Holes | 2 x 1/4-20 Tapped Holes Inner Pair: 2.0" (51 mm)
Center-To-Center Outer Pair: 2.9" (73 mm) | | Dimensions (H x W x L) | Camera + Lens: 3.6 x 3.2 x 10.3" (91.0 x 81.0 x 262.0 mm)
Housing: 4.9 x 6.7 x 18.8" (126.5 x 171.3 x 480 mm) including sunshield | | Weight | 6.8 lb (3.1 kg) without blowers
7.1 lb (3.2 kg) with blowers |
