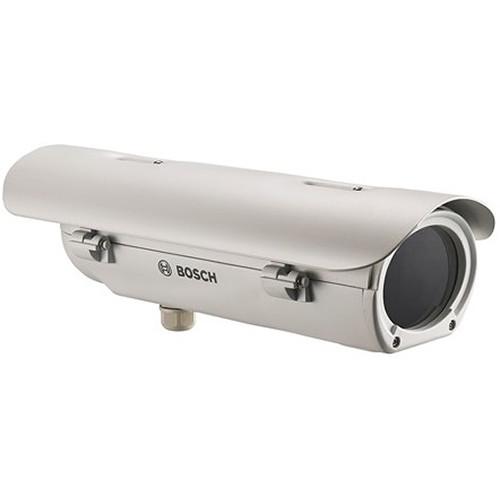

User Manual for Bosch UHO-POE-10 Outdoor Camera Housing and PoE Power Supply for DINION Cameras Click to enlarge the picture
Contents of the user manual for the Bosch UHO-POE-10 Outdoor Camera Housing and
- Product category: Housings Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Housings
|
User manual for the Bosch UHO-POE-10 Outdoor Camera Housing and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The gray UHO-POE-10 is an outdoor camera housing and PoE+ power supply for DINION cameras from Bosch. It offers protection for camera and lens combinations up to 10.6" in length. A hinged side opening enables simple installation and camera setup. A built-in heater and fan ensure that the internal temperature of the housing remains within specified operating temperatures. The heater and fan also keep the housing window clear in humid and icy conditions.
This housing is NEMA 4X and IP67 rated for outdoor use. It is fitted with a sunshield. - Protects camera and lens combinations up to 10.6" in length
- Hinged side opening for simple installation and camera setup
- An M25 x 1.5 cable gland provides a seal-tight connection for PoE power, as well as for optional 12 VDC, alarm, or audio cables
- Included tamper-resistant screws for locking clasps prevent unauthorized access
- NEMA 4X- and IP67-rated enclosure that is suitable for outdoor use
UPC: 800549761857 In the Box Bosch UHO-POE-10 Outdoor Camera Housing and PoE+ Power Supply for DINION Cameras Sunshield Tamper-Resistant Screws Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch UHO-POE-10 Outdoor Camera Housing and PoE Power Supply for DINION Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch UHO-POE-10 Specs | Compatible Cameras | Bosch DINION Cameras | | Power Supply | PoE+ IEEE 802.3at
48 VDC Nominal or 12 VDC (Switchable) | | Power Consumption | Housing Only: 14 W Maximum
Housing & Camera: 25.5 W Maximum | | Heater | Built-In | | Fan | Built-In | | Window | 0.12" / 3 mm (Glass) | | Locking Mechanism | Tamper-Resistant Screws (Included) | | Construction | Aluminum Casing, Silicone Gaskets, All Stainless Steel Gaskets | | Camera Mounting | Removable Camera/Lens Tray, Mounted with Two Screws | | Mounting Holes | 2 x Pairs of 1/4-20 Tapped Holes
Inner Pair: 2" / 51 mm Center-to-Center
Outer Pair: 2.9" / 74 mm Center-to-Center | | Operating Temperature | External: -22 to 122°F / -30 to 50°C
Internal: -4 to 122°F /-20 to 50°C | | IP Rating | IP67 | | NEMA Rating | NEMA 4X
NEMA TS 2-2003 (R2008): -30 to 165°F / -34 to 74°C | | Certifications & Approvals | Safety: EN 60065-1 (CE)
Immunity: EN 50130-4 (CE)
Emission: EN 55022 Class B (CE), EN 61000-3-2 (CE), EN 61000-3-3 (CE), FCC CFR 47 Part 15, Class B | | Dimensions (H x W x L) | 5.6 x 6.5 x 16.9" / 141 x 164 x 430 mm (Including Sunshield)
Maximum Camera + Lens: 2.8 x 3.2 x 10.6" / 70 x 80 x 268 mm | | Weight | 4.9 lb / 2.2 kg | | | | Package Weight | 6.3 lb | | Box Dimensions (LxWxH) | 21.0 x 8.0 x 6.4" |
