User Manual for Bosch UML-223-90 21.5" HD LED Monitor Click to enlarge the picture
Contents of the user manual for the Bosch UML-223-90 21.5" HD LED Monitor
- Product category: Surveillance Monitors Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Surveillance Monitors
|
User manual for the Bosch UML-223-90 21.5" HD LED Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|

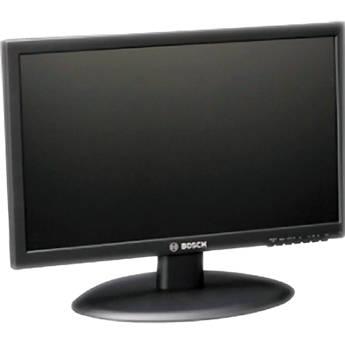

Product description The Bosch UML-223-90 21.5” HD LED Monitor offers HD resolution up to 1080p and sharp color reproduction. This monitor is suitable for use with, DVRs, and analog video and PC applications. It has a color LED flat-screen panel and a 21.5” (54.6cm) viewable picture area.Moreover, the UML-223-90 Monitor features a wide range of horizontal and vertical viewing angles that provide comfortable, clear viewing whether you place it on a desktop or mount it to a wall or a ceiling. This monitor features advanced gamma curve correction and enhanced color temperature calibration that aid in delivering crisp, clear pictures. - Supports up to 1920 x 1080 full HD resolution
- Supports HDMI, DVI, and VGA inputs
- High contrast ratio of 1,000:1
- LED backlight panel for higher luminance and low power consumption
- Vibration and shock resistant
In the Box Bosch UML-223-90 21.5" HD LED Monitor Monitor Stand 2 x FS4 x 12 Screw for Monitor Stand 2 x Power Cord, 3-Wire with Grounded Plug, 6' (1.8m) (One with a U.S Plug Type and One with a European Continental Plug Type) Power Adapter 6' (1.8m) DVI-D to DVI-D Cable 6' (1.8m) VGA to VGA (D-Sub) Cable 6' (1.8m) Stereo Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch UML-223-90 21.5" HD LED Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch UML-223-90 Specs | | | Rated Voltage | 12 VDC, 3.5 A | | Power Adapter | 120 / 230 VAC, 50 / 60 Hz | | Voltage Range | 100 to 240 VAC, 50 / 60 Hz | | Frequency | Horizontal: 31 to 75 kHz
Vertical: 50 to 75 Hz | | Power | On: 42 W
Active Off: 0.5 W | | | | Sync Format | PAL / NTSC | | LCD Panel | LED | | Viewable Area | 21.53" (54.68 cm) | | Active Display Size (H × V) | 18.80 x 10.60" (476.64 x 268.11 mm) | | Pixel Pitch (HxV) | 0.009 x 0.009" (0.248 x 0.248 mm) | | Resolution | 1920 x 1080 Bosch monitors follow the ISO 13406-2 Class II standard. | | Aspect Ratio | 16:9 | | Display Colors | 16.7 million | | Response Time | 5 ms (typical) | | Panel Life | 30,000 hours | | | | Luminance | 250 cd/m2 (typical) | | Contrast Ratio | 1,000:1 (typical) | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | | | VGA | RGB PC: 0.7 Vpp (0.5 to 1 Vrms) | | VGA Input Resolution | 640 x 480 (60 Hz)
720 x 400 (70 Hz)
1024 x 768 (60 Hz)
1280 x 768 (60 Hz)
1360 x 768 (60 Hz)
1440 x 900 (60 Hz)
1680 x 1050 (60 Hz)
1920 x 1080 (60 Hz) | | Input | DVI / HDMi:
480i (60 Hz)
576i (50 Hz)
480p (60 Hz)
576p (50 Hz)
720p (50 / 60 Hz)
1080i (50 / 60 Hz)
1080p (24 / 25 / 30 / 50 / 60 Hz)
640 x 480 (60 Hz)
720 x 400 (70 Hz)
800 x 600 (60 Hz)
1024 x 768 (60 Hz)
1280 x 768 (60 Hz)
1360 x 768 (60 Hz)
1440 x 900 (60 Hz)
1680 x 1050 (60 Hz)
1920 x 1080 (60 Hz) | | | | Control Panel | Push buttons | | Source | Selects: HDMI, DVI-D, and VGA | | Menu Display | Selects OSD (On-Screen Display), up cursor, down cursor / auto adjust, left cursor, and right cursor | | Power | On / Off | | Lock Configuration | Multiple push-button combination | | Video Mode | Input Source, Screen, OSD, Utility | | LED | Power On, standby (blue)
Power Off (LED Off) | | Connectors | Digital: 1 x DVI-D input
HDMI: 1 x input
VGA: 1 x RGB 15-pin D-sub input | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | 32 to 122°F (0 to 50°C) | | Relative Humidity | 0 to 90% | | | | Certification | Canada: cUL
Europe: EN60950, CE declaration of conformity, CB scheme
USA: UL60950 | | Emission | EN55022 class B and FCC part 15 class B | | Immunity | EN50130-4 (CE) | | | | Cabinet | Material: SECC | | Mount | Wall mounting compatible with standard bracket or desktop mounting with included stand | | VESA Compatibility | 100 x 100 mm | | Dimensions (W x H x D) | 20.26 x 12.20 x 1.77" (514.54 x 310.00 x 45.11 mm)
With Stand: 20.26 x 14.57 x 7.16" (514.54 x 370.00 x 182.00 mm) | | Weight | 7.9 lb (3.6 kg) | | | | Package Weight | 11.8 lb | | Box Dimensions (LxWxH) | 22.6 x 16.3 x 5.1" |
