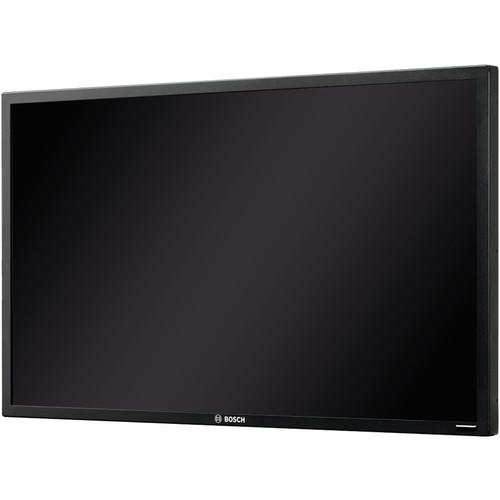

User Manual for Bosch UML-324-90 32" 1080p LED Monitor Click to enlarge the picture
Contents of the user manual for the Bosch UML-324-90 32" 1080p LED Monitor
- Product category: Surveillance Monitors Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Surveillance Monitors
|
User manual for the Bosch UML-324-90 32" 1080p LED Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description The 32" UML-324-90 1080p LED Monitor from Bosch supports up to 1920 x 1080 video at 60 Hz. It features an aspect ratio of 16:9 and supports 16.7 million display colors. It has a 500 cd/m2 luminance with a contrast ratio of 3000:1 and a 178° horizontal/vertical viewing angle. This monitor is compliant with 200 x 200mm and 400 x 200mm VESA mounting. It features DisplayPort, HDMI, DVI, and VGA inputs. It has an audio input and supports audio output with two 2W built-in speakers. Power cords, desktop stands, mounting screws, a HDMI cable, a VGA cable, a DisplayPort cable, a DisplayPort converter, an audio input cable, a remote control, and two AAA batteries are included. - Anti-image retention prevents image sticking or image burning that may occur in situations of displaying static scenes over a long period
- The monitor automatically focuses on setting the correct color, temperature, and gamma curve settings to deliver high picture quality
- Industrial grade panel suitable for 24/7 usage
- The firmware of the monitor can be upgraded by using the USB port
- Supports Display Power Management Signaling (DPMS) for power saving
- Supports High-bandwidth Digital Content Protection (HDCP) to allow playback off HDCP encrypted content
- SECC steel metal housing for robustness, heat dissipation, and shielding
- Complies with voltage dip immunity standards
- Easy-to-use controls with remote and onscreen menu display
UPC: 800549887830 In the Box Bosch UML-324-90 32" 1080p LED Monitor 3-Wire Grounded Plug Power Cord (US) 3-Wire Grounded Plug Power Cord (European Continental) Desktop Stand (Left Side) Desktop Stand (Right Side) 6 x Mounting Screws HDMI Cable VGA Cable DisplayPort Cable DisplayPort to mini DisplayPort Converter Audio Input Cable Remote Control 2 x AAA Battery Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch UML-324-90 32" 1080p LED Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBosch UML-324-90 Specs | | | Safety Certification | Canada: cUL60950-1
Europe: EN60950-1, CE Declaration of Conformity, CB Scheme
USA: UL60950-1 | | Electromagnetic Compatibility | Emission: EN55032: 2015 Class B, FCC Part 15 Class B
Immunity: EN55024: 2015, EN50130-4: 2014 | | Environmental | Vibration and Shock
Level 7.1 Energy Star Certificate | | Display | ISO 13406-2 Class II | | | | Voltage Range | 100-240 VAC, 50/60 Hz | | Power Consumption | On: <60 w
Standby: <0.5 W | | | | LCD Panel | LED | | Viewable Area | Picture Area: 31.5" / 80.01 cm | | Active Display Area | 27.5 x 15.5" / 69.84 x 39.29 cm | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Display Colors | 16.7 Million | | Response Time | 12 ms (Typical) | | Backlight | 50,000 Hours | | Inputs | 1 x DisplayPort
1 x HDMI Port
1 x DVI Port
1 x VGA Port | | USB | 1 x USB Port | | | | Input | 3.5 mm Stereo Jack | | Output | 2 x 2 W Built-In Speakers | | | | Luminance | 500 cd/m2 (Typical) | | Contrast Ratio | 3000:1 (Typical) | | Viewing Angle | Horizontal/Vertical: 178°, Typical | | | | Resolutions Supported | 640 x 400 at 85 Hz, 640 x 480 at 60 Hz, 800 x 600 at 60 Hz, 1024 x 768 at 60 Hz, 1152 x 864 at 75 Hz, 1280 x 960 at 60 Hz, 1280 x 1024 at 60 Hz, 1360 x 768 at 60 Hz, 1440 x 1050 at 60 Hz, 1440 x 900 at 60 Hz, 1600 x 1200 at 60 Hz, 1680 x 1050 at 60 Hz, 1920 x 1080 at 60 Hz | | | | Cabinet Construction | SECC | | Finish | RAL 9017 Traffic Black | | Mount | Wall Mounting Compatible with Standard Bracket | | VESA Mounting | Compliance: 7.87 x 7.87" / 200 x 200 mm
15.75 x 7.87" / 400 x 200 mm | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | 32 to 122°F / 0 to 50°C | | Humidity | 0-90% Relative | | | | Dimensions | 29.05 x 16.99 x 2.81" / 73.79 x 43.15 x 7.15 cm | | Weight | 25.6 lb / 11.6 kg |
