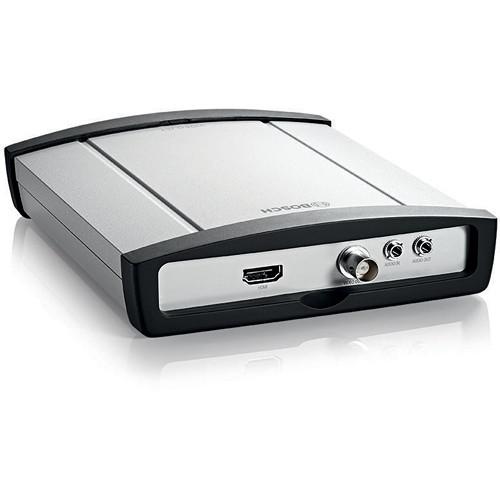

User Manual for Bosch VIDEOJET decoder 3000 Click to enlarge the picture
Contents of the user manual for the Bosch VIDEOJET decoder 3000
- Product category: Video Encoders & Decoders Bosch
- Brand: Bosch
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bosch Video Encoders & Decoders
|
User manual for the Bosch VIDEOJET decoder 3000 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bosch product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bosch user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bosch product will considerably shorten its lifespan!
|
Product description Decode and display full HD video from your IP camera network with the VIDEOJET decoder 3000 from Bosch. Utilizing the highly efficient H.264 format, users will be able to display clear imagery at up to Full HD 1920 x 1080p at 30 fps or HD 1280 x 720p at a fast 60 fps in single view. The decoder can also handle multiple SD sources, up to 4 in quad view mode, that enables users to view multiple angles simultaneously. Along with this, it has full HDMI and composite BNC video output ports for compatibility with other systems or just standard HDTVs.
Furthering the advantages of this system are a single channel of bi-directional audio via two 3.5mm stereo jacks. This allows users to both monitor audio from the source and send messages out. Tying in with this are 4 alarm inputs and a relay output for a reliable notification system. The main setup uses a fast RJ-45 Ethernet port and it runs on 12 VDC power via an external unit. Also, it features multiple security levels and can be adjusted via remote management systems. Keyboards are supported as well for lightning fast adjustments to settings. In the Box Bosch VIDEOJET decoder 3000 2 x Terminal Block (6-Pin, 8-Pin) 4 x Self-Adhesive Elastic Bumpers Wall-Mounting Panel 2 x Screws 2 x Wall Plugs Power Supply Unit with 3 Primary Adapters (EU, US, UK) Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Bosch VIDEOJET decoder 3000 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Bosch VIDEOJET decoder 3000 can be downloaded in PDF format at the link stated below.
Technical parametersBosch VJD-3000 Specs | | | Standards | H.264 High Profile, H.264 Main Profile, H.264 Baseline Profile (ISO/IEC 14496‑10)
MJPEG, JPEG | | Data Rates | 9.6 kbps to 10 Mbps | | Delay | 300 ms max | | Frame Rate | 1-25/30 (PAL/NTSC)
1-50/60 (HDMI) | | | | Compression | G.711
L16 (reception only) | | Frequency | G.711: 300 Hz to 3.4 kHz
L16: 300 Hz to 6.4 kHz | | Data Rate | G.711: 80 kbps at 8 kHz sampling rate
L16: 640 kbps at 16 kHz sampling rate | | Signal-to-Noise Ratio | >50 dB | | | | Video Output | 1 x HDMI (Type A)
1 x BNC (analog composite, 75 ohms) | | Video Modes | PAL, 704 x 576i at 50 Hz
NTSC, 704 x 480i at 59.97 Hz
960H25, 960 x 576i at 50 Hz
960H30, 960 x 480i at 59.97 Hz
720p50, 1280 x 720p at 50 Hz
720p60, 1280 x 720p at 60 Hz
1080i50, 1920 x 1080i at 50 Hz
1080i60, 1920 x 1080i at 60 Hz
1080p25, 1920 x 1080p at 25 Hz
1080p30, 1920 x 1080p at 30 Hz | | Cable Length | 98' / 30 m max | | Audio Connections | 1 x 3.5 mm stereo input
1 x 3.5 mm stereo output | | Line In | 9 kOhms typical, 5.5 Vpp max | | Line Out | 3.0 Vpp at 10 kOhms / 1.7 Vpp at 16 ohms typical | | Alarm | 4 x Clamp (non-isolated closing contact) input, 10 ohms max
1 x Clamp output, 30 Vpp (SLV), 200 mA | | COM Ports | Clamp, RS-232/422/485 bi-directional | | | | Connection | RJ-45 Ethernet (10/100 Base-T, auto-sensing, half/full duplex) | | Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, digest authentication | | Encryption | TLS 1.0, SSL, DES, 3DES, AES | | | | Software Update | Flash ROM< remote programmable | | Configuration | Configuration Manager
Web browser | | | | Power Requirements | 12 VDC, 0.75 A via external unit | | Power Consumption | 9 W | | Operating Conditions | Decoder
Temperature: 32 to 122°F / 0 to 50°C
Humidity: 0 to 90%, non-condensing
Power Supply
Temperature: 32 to 104°F / 0 to 40°C
Humidity: 20 to 80%, non-condensing | | Thermal Value | 31 BTU/h max | | Dimensions | 1.5 x 5.7 x 7.0" / 38 x 146 x 178 mm | | Weight | 1.3 lb / 0.6 kg | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 12.1 x 8.4 x 3.0" |
